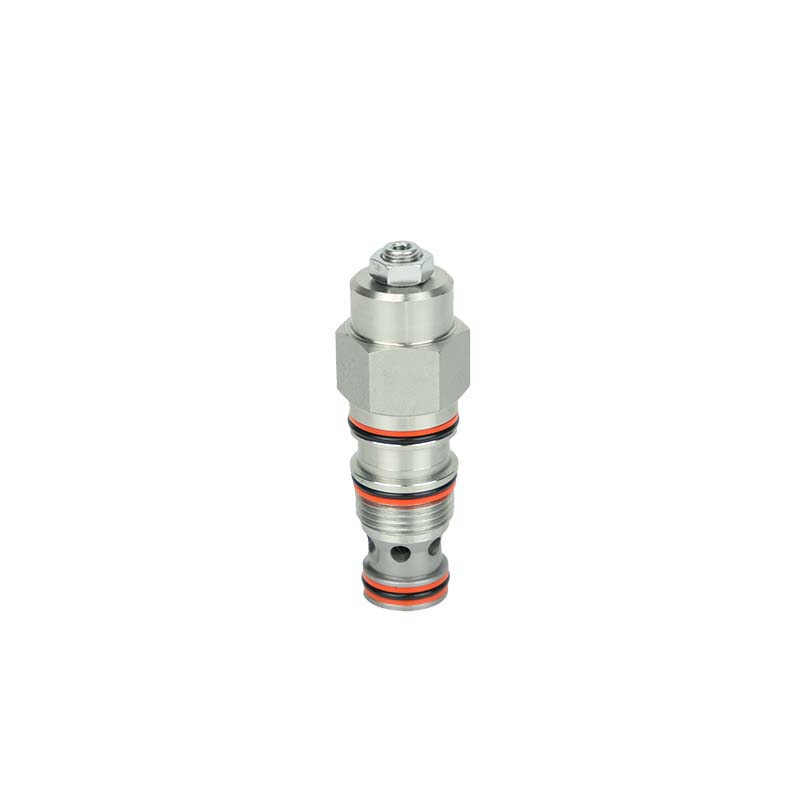

Troubleshooting and Repair Methods for Hydraulic Cartridge Valves

Hydraulic cartridge valves are critical components widely used in hydraulic systems. During operation, these valves may encounter various issues, such as oil leaks, valve sticking, and other forms of leakage. These problems can not only cause system failure but may also lead to serious consequences. Therefore, it is crucial to promptly troubleshoot and repair hydraulic cartridge valves.

Troubleshooting

When a hydraulic cartridge valve malfunctions, the first step is to perform troubleshooting. Based on the specific symptoms of the malfunction, the cause can be analyzed, and appropriate repair measures can be taken.

Repair Methods

The repair of hydraulic threaded cartridge valves can be divided into several steps: cleaning, inspection, component replacement, installation, and commissioning.

(1) Cleaning: Disassemble the hydraulic cartridge valve, clean and inspect all components to better understand their condition and identify any issues.

(2) Inspection: Inspect all components, particularly seals, springs, and valve spools, to ensure their integrity and reliability.

(3) Component Replacement: Replace all worn, damaged, or defective components, including seals, springs, and valve spools.

(4) Installation: Reassemble the cleaned components into the hydraulic cartridge valve, ensuring all parts are installed correctly.

(5) Commissioning: Commission the repaired hydraulic cartridge valve to ensure it operates normally.

Maintenance Methods

To extend the service life of hydraulic cartridge valves, regular maintenance is essential. The following are some routine maintenance methods for hydraulic cartridge valves.

(1) Keep Dry and Clean: Hydraulic cartridge valves should be kept dry and clean to prevent oil residue and contaminants from entering the valve body.

(2) Replace Hydraulic Fluid Regularly: The quality of hydraulic fluid plays a crucial role in the operation of the hydraulic system. Replace the hydraulic fluid regularly and keep it clean and fresh.

(3) Perform Regular Inspections: Regularly inspect the hydraulic cartridge valve and all components in the system to ensure they are functioning properly.
