Dual Pilot Operated Check Valve

Dual Pilot Operated Check Valve are tubular-mounted hydraulic valves designed to provide bidirectional load holding and controlled hydraulic flow release. Each check valve allows free flow in one direction while blocking reverse flow until pilot pressure is applied. The tubular connection design enables easy installation in hydraulic pipelines, making these valves suitable for hydraulic cylinders, lifting equipment, and load holding circuits requiring secure bidirectional control.

Contact Us Ningbo Stars Hydraulic Co., Ltd.
PREV：Hydraulic Cartridge Shuttle ValveNEXT：Hydraulic Pilot Operated Cartridge Check Valve
  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Hydraulic cylinder load holding systems
·Hydraulic lifting equipment
·Mobile hydraulic machinery
·Construction and mining equipment
·Agricultural machinery
·Hydraulic power units (HPUs)
·Industrial hydraulic control systems
·Hydraulic pipeline installations

Core Functions

Bidirectional Load Holding
The Dual Pilot Operated Check Valve incorporate two pilot-operated check valves in one assembly, allowing secure load holding in both hydraulic lines while preventing unintended actuator movement.

High Pressure Performance
Designed for demanding hydraulic applications, the valve supports a maximum operating pressure of 250 bar, making it suitable for lifting, clamping, and cylinder locking systems.

Low Internal Leakage
The poppet sealing structure limits internal leakage to a maximum of 3 drops per minute at 250 bar, helping maintain hydraulic pressure and improve load holding reliability.

Balanced Pilot Control
The dual pilot-operated check valve features a pilot ratio of 2.5:1, providing stable pilot release characteristics for smooth and controlled bidirectional operation.

Reliable Operation in Various Environments
The tubular connection hydraulic valve operates within a temperature range of -30°C to +120°C. Hydraulic oil filtration of 20 μm or better is recommended to help maintain sealing performance and extend service life.

The performance data above are based on Model DPC-08.

Technical Specifications

Parameter

Specification

Product Name

Dual Pilot Operated Check Valve

Valve Type

Dual Pilot-Operated Hydraulic Check Valve

Representative Models

DPC-08, DPC-10

Maximum Operating Pressure

250 bar*

Flow Capacity

See Pressure Drop vs. Flow Curve

Internal Leakage

Max. 3 drops/min at 250 bar*

Pilot Ratio

2.5:1*

Operating Temperature

-30°C to +120°C*

Recommended Oil Filtration

20 μm or better*

Cavity

08-4

*Performance data are based on Model DPC-08. Specifications may vary depending on the selected model.

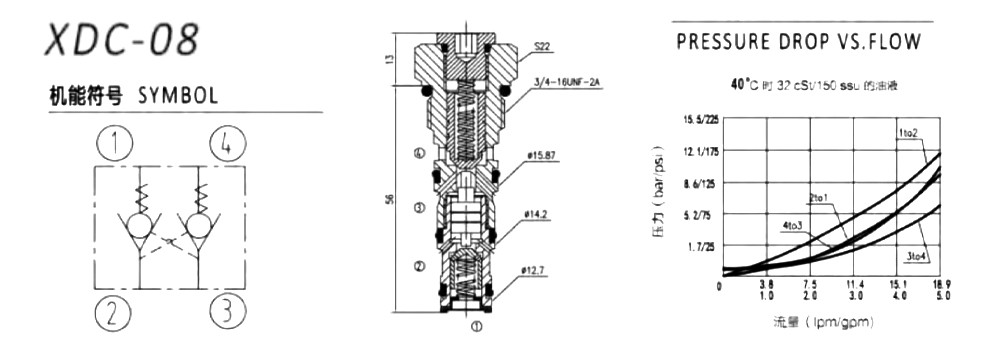

XDC-08

Function Choice Part Number Cavity Flow(Ipm) Pressure(bar) Page
kpyjnqzg1787049473 DPC-08 08-4 18  350  B-21
DPC-10 10-4 30  350  B-22
OEM / ODM Customization

We provide OEM and ODM services for dual pilot-operated hydraulic check valves to meet different hydraulic system requirements.
·Tubular connection customization
·Pilot ratio selection
·Seal material options for different hydraulic fluids
·Product marking and private labeling
·Customized packaging
·Hydraulic circuit integration support
·Technical assistance for model selection and equivalent replacement

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.
FAQ

1. What are dual pilot-operated check valves used for?
Dual Pilot Operated Check Valve are used to provide bidirectional load holding for hydraulic cylinders and actuators. They prevent unintended movement while allowing controlled release through pilot pressure.

2. Which models are available?
Representative models include DPC-08 and DPC-10. The appropriate model depends on the hydraulic system's flow, pressure, and connection requirements.

3. Are all models supplied with the same technical specifications?
No. The technical data shown on this page are based on Model DPC-08. Pressure ratings, flow characteristics, pilot ratio, and other specifications may vary depending on the selected model.

4. What pilot ratio does this valve use?
The representative model DPC-08 features a pilot ratio of 2.5:1, providing stable pilot release performance for bidirectional hydraulic load control.

5. How can I choose the right pilot-operated check valves?
Model selection depends on operating pressure, flow rate, connection type, pilot ratio, installation method, and hydraulic circuit design. Our engineering team can recommend the appropriate Dual Pilot-Operated Check Valves Tubular Connection Bidirectional Control model based on your application requirements.
