Home / Products / Cartridge Valves / Solenoid Valves / 3-Way 2-Position Hydraulic Solenoid Cartridge Valve

  • 3-Way 2-Position Hydraulic Solenoid Cartridge Valve
  • 3-Way 2-Position Hydraulic Solenoid Cartridge Valve
  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Hydraulic power units
·Industrial hydraulic control systems
·Mobile hydraulic equipment
·Hydraulic manifold blocks
·Machine tools and automation equipment
·Construction and agricultural machinery
·Auxiliary hydraulic circuits

Core Functions

Direct-Acting Spool Control
The 3-way solenoid valve uses a direct-acting spool structure to switch hydraulic flow paths between different ports. It provides fast response and reliable switching performance for hydraulic systems requiring compact flow control solutions.

High Pressure Hydraulic Operation
The valve is designed for high-pressure hydraulic applications. The representative model XSV-08-31 supports a maximum operating pressure of 210 bar, making it suitable for hydraulic circuits requiring stable flow switching under working pressure.

Controlled Internal Leakage
The spool structure provides consistent hydraulic control performance. The XSV-08-31 model has an internal leakage of maximum 80 cc/min at 210 bar, helping maintain stable hydraulic system operation.

Stable Coil Performance
The solenoid coil is designed for continuous operation within 90%–110% of rated voltage. At 210 bar, the minimum pull-in voltage is 90% of the rated voltage, supporting reliable valve actuation under normal voltage variations.

Wide Temperature Compatibility
The valve supports an operating temperature range of -30°C to +120°C. A hydraulic oil filtration level of 20μm or better is recommended to help reduce contamination-related failures.

The performance data above are based on Model XSV-08-31.

Technical Specifications

Parameter

Specification

Product Name

3-Way 2-Position Hydraulic Solenoid Cartridge Valve

Actuation

Electromagnetic Solenoid

Installation

Threaded Hydraulic Cartridge

Representative Models

XSV-08-31, XSV-10-31, XSV-08-35, XSV-08-34, XSV-10-34, XSV-08-33, XSV-10-33

Maximum Operating Pressure

210 bar*

Flow Capacity

See Pressure Drop vs. Flow Curve

Internal Leakage

Max. 80 cc/min at 210 bar*

Operating Temperature

-30°C to +120°C*

Coil Voltage Range

Continuous operation at 90%–110% of rated voltage*

Minimum Pull-in Voltage

90% of rated voltage at 210 bar*

Recommended Oil Filtration

20 μm or better*

Cavity

08-03

*Performance data are based on Model XSV-08-31. Specifications may vary depending on the selected model.

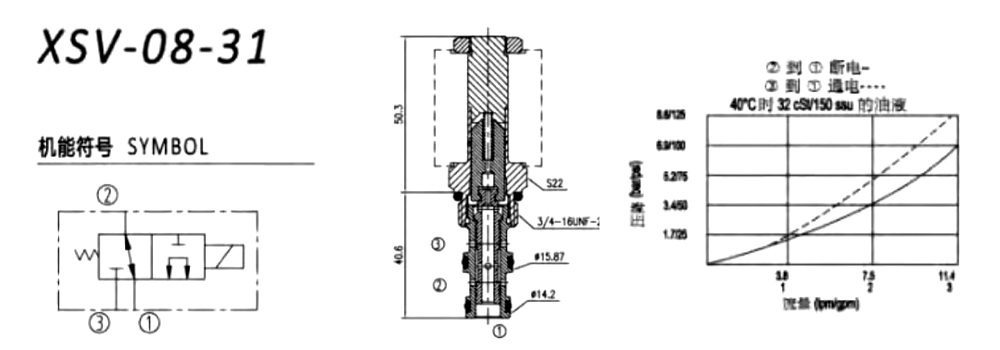

XSV-08-31

Function Choice Part Number Cavity Flow(Ipm) Pressure(bar) Page
bkakicql1787045138 XSV-08-31 08-3 11  210  A-51
XSV-10-31 10-3 22  210  A-52
hmpjqxwj1787045143 XSV-08-35 08-3 11  210  A-53
wvsxqqvo1787045148 XSV-08-34 08-3 11  210  A-54
XSV-10-34 10-3 22  210  A-55
rjzjhhtt1787045156 XSV-08-33 08-3 11  210  A-56
XSV-10-33 10-3 22  210  A-57
OEM / ODM Customization

We provide OEM and ODM solutions for hydraulic equipment manufacturers, distributors, and system integrators.
·Custom coil voltage options
·Connector and wiring customization
·Seal material selection for different hydraulic fluids
·Customized marking and labeling
·Packaging customization
·Hydraulic manifold integration support
·Technical support for valve replacement and model selection

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a 3-Way 2-Position Hydraulic Solenoid Cartridge Valve used for?
It is mainly used to switch hydraulic oil flow paths between three ports through electromagnetic control, providing compact flow direction control in hydraulic systems.

2. What is the difference between the available models?
Models such as XSV-08-31, XSV-10-31, XSV-08-35, XSV-08-34, XSV-10-34, XSV-08-33, and XSV-10-33 may differ in cavity size, port configuration, and performance specifications. Selection depends on the hydraulic system requirements.

3. Are the technical parameters the same for all models?
No. The technical data shown on this page are based on Model XSV-08-31. Other models may have different pressure, flow, leakage, and configuration parameters.

4. What filtration level is recommended for this hydraulic valve?
A hydraulic oil filtration level of 20 μm or better is recommended to help maintain stable valve operation and reduce contamination effects.

5. Can you provide customized hydraulic solenoid valves?
Yes. OEM and ODM customization is available, including coil options, seals, markings, packaging, and application-specific requirements.
