Home / Products / Cartridge Valves / Directional Valves / Hydraulic Pilot Operated Cartridge Check Valve

  • Hydraulic Pilot Operated Cartridge Check Valve
  • Hydraulic Pilot Operated Cartridge Check Valve
  • Hydraulic Pilot Operated Cartridge Check Valve
  • Hydraulic Pilot Operated Cartridge Check Valve
  • Hydraulic Pilot Operated Cartridge Check Valve
  • Hydraulic Pilot Operated Cartridge Check Valve
  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Hydraulic cylinder load holding
·Hydraulic locking circuits
·Hydraulic power units (HPUs)
·Hydraulic manifold blocks
·Construction and mining equipment
·Agricultural machinery
·Mobile hydraulic systems
·Industrial hydraulic control systems

Core Functions

Secure Load Holding
The Pilot Operated Check Valves provide reliable load holding by allowing free flow in one direction while preventing reverse flow until sufficient pilot pressure is applied. This helps improve hydraulic safety and prevents unintended actuator movement.

High Pressure Performance
Designed for demanding hydraulic applications, the valve supports a maximum operating pressure of 250 bar, making it suitable for hydraulic cylinders, lifting systems, and other load control circuits.

Low Internal Leakage
The poppet sealing structure limits internal leakage to a maximum of 3 drops per minute at 250 bar, helping maintain system pressure and improve load holding performance.

Optimized Pilot Control
The hydraulic cartridge check valve features a pilot ratio of 2.7:1, providing balanced pilot release characteristics for stable and reliable hydraulic operation.

Wide Operating Temperature Range
The pilot operated hydraulic check valve operates within a temperature range of -30°C to +120°C. For reliable long-term performance, hydraulic oil filtration of 20 μm or better is recommended.

The performance data above are based on Model XPC-08-30B.

Technical Specifications

Parameter

Specification

Product Name

Hydraulic Pilot Operated Cartridge Check Valve

Installation

Threaded Hydraulic Cartridge Valve

Representative Models

XPC-08-30B, XPC-08-30P, XPC-10-30P, XCKBB-XCN, XCKCB-XCN, XCKEB-XCN

Maximum Operating Pressure

250 bar*

Flow Capacity

See Pressure Drop vs. Flow Curve

Internal Leakage

Max. 3 drops/min at 250 bar*

Pilot Ratio

2.7:1*

Operating Temperature

-30°C to +120°C*

Recommended Oil Filtration

20 μm or better*

Cavity

08-3

*Performance data are based on Model XPC-08-30B. Specifications may vary depending on the selected model.

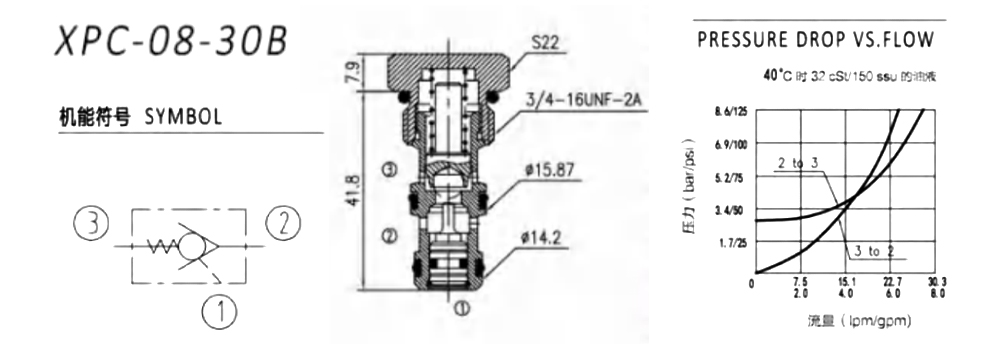

XPC-08-30B

Function Choice Part Number Cavity Flow(Ipm) Pressure(bar) Page
qnzqibiz1787049093 XPC-08-30B 08-3 18  250  B-15
XPC-08-30P 08-3 18  250  B-16
XPC-10-30P 10-3 22  250  B-17
thaefmye1787049106 XCKBB-XCN  T-163A 30  350  B-18
XCKCB-XCN T-11A 60  350  B-19
XCKEB-XCN T-2A 120  350  B-20
OEM / ODM Customization

We provide OEM and ODM services for pilot operated hydraulic cartridge valves used in industrial and mobile hydraulic systems.
·Thread and cavity customization
·Pilot ratio selection for specific applications
·Seal material options for different hydraulic fluids
·Custom laser marking and labeling
·Packaging customization
·Hydraulic manifold integration support
·Technical assistance for model selection and equivalent replacement

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a pilot operated check valve used for?
A pilot operated check valve is used to lock hydraulic loads while allowing controlled release through pilot pressure. It is commonly applied in hydraulic cylinders, lifting equipment, and load holding circuits.

2. Which models are available in this series?
Representative models include XPC-08-30B, XPC-08-30P, XPC-10-30P, XCKBB-XCN, XCKCB-XCN, and XCKEB-XCN. Additional models or configurations may be available depending on application requirements.

3. Are all models supplied with the same technical specifications?
No. The technical data shown on this page are based on Model XPC-08-30B. Pressure ratings, pilot ratio, cavity dimensions, and flow characteristics may vary depending on the selected model.

4. What is the pilot ratio of this valve?
The representative model XPC-08-30B has a pilot ratio of 2.7:1, providing stable pilot release performance for hydraulic load control applications.

5. How can I select the right Hydraulic Pilot Operated Cartridge Check Valve model?
Model selection depends on operating pressure, pilot ratio, cavity size, flow requirements, hydraulic circuit design, and installation conditions. Our engineering team can recommend the appropriate valve based on your application requirements.
