PRODUCT DETAILS
FAQ

Specific Applications

·Hydraulic load holding circuits
·Hydraulic cylinder locking systems
·Hydraulic power units (HPUs)
·Hydraulic manifold blocks
·Construction and mining equipment
·Agricultural machinery
·Industrial hydraulic control systems
·Mobile hydraulic equipment

Core Functions

Reliable One-Way Flow Control
The Check Valves Hydraulic Cartridge Type allows hydraulic oil to flow in one direction while automatically blocking reverse flow. This helps maintain system pressure and prevents unwanted actuator movement.

High Pressure Performance
Designed for demanding hydraulic applications, the valve supports a maximum operating pressure of 350 bar, making it suitable for load holding and high-pressure hydraulic circuits.

Low Internal Leakage
The poppet sealing design minimizes internal leakage to a maximum of 3 drops per minute at 250 bar, helping improve load holding performance and hydraulic system efficiency.

Wide Operating Temperature Range
The hydraulic cartridge check valve operates in temperatures from -30°C to +120°C, making it suitable for both indoor and outdoor hydraulic equipment.

Reduced Contamination Risk
For stable operation and extended service life, hydraulic oil filtration of 20 μm or better is recommended to reduce wear and maintain sealing performance.

The performance data above are based on Model XCV-08B-20.

Technical Specifications

Parameter	Specification
Product Name	Hydraulic Cartridge Check Valve
Valve Type	Directional Valves
Installation	Threaded Hydraulic Cartridge Valve
Representative Models	XICV-G1/4, XICV-G3/8, XCV-08B-20, XCV-10B-20, XCV-08P-20, XCV-10P-20, XCV-12P-20, XCV-16P-20, XCXJA-XCN, XCXHA-XCN, XCV-08P-21, XCV-10P-21, XCV-12P-21, XCV-16P-21, etc.
Maximum Operating Pressure	350 bar*
Flow Capacity	See Pressure Drop vs. Flow Curve
Internal Leakage	Max. 3 drops/min at 250 bar*
Operating Temperature	-30°C to +120°C*
Recommended Oil Filtration	20 μm or better*
Cavity	08-2

*Performance data are based on Model XCV-08B-20. Specifications may vary depending on the selected model.

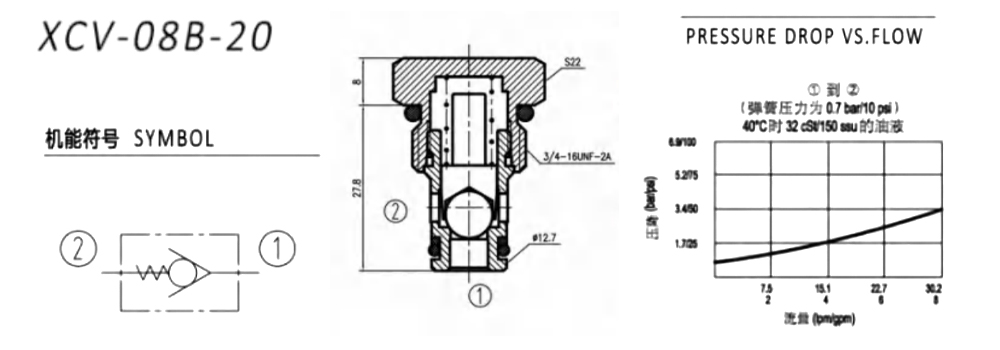

XCV-08B-20

Function Choice	Part Number	Cavity	Flow(Ipm)	Pressure(bar)	Page
	ICV-G1/4	08-2	20	350	B-1
	ICV-G3/8	08-2	40	350	B-2
	XCV-08B-20	08-2	30	350	B-3
	XCV-10B-20	10-2	50	350	B-4
	XCV-08P-20	10-2	30	350	B-5
	XCV-10P-20	12-2	50	350	B-6
	XCV-12P-20	12-2	120	350	B-7
	XCV-16P-20	16-2	220	350	B-8
	XCXJA-XCN	16-2	320	350	B-9
	XCXHA-XCN	08-2	640	350	B-10
	XCV-08P-21	08-2	30	350	B-11
	XCV-10P-21	10-2	50	350	B-12
	XCV-12P-21	10-2	120	350	B-13
	XCV-16P-21	12-2	220	350	B-14

OEM / ODM Customization

We provide OEM and ODM services for hydraulic cartridge check valves used in industrial and mobile hydraulic systems.
·Thread and cavity customization
·Seal material options for different hydraulic fluids
·Opening pressure customization
·Product marking and laser engraving
·Customized packaging
·Hydraulic manifold matching support
·Technical assistance for model selection and replacement

Purchasing Information

Item	Details
MOQ	Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.
Lead Time	Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.
Payment Terms	30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.
Trade Terms	FOB Ningbo by default. CIF quotations are available upon request.
Sample Policy	Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.
OEM / ODM	Logo engraving, customized packaging, and product customization are supported.
Quality Assurance	Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a hydraulic cartridge check valve used for?
A hydraulic cartridge check valve is used to allow oil flow in one direction while preventing reverse flow. It is commonly applied in load holding, cylinder locking, pressure retention, and hydraulic safety circuits.

2. Which models are available in this series?
Representative models include XICV-G1/4, XICV-G3/8, XCV-08B-20, XCV-10B-20, XCV-08P-20, XCV-10P-20, XCV-12P-20, XCV-16P-20, XCXJA-XCN, XCXHA-XCN, XCV-08P-21, XCV-10P-21, XCV-12P-21, and XCV-16P-21. Additional models are available for different hydraulic applications.

3. Are all models supplied with the same technical specifications?
No. The technical data shown on this page are based on Model XCV-08B-20. Pressure ratings, cavity sizes, opening pressure, and flow characteristics may vary depending on the selected model.

4. What oil cleanliness is recommended?
A hydraulic oil filtration level of 20 μm or better is recommended to help maintain sealing performance and extend valve service life.

5. How can I select the right Hydraulic Cartridge Check Valve model?
Selection depends on factors such as operating pressure, flow requirement, cavity size, thread type, cracking pressure, and hydraulic circuit design. Our engineering team can recommend a suitable model based on your application requirements.

Q: How soon can I get a reply after sending an inquiry?

We value every inquiry greatly. We will reply to you within 12 working hours upon receipt of your inquiry.

Q: What main products do you supply?

We specialize in manufacturing various hydraulic valves,

Q: What industries are your products mainly applied to?

Our hydraulic valves serve agriculture, industry, construction, transportation, as well as land, sea and air defense machinery equipment.

Q: What about your production capacity?

We own mature independent R&D and manufacturing systems, continuously upgrade valve products to satisfy surging domestic and overseas market demands.

Q: What is your company scale and staffing structure?

Founded in 2001, we employ professional technical engineers including Taiwanese technicians and a full team covering R&D, production, quality control and after-sales service.
