Direct Acting Spool Sequence Valve

Direct Acting Spool Sequence Valve are threaded hydraulic cartridge valves designed to control the operating sequence of hydraulic circuits. Featuring a direct-acting spool design with internal pilot control and an internally drained spring chamber, these valves open automatically when the primary circuit reaches a preset pressure, allowing oil to flow to a secondary circuit. They are commonly used where multiple hydraulic functions must operate in a predetermined order.

Contact Us Ningbo Stars Hydraulic Co., Ltd.
PREV：No previous articleNEXT：Pilot Operated Spool Pressure Reducing Valve
  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Secondary hydraulic circuit control
·Hydraulic power units (HPUs)
·Hydraulic manifold blocks
·Construction and mining equipment
·Agricultural machinery
·Industrial automation equipment
·Machine tools
·Multi-actuator hydraulic systems

Core Functions

Automatic Sequential Operation
The Sequence Valves remain closed until the primary hydraulic circuit reaches the preset pressure. Once the pressure setting is achieved, the valve opens automatically to supply oil to the secondary circuit, ensuring the required operating sequence.

Direct-Acting Spool Design
The direct-acting sequence valve features a spool-type structure with internal pilot control and an internally drained spring chamber, providing stable pressure response and reliable switching performance.

High Pressure Capability
Designed for industrial hydraulic applications, the valve supports a maximum operating pressure of 240 bar, making it suitable for pressure-controlled sequencing in hydraulic systems.

Stable Pressure Regulation
The hydraulic cartridge sequence valve has an internal leakage of up to 80 cc/min at 85% of the nominal pressure setting, providing predictable pressure control for secondary circuit activation.

Wide Operating Temperature Range
The valve operates within a temperature range of -30°C to +120°C. Hydraulic oil filtration of 20 μm or better is recommended to maintain stable spool movement and extend valve service life.

The performance data above are based on Model XPS-08.

Technical Specifications

Parameter

Specification

Product Name

Direct Acting Spool Sequence Valve

Installation

Threaded Hydraulic Cartridge Valve

Representative Models

XPS-08, XPS-10

Maximum Operating Pressure

240 bar*

Flow Capacity

See Pressure Drop vs. Flow Curve

Internal Leakage

Max. 80 cc/min at 85% of nominal pressure setting*

Operating Temperature

-30°C to +120°C*

Recommended Oil Filtration

20 μm or better*

Cavity

08-3

*Performance data are based on Model XPS-08. Specifications may vary depending on the selected model.

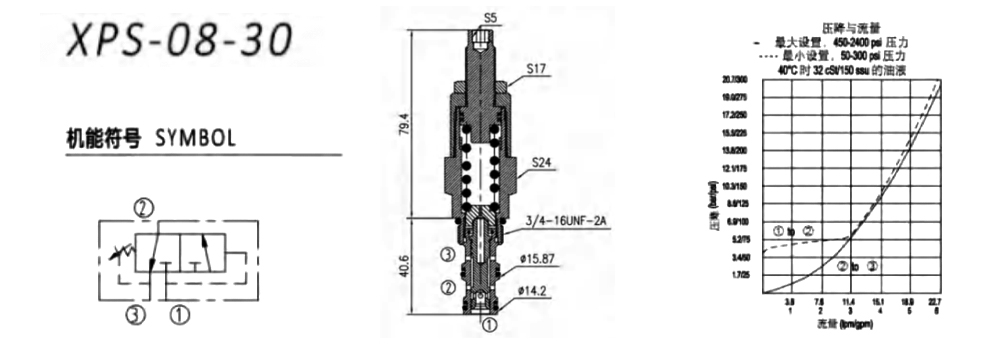

DirectActingSpoolSequenceValve

Function Choice Part Number Cavity Flow(Ipm) Pressure(bar) Page
DirectActingSpoolSequenceValve1 XPS-08 08-3 22  207  C-29
XPS-10 10-3 34  207  C-30
OEM / ODM Customization

We provide OEM and ODM services for hydraulic cartridge sequence valves to meet different hydraulic system requirements.
·Pressure setting customization
·Thread and cavity customization
·Seal material options for different hydraulic fluids
·Custom logo and laser marking
·Packaging customization
·Hydraulic manifold integration support
·Technical assistance for model selection and equivalent replacement

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.



FAQ

1. What is a hydraulic sequence valve used for?
A hydraulic sequence valve controls the operating order of multiple hydraulic circuits. It opens only after the primary circuit reaches a preset pressure, allowing oil to flow to a secondary circuit.

2. Which models are available in this series?
Representative models include XPS-08 and XPS-10. Different models are available to suit various hydraulic system capacities and installation requirements.

3. Are all models supplied with the same technical specifications?
No. The technical data shown on this page are based on Model XPS-08. Pressure ratings, flow characteristics, cavity dimensions, and pressure settings may vary depending on the selected model.

4. What oil cleanliness is recommended?
For reliable valve performance and longer service life, hydraulic oil filtration of 20 μm or better is recommended.

5. How can I choose the right Direct Acting Spool Sequence Valve?
Selection depends on operating pressure, required sequence pressure, flow rate, cavity size, hydraulic fluid, and circuit design. Our engineering team can recommend the appropriate Sequence Valves Direct Acting Spool Type model based on your application requirements.
