Specific Applications

·Hydraulic power units (HPUs)
·Hydraulic manifold blocks
·Industrial automation equipment
·Construction and mining machinery
·Agricultural equipment
·Machine tools
·Mobile hydraulic systems

Core Functions

Direct Hydraulic Directional Control
The 4-Way 2-Position Hydraulic Solenoid Cartridge Valve uses a direct-acting spool structure to switch oil flow between four hydraulic ports. It enables reliable directional control for cylinders, actuators, and other hydraulic components in compact hydraulic circuits.

High Pressure Operation
Designed for industrial hydraulic applications, the valve supports a maximum operating pressure of 210 bar, providing dependable performance in medium- and high-pressure hydraulic systems.

Controlled Internal Leakage
The spool design maintains stable hydraulic performance with an internal leakage of up to 80 cc/min at 210 bar, helping ensure consistent system operation during directional switching.

Stable Electrical Performance
The solenoid valve operates continuously within 90%–110% of the rated coil voltage. At 210 bar, the minimum pull-in voltage is 90% of the rated voltage, supporting reliable switching under normal voltage fluctuations.

Wide Operating Temperature Range
The 4-way hydraulic cartridge valve is suitable for operating temperatures from -30°C to +120°C. For long-term performance, hydraulic oil filtration of 20 μm or better is recommended.

The performance data above are based on Model XSV-08-40.

Technical Specifications

Parameter

Specification

Product Name

4-Way 2-Position Hydraulic Solenoid Cartridge Valve

Actuation

Electromagnetic Solenoid

Installation

Threaded Hydraulic Cartridge Valve

Representative Models

XSV-08-40, XSV-10-40, XSV-08-41, XSV-10-41

Maximum Operating Pressure

210 bar*

Flow Capacity

See Pressure Drop vs. Flow Curve

Internal Leakage

Max. 80 cc/min at 210 bar*

Operating Temperature

-30°C to +120°C*

Coil Voltage Range

Continuous operation at 90%–110% of rated voltage*

Minimum Pull-in Voltage

90% of rated voltage at 210 bar*

Recommended Oil Filtration

20 μm or better*

Cavity

08-4

*Performance data are based on Model XSV-08-40. Specifications may vary depending on the selected model.

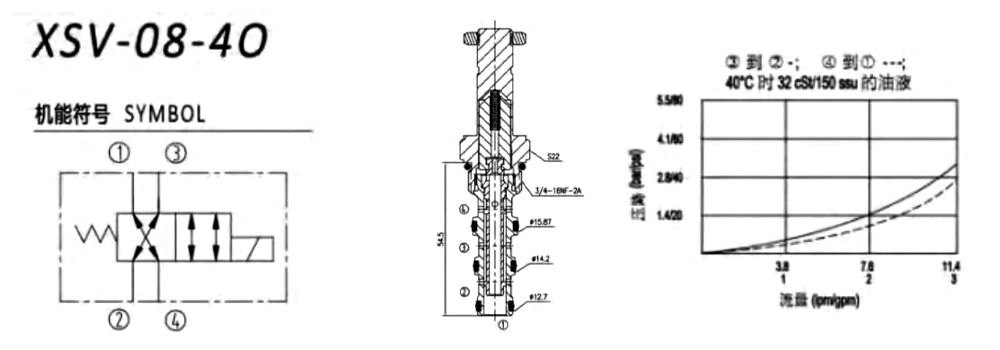

XSV-08-40

Function Choice Part Number Cavity Flow(Ipm) Pressure(bar) Page
jaxexptl1787046110 XSV-08-40 08-4 11  210  A-58
XSV-10-40 10-4 22  210  A-59
voawgrbv1787046116 XSV-08-41 08-4 11  210  A-60
XSV-10-41 10-4 22  210  A-61
OEM / ODM Customization

We provide OEM and ODM services for hydraulic valve manufacturers, distributors, and equipment builders.
·AC/DC coil voltage customization
·Connector and cable options
·Seal material selection for different hydraulic fluids
·Laser marking and private labeling
·Customized packaging
·Hydraulic manifold integration support
·Technical assistance for model selection and replacement

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a 4-Way 2-Position Hydraulic Solenoid Cartridge Valve used for?
A 2-Position 4-Way Solenoid Valve is used to control the flow direction of hydraulic oil between four ports. It is commonly applied to operate double-acting cylinders and other hydraulic actuators.

2. Which models are available?
Representative models include XSV-08-40, XSV-10-40, XSV-08-41, and XSV-10-41. Additional configurations may be available based on application requirements.

3. Are all models rated with the same specifications?
No. The technical data shown on this page are based on Model XSV-08-40. Pressure, flow characteristics, cavity dimensions, and other specifications may vary depending on the selected model.

4. What filtration level is recommended?
For reliable operation and longer service life, hydraulic oil filtration of 20 μm or better is recommended.

5. Can this hydraulic cartridge valve be customized?
Yes. We support OEM and ODM services, including coil voltage, connector type, sealing materials, product marking, packaging, and application-specific customization.
