  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Hydraulic motor control systems
·Hydraulic power units (HPUs)
·Construction and mining equipment
·Agricultural machinery
·Industrial automation equipment
·Hydraulic manifold blocks
·Mobile hydraulic systems

Core Functions

Precise Motor Flow Control
The 4-Way 3-Position Hydraulic Solenoid Cartridge Valve features a direct-acting motor spool design that controls hydraulic flow between four ports and three switching positions. It is suitable for hydraulic motor applications requiring directional control and stable neutral-position flow management.

High Pressure Capability
Designed for industrial hydraulic systems, the valve supports a maximum operating pressure of 210 bar, providing dependable performance in hydraulic motor control and auxiliary hydraulic circuits.

Stable Hydraulic Performance
The spool structure allows controlled internal leakage of up to 160 cc/min at 210 bar, helping maintain predictable hydraulic performance during motor operation and directional switching.

Reliable Coil Operation
The motor spool hydraulic cartridge valve operates continuously within 90%–110% of the rated coil voltage. At 210 bar, the minimum pull-in voltage is 90% of the rated voltage, supporting stable switching under normal voltage fluctuations.

Wide Operating Temperature Range
The hydraulic cartridge valve operates in temperatures from -30°C to +120°C. For reliable long-term performance, hydraulic oil filtration of 20 μm or better is recommended.

The performance data above are based on Model XSV-08-47A.

Technical Specifications

Parameter

Specification

Product Name

4-Way 3-Position Hydraulic Solenoid Cartridge Valve

Actuation

Electromagnetic Solenoid

Installation

Threaded Hydraulic Cartridge Valve

Representative Models

XSV-08-47A, XSV-10-47A, XSV-08-47B, XSV-10-47B, XSV-08-47C, XSV-10-47C, XSV-08-47D, XSV-10-47D

Maximum Operating Pressure

210 bar*

Flow Capacity

See Pressure Drop vs. Flow Curve

Internal Leakage

Max. 160 cc/min at 210 bar*

Operating Temperature

-30°C to +120°C*

Coil Voltage Range

Continuous operation at 90%–110% of rated voltage*

Minimum Pull-in Voltage

90% of rated voltage at 210 bar*

Recommended Oil Filtration

20 μm or better*

Cavity

08-4

*Performance data are based on Model XSV-08-47A. Specifications may vary depending on the selected model.

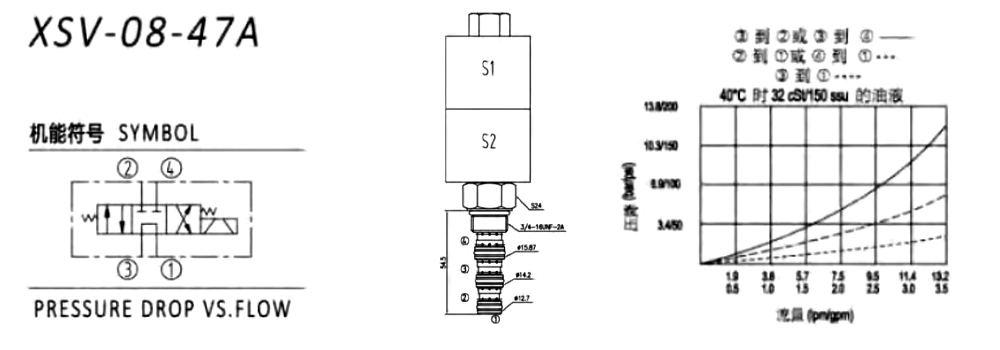

XSV-08-47A

Function Choice Part Number Cavity Flow(Ipm) Pressure(bar) Page
wggdshak1787047438 XSV-08-47A 08-4 11  210  A-62
XSV-08-47A 08-4 11  210  A-63
ajcklieg1787047443 XSV-08-47B 08-4 11  210  A-64
XSV-10-47B 10-4 22  210  A-65
kcirzgpe1787047452 XSV-08-47D 08-4 11  210  A-66
XSV-10-47D 10-4 22  210  A-67
gtpolbki1787047459 XSV-08-47C 08-4 11  210  A-68
XSV-10-47C 10-4 22  210  A-69
OEM / ODM Customization

We provide OEM and ODM services for hydraulic equipment manufacturers, distributors, and system integrators.
·AC/DC coil voltage customization
·Connector and cable configuration
·Seal material selection for different hydraulic fluids
·Custom logo and laser marking
·Packaging customization
·Hydraulic manifold integration support
·Technical assistance for model selection and equivalent replacement

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a 4-Way 3-Position Hydraulic Solenoid Cartridge Valve used for?
A 3-Position 4-Way Solenoid Valve is primarily used to control the direction and neutral flow condition of hydraulic motors in industrial and mobile hydraulic systems.

2. What models are available in this series?
Representative models include XSV-08-47A, XSV-10-47A, XSV-08-47B, XSV-10-47B, XSV-08-47C, XSV-10-47C, XSV-08-47D, and XSV-10-47D. Different spool configurations are available to meet various hydraulic circuit requirements.

3. Are all models supplied with the same technical specifications?
No. The technical data shown on this page are based on Model XSV-08-47A. Pressure, leakage, flow characteristics, and spool functions may vary depending on the selected model.

4. What oil cleanliness is recommended?
For reliable operation and extended service life, hydraulic oil should be filtered to 20 μm or better.

5. Can you provide OEM hydraulic cartridge valves?
Yes. We support OEM and ODM manufacturing, including customized coil voltage, connector type, sealing materials, product marking, packaging, and application-specific requirements.
