Specific Applications

·Hydraulic flow control circuits
·Hydraulic cylinder speed control
·Hydraulic motor speed adjustment
·Hydraulic power units (HPUs)
·Hydraulic manifold blocks
·Industrial automation equipment
·Construction and agricultural machinery
·Machine tools

Core Functions

Precise Manual Flow Adjustment
The Needle Valves feature an adjustable orifice that allows operators to regulate hydraulic oil flow according to system requirements. This helps achieve smooth actuator speed control and stable hydraulic performance.

High Pressure Capability
Designed for industrial hydraulic systems, the valve supports a maximum operating pressure of 250 bar, making it suitable for a wide range of hydraulic flow control applications.

Low Internal Leakage
The hydraulic cartridge needle valve uses a precision sealing structure with internal leakage of up to 3 drops per minute at 250 bar, helping maintain stable flow regulation and improve hydraulic efficiency.

Wide Operating Temperature Range
The adjustable orifice hydraulic valve operates within a temperature range of -30°C to +120°C, allowing reliable performance in various working environments.

Compact Cartridge Installation
The threaded cartridge design simplifies installation and maintenance while supporting hydraulic oil filtration of 20 μm or better to help reduce contamination and extend valve service life.

The performance data above are based on Model XNV-08.

Technical Specifications

Parameter

Specification

Product Name

Adjustable Orifice Hydraulic Cartridge Needle Valve

Installation

Threaded Hydraulic Cartridge Valve

Representative Models

XNV-08, XNV-10, XNV-12, XNV-16, XFC-08, XFC-10, XFC-12

Maximum Operating Pressure

250 bar*

Flow Capacity

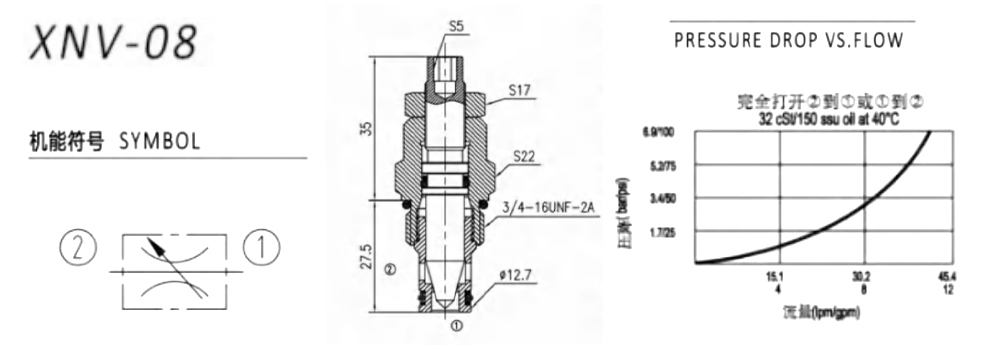

See Pressure Drop vs. Flow Curve

Internal Leakage

Max. 3 drops/min at 250 bar*

Operating Temperature

-30°C to +120°C*

Recommended Oil Filtration

20 μm or better*

Cavity

08-2

*Performance data are based on Model XNV-08. Specifications may vary depending on the selected model.


AdjustableOrificeHydraulicCartridgeNeedleValve

Function Choice Part Number Cavity Flow(Ipm) Pressure(bar) Page
AdjustableOrificeHydraulicCartridgeNeedleValve1 XNV-08 08-2 30  250  D-1
XNV-10 10-2 45  250  D-2
XNV-12 12-2 116  250  D-3
XNV-16 16-2 30  250  D-4
AdjustableOrificeHydraulicCartridgeNeedleValve2 XFC-08 08-2 18  250  D-5
XFC-10 10-2 45  250  D-6
XFC-12 12-2 120  250  D-7
OEM / ODM Customization

We provide OEM and ODM services for hydraulic cartridge needle valves to meet different hydraulic system requirements.
·Thread and cavity customization
·Flow adjustment range customization
·Seal material options for different hydraulic fluids
·Custom logo and laser marking
·Packaging customization
·Hydraulic manifold integration support
·Technical assistance for model selection and equivalent replacement

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a hydraulic needle valve used for?
A hydraulic needle valve is used to manually adjust hydraulic oil flow, allowing precise control of cylinder or motor speed in hydraulic systems.

2. Which models are available in this series?
Representative models include XNV-08, XNV-10, XNV-12, XNV-16, XFC-08, XFC-10, and XFC-12. Different models are available for various flow capacities and cavity sizes.

3. Are all models supplied with the same technical specifications?
No. The technical data shown on this page are based on Model XNV-08. Pressure ratings, flow characteristics, cavity dimensions, and adjustment ranges may vary depending on the selected model.

4. What oil cleanliness is recommended?
For reliable flow control and longer service life, hydraulic oil filtration of 20 μm or better is recommended.

5. How can I choose the right Adjustable Orifice Hydraulic Cartridge Needle Valve model?
Selection depends on operating pressure, required flow rate, cavity size, adjustment range, hydraulic fluid, and system design. Our engineering team can recommend the appropriate Needle Valves Adjustable Orifice Hydraulic Cartridge Type model based on your application requirements.
