Specific Applications

·Hydraulic cylinder speed control
·Hydraulic actuator flow adjustment
·Hydraulic power units (HPUs)
·Hydraulic manifold blocks
·Mobile hydraulic equipment
·Industrial automation systems
·Construction machinery
·Agricultural machinery

Core Functions

Adjustable Flow Control
The Flow Control Valves allow precise adjustment of hydraulic oil flow through a variable orifice design. This helps control actuator speed and achieve stable hydraulic system operation.

Integrated Check Valve Function
The adjustable orifice check valve combines flow regulation and one-way free flow in a single cartridge valve, simplifying hydraulic circuit design and reducing the number of components required.

Stable Pressure Performance
Designed for hydraulic applications, the valve supports a maximum operating pressure of 250 bar, making it suitable for various industrial and mobile hydraulic systems.

Adjustable Flow Range
Based on Model XFRA-08, the valve provides a flow setting range of 2–20 L/min with a flow maintenance accuracy of ±10%, supporting consistent actuator speed control.

Wide Operating Temperature Range
The hydraulic flow control cartridge valve operates within a temperature range of -30°C to +120°C. Hydraulic oil filtration of 20 μm or better is recommended to maintain reliable valve performance.

The performance data above are based on Model XFRA-08.

Technical Specifications

Parameter

Specification

Product Name

Adjustable Orifice Check Valve Flow Control Valve

Installation

Threaded Hydraulic Cartridge Valve

Representative Models

PCM-06, PCM-06-01, XFR-08, XFR-10, XFRA-08, XFRA-10, XFR-10-33, XFR-12-33

Maximum Operating Pressure

250 bar*

Flow Setting Range

2–20 L/min*

Flow Maintenance Accuracy

±10%*

Operating Temperature

-30°C to +120°C*

Recommended Oil Filtration

20 μm or better*

Cavity

08-2

*Performance data are based on Model XFRA-08. Specifications may vary depending on the selected model.


AdjustableOrificeCheckValveFlowControlValve

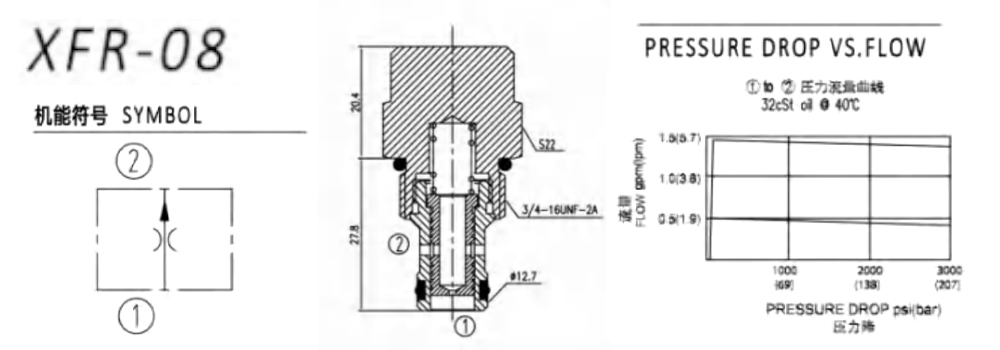

Function Choice Part Number Cavity Flow(Ipm) Pressure(bar) Page
AdjustableOrificeCheckValveFlowControlValve1 PCM-06 D-8 Page 10  210  D-8
PCM-06-01 D-9 Page 10  250  D-9
XFR-08 08-2 7.5  250  D-10
XFR-10 10-2 22.7  250  D-11
AdjustableOrificeCheckValveFlowControlValve2 XFRA-08 08-2 20  250  D-12
XFRA-10 10-2 26  250  D-13
AdjustableOrificeCheckValveFlowControlValve3 XFR-10-33 10-3 13  250  D-14
XFR-12-33 12-3 68  250  D-15
OEM / ODM Customization

We provide OEM and ODM services for hydraulic cartridge flow control valves to meet different system requirements.
·Flow setting range customization
·Thread and cavity customization
·Seal material selection for different hydraulic fluids
·Custom logo engraving
·Customized packaging
·Hydraulic manifold integration support
·Technical assistance for model selection and replacement

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is an adjustable orifice check valve used for?
An adjustable orifice check valve is used to control hydraulic flow in one direction while allowing free flow in the reverse direction. It is commonly used for hydraulic actuator speed adjustment.

2. Which models are available in this series?
Representative models include PCM-06, PCM-06-01, XFR-08, XFR-10, XFRA-08, XFRA-10, XFR-10-33, and XFR-12-33. Different models are available for various flow requirements and installation conditions.

3. Are all models supplied with the same technical specifications?
No. The technical data shown on this page are based on Model XFRA-08. Pressure ratings, flow ranges, cavity sizes, and adjustment characteristics may vary depending on the selected model.

4. What is the flow adjustment range of this valve?
Based on Model XFRA-08, the adjustable flow range is 2–20 L/min, with a flow maintenance accuracy of ±10%.

5. How can I choose the right Adjustable Orifice Check Valve Flow Control Valve model?
Selection depends on operating pressure, required flow range, cavity size, hydraulic circuit design, and application requirements. The appropriate Flow Control Valves Adjustable Orifice Check Valve Type model should be selected according to the system working conditions.
