  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Hydraulic cylinder synchronization systems
·Mobile hydraulic equipment
·Construction machinery
·Agricultural machinery
·Hydraulic power units (HPUs)
·Industrial automation equipment
·Hydraulic manifold blocks
·Flow distribution and combining circuits

Core Functions

Flow Division and Combination
The Dividers Combiners Valves can divide a single inlet flow into two outlet flows or combine two hydraulic flows into one. This helps maintain balanced actuator operation and improves hydraulic system efficiency.

Stable Spool-Type Operation
The spool type hydraulic cartridge valve uses a durable spool structure to provide reliable flow distribution and combination performance in hydraulic circuits.

Multiple Flow Options
Based on Model FD-10, the valve supports multiple input flow options with a 50:50 flow ratio, including:
15.1 L/min input flow – Model FD-10-22
22.7 L/min input flow – Model FD-10-33
30.3 L/min input flow – Model FD-10-44
45.4 L/min input flow – Model FD-10-66

High Pressure Capability
The hydraulic cartridge divider combiner valve supports a maximum operating pressure of 250 bar, making it suitable for demanding hydraulic applications.

Reliable Operation in Various Conditions
The valve operates within a temperature range of -30°C to +120°C. Hydraulic oil filtration of 20 μm or better is recommended to maintain stable spool movement and extend service life.

The performance data above are based on Model FD-10.

Technical Specifications

Parameter

Specification

Product Name

Spool Type Hydraulic Cartridge Flow Divider Combiner Valve

Installation

Threaded Hydraulic Cartridge Valve

Representative Models

FD-10, FD-12

Maximum Operating Pressure

250 bar*

Flow Options

15.1 L/min, 22.7 L/min, 30.3 L/min, 45.4 L/min*

Flow Ratio

50:50*

Operating Temperature

-30°C to +120°C*

Recommended Oil Filtration

20 μm or better*

Cavity

10-4

*Performance data are based on Model FD-10. Specifications may vary depending on the selected model.

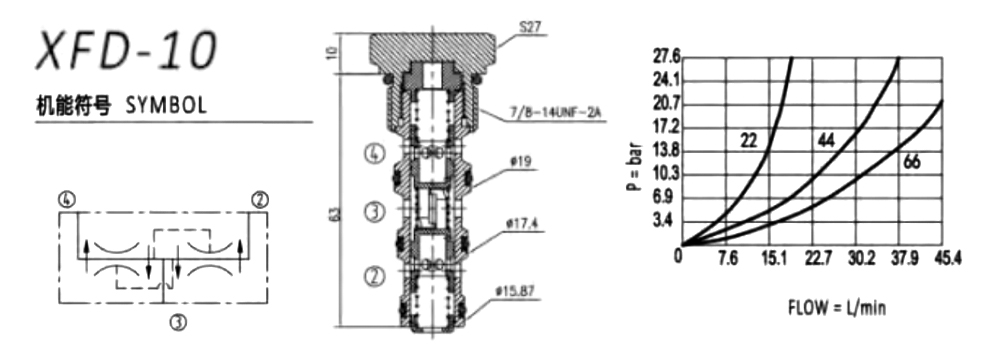

SpoolTypeHydraulicCartridgeFlowDividerCombinerValve

Function Choice Part Number Cavity Flow(Ipm) Pressure(bar) Page
SpoolTypeHydraulicCartridgeFlowDividerCombinerValve1 FD-10 10-4 45  350  D-16
FD-12 12-4 90  350  D-17
OEM / ODM Customization

We provide OEM and ODM services for hydraulic cartridge divider combiner valves to meet different hydraulic system requirements.
·Flow ratio customization
·Flow range customization
·Thread and cavity customization
·Seal material selection
·Custom logo engraving
·Customized packaging
·Hydraulic manifold integration support
·Technical assistance for model selection and replacement

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a hydraulic divider combiner valve used for?
A hydraulic divider combiner valve is used to split one hydraulic flow into two flows or combine two flows into one. It is commonly applied in systems requiring synchronized actuator movement.

2. Which models are available in this series?
Representative models include FD-10 and FD-12. Different flow options are available depending on system requirements.

3. Are all models supplied with the same technical specifications?
No. The technical data shown on this page are based on Model FD-10. Flow options, pressure ratings, and other specifications may vary depending on the selected model.

4. What flow ratio does this valve provide?
Based on Model FD-10, the standard flow ratio is 50:50, with multiple input flow options available for different hydraulic applications.

5. How can I choose the right Spool Type Hydraulic Cartridge Flow Divider Combiner Valve model?
Selection depends on required flow rate, flow ratio, operating pressure, cavity size, and hydraulic circuit design. The appropriate Dividers Combiners Valves Spool Type model should be selected according to the system working conditions.
