Manufacturer's Overview of the Types and Applications of Threaded Cartridge Valves

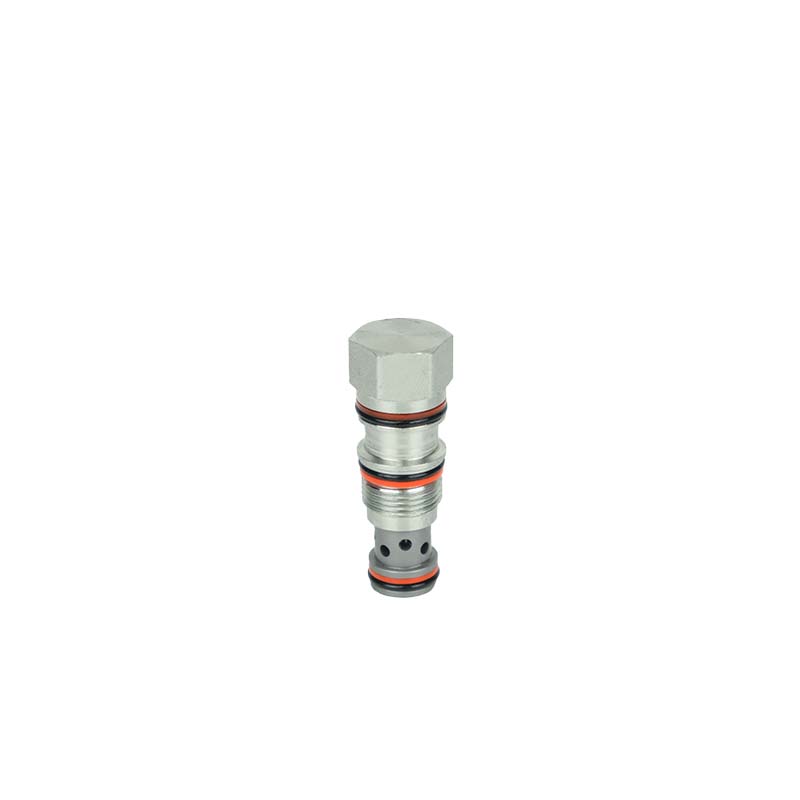

Threaded cartridge valves are a type of valve widely used in hydraulic and pneumatic systems. They can be used to control the flow of liquids and gases and offer advantages such as simple construction and easy installation. Based on their different operating principles and applications, threaded cartridge valves can be classified into the following types:

Spool-Type Threaded Cartridge Valves

Spool-type threaded cartridge valves are a common type of threaded cartridge valve. Their structure is relatively simple, consisting of a spool and a valve seat. The spool controls the flow of fluid or gas through rotation or linear movement. Spool-type threaded cartridge valves are suitable for hydraulic systems operating at high pressure, high flow rates, and high speeds.

Regulating Threaded Cartridge Valves

Regulating threaded cartridge valves are used to regulate flow rate. They typically consist of a regulating spool and a valve body. The flow rate is adjusted by rotating the regulating spool. Regulating threaded cartridge valves are suitable for systems that require high flow rate accuracy, such as hydraulic and pneumatic transmission systems.

Spool-Type Threaded Cartridge Valves

Spool-type threaded cartridge valves typically consist of a spool and a valve body. The spool can be rotated or pushed/pulled to control the flow of liquids or gases. These valves use the spool to achieve both flow and pressure control, making them suitable for systems with high flow and pressure requirements.

Diverter Threaded Cartridge Valves

Diverter threaded cartridge valves enable switching between two or more fluid paths. They typically consist of a rotary spool and multiple outlet ports, allowing for rapid switching between different fluid paths. Diverter threaded cartridge valves are suitable for systems requiring frequent changes in fluid paths, such as multi-way directional control in hydraulic and pneumatic systems.
