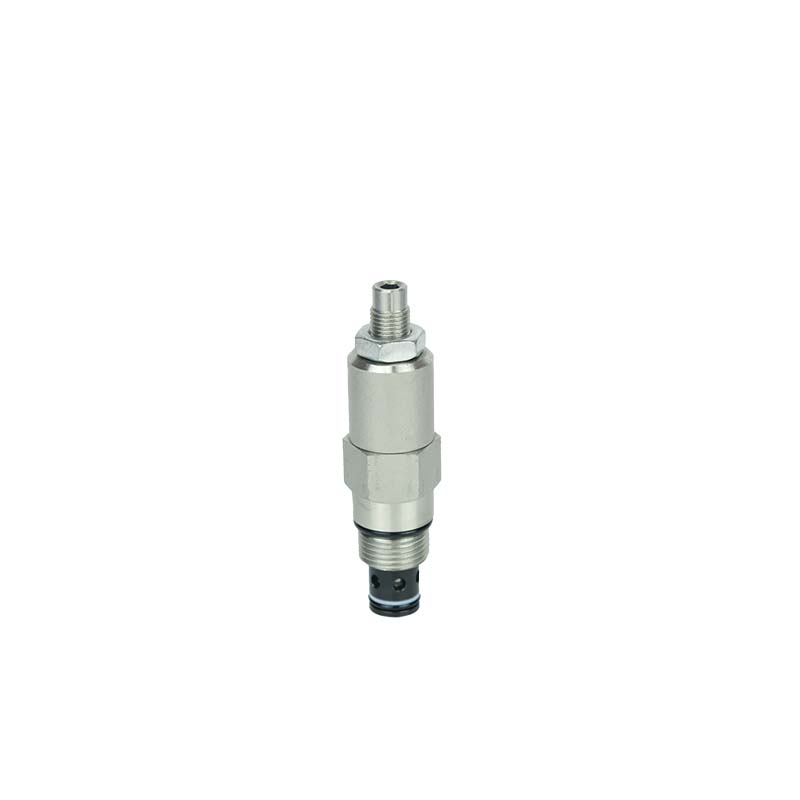

What is a hydraulic cartridge valve?

Cartridge valves are a common type of hydraulic control component widely used in hydraulic systems across industries such as manufacturing, agriculture, construction, and transportation. Cartridge valves are typically installed in hydraulic lines and control and regulate hydraulic systems by regulating the flow of hydraulic fluid.

The structure of a hydraulic cartridge valve generally consists of a valve body, a spool, a spring, and seals. Different configurations and shapes of the valve body and spool enable various control functions, such as one-way control, two-way control, flow control, and pressure control. The spring provides the force to control the spool and ensures its return to the neutral position. The seals guarantee the hydraulic cartridge valve’s sealing performance and prevent leaks in the hydraulic system.

Hydraulic cartridge valves offer numerous advantages, such as flexibility, high precision, reliability, and durability. They can withstand high-pressure and high-temperature environments and are suitable for use in harsh industrial settings. Additionally, hydraulic cartridge valves can precisely control hydraulic flow and pressure, thereby enabling accurate control and regulation of hydraulic systems.

Hydraulic cartridge valves have a wide range of applications, including various hydraulic systems such as machine tools, presses, injection molding machines, excavators, loaders, cranes, forklifts, ships, agricultural machinery, and oil drilling and production equipment. At the same time, in the field of industrial automation, hydraulic cartridge valves are also widely used in robots, automated production lines, and other applications.
