Specific Applications

·Hydraulic cylinder load control
·Lifting and lowering systems
·Mobile hydraulic equipment
·Construction machinery
·Agricultural machinery
·Hydraulic motors
·Hydraulic power units (HPUs)
·Industrial hydraulic systems

Core Functions

Reliable Load Holding
The Standard Counterbalance Valves help prevent uncontrolled actuator movement by maintaining hydraulic pressure when external loads act on cylinders or motors. This improves system stability and operational safety.

Controlled Load Movement
The non-vented counterbalance valve provides smooth load lowering and movement control by regulating hydraulic flow according to system pressure conditions.

High Pressure Capability
Based on Model XCBCA, the valve supports a maximum setting pressure of 280 bar and a maximum recommended load pressure of 215 bar at maximum setting, making it suitable for demanding hydraulic applications.

Stable Leakage Performance
The hydraulic counterbalance cartridge valve features internal leakage of approximately 5 drops/min, helping maintain pressure stability during load holding operations.

Adjustable Pilot Control
The valve features a pilot ratio of 3:1, providing balanced pilot pressure control for reliable opening and closing performance.

The performance data above are based on Model XCBCA.

Technical Specifications

Parameter

Specification

Product Name

Standard Non-Vented Counterbalance Valve

Installation

Threaded Hydraulic Cartridge Valve

Representative Models

XCBCA, XCBEA, XCBGA, XCBIA

Maximum Operating Pressure

280 bar*

Flow Capacity

See Pressure Drop vs. Flow Curve

Internal Leakage

5 drops/min*

Pilot Ratio

3:1*

Operating Temperature

-30°C to +120°C*

Recommended Oil Filtration

20 μm or better*

Cavity

T-11A

*Performance data are based on Model FD-10. Specifications may vary depending on the selected model.

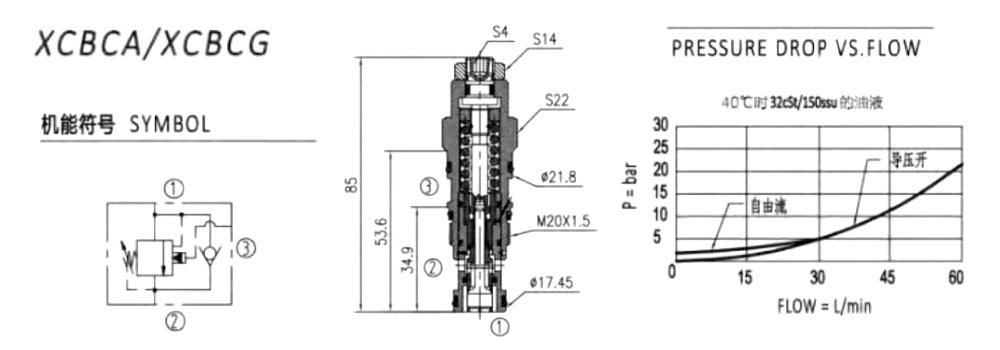

StandardNon-VentedCounterbalanceValve

Function Choice Part Number Cavity Flow(Ipm) Pressure(bar) Page
StandardNon-VentedCounterbalanceValve1 XCBCA T-11A 60  280  E-1
XCBEA T-2A 120  280  E-2
XCBGA T-17A 240  280  E-3
XCBIA T-19A 480  280  E-4
OEM / ODM Customization

We provide OEM and ODM services for hydraulic counterbalance cartridge valves to meet different application requirements.
·Pressure setting customization
·Pilot ratio customization
·Thread and cavity customization
·Seal material selection for different hydraulic fluids
·Custom logo engraving
·Customized packaging
·Hydraulic manifold integration support
·Technical assistance for model selection and replacement

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a hydraulic counterbalance valve used for?
A hydraulic counterbalance valve is used to control and hold loads in hydraulic systems. It helps prevent uncontrolled movement of cylinders or motors when external forces affect the actuator.

2. Which models are available in this series?
Representative models include XCBCA, XCBEA, XCBGA, and XCBIA. Different models are available for various hydraulic system requirements.

3. Are all models supplied with the same technical specifications?
No. The technical data shown on this page are based on Model XCBCA. Pressure settings, cavity specifications, flow characteristics, and other parameters may vary depending on the selected model.

4. What is the pilot ratio of this counterbalance valve?
The representative model XCBCA uses a 3:1 pilot ratio, providing stable pilot control for load movement and pressure regulation.

5. How can I choose the right Standard Non-Vented Counterbalance Valve model?
Selection depends on operating pressure, load requirements, flow rate, pilot ratio, cavity size, and hydraulic circuit design. The appropriate Standard Counterbalance Valves Non-Vented model should be selected according to the system working conditions.
