  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Hydraulic power units (HPUs)
·Industrial hydraulic systems
·Hydraulic manifolds
·Hydraulic cylinders and actuators
·Machine tools
·Construction machinery
·Mobile hydraulic equipment
·Automation systems

Core Functions

Reliable One-Way Flow Control
The Angle Check Valve allows hydraulic oil to flow in one direction while automatically blocking reverse flow, helping protect hydraulic circuits and maintain system stability.

Compact Installation Design
The angle body structure reduces installation space requirements and provides greater flexibility for hydraulic piping and manifold layouts.

Reverse Flow Protection
The valve helps prevent pressure loss and unwanted reverse flow, improving the safety and operating reliability of hydraulic systems.

Stable Hydraulic Performance
The check mechanism responds automatically to pressure changes, providing consistent one-way flow control for continuous industrial operation.

Easy System Integration
The compact body design makes the Angle Check Valve suitable for new hydraulic systems as well as replacement and maintenance projects.

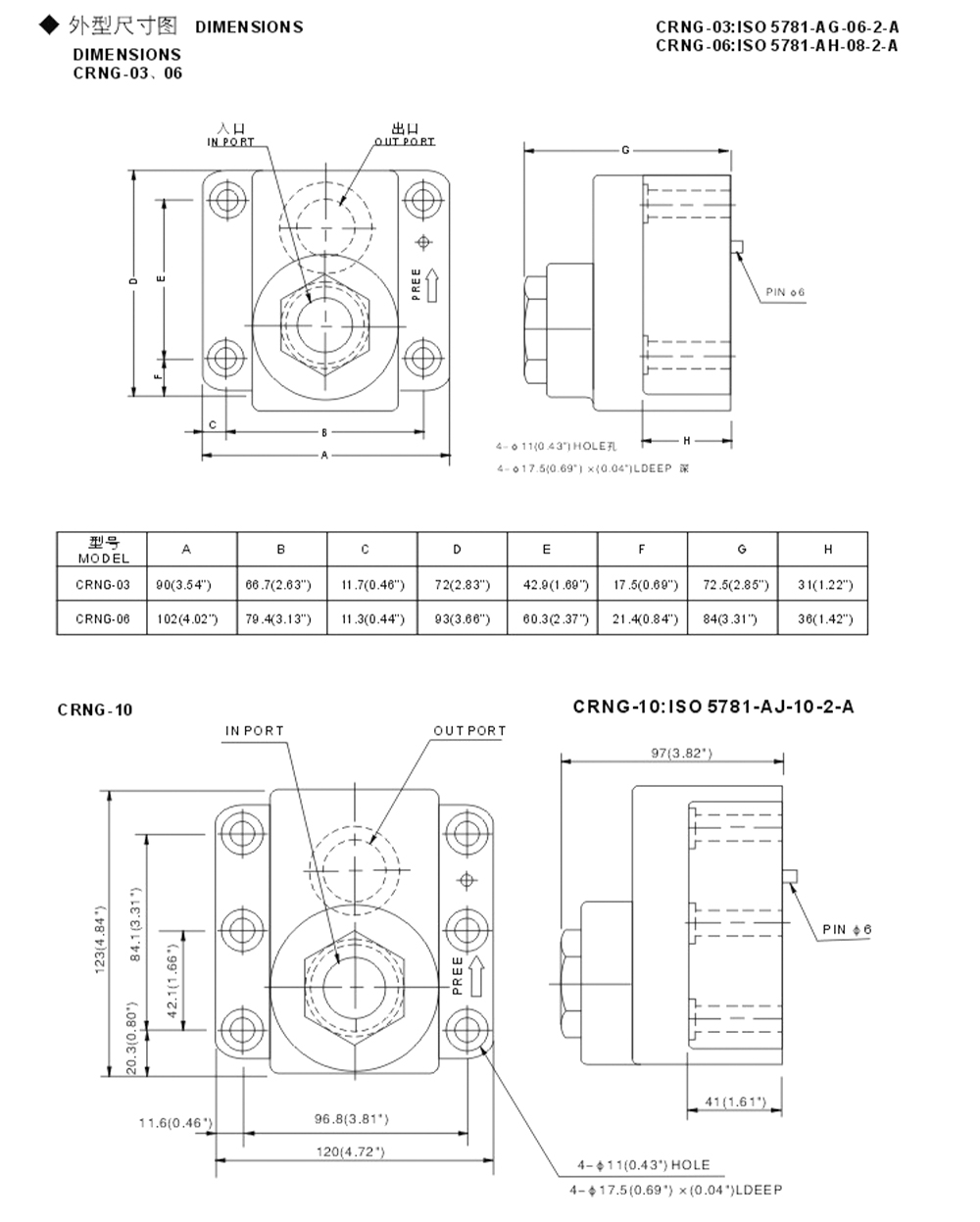

Technical Specifications
Model A B C D E F G H
CRNG-03 90(3.54") 66.7(2.63") 11.7(0.46") 72(2.83") 42.9(1.69") 17.5(0.69") 72.5(2.85") 31(1.22")
CRNG-06 102(4.02”) 79.4(3.13") 11.3(0.44") 93(3.66") 60.3(2.37") 21.4(0.84") 84(3.31") 36(1.42”)

qrnuumah1787129096
yxaogwwh1787129102


OEM / ODM Customization

We provide OEM and ODM services for hydraulic check valves to meet different application requirements.
·Valve body customization
·Port thread customization
·Pressure rating customization
·Seal material selection
·Surface treatment options
·Logo marking and packaging customization
·Hydraulic application support

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is an angle check valve used for?
An angle check valve is used to allow hydraulic oil to flow in one direction while preventing reverse flow, helping protect hydraulic equipment and maintain system stability.

2. What are the advantages of an angle body design?
The angle body design saves installation space, simplifies hydraulic piping, and provides flexible installation in compact hydraulic systems.

3. What applications are suitable for this valve?
It is widely used in hydraulic power units, industrial machinery, hydraulic cylinders, machine tools, construction equipment, and automation systems.

4. Can this valve be customized?
Yes. OEM and ODM services are available, including port threads, pressure ratings, seal materials, surface treatment, logo marking, and packaging.

5. How can I choose the right Angle Check Valve model?
Selection should be based on operating pressure, required flow rate, connection type, installation space, and hydraulic circuit requirements. The appropriate Angle Check Valve model should be selected according to the actual application conditions.
