Specific Applications

·Oil and gas equipment
·Petrochemical plants
·Mining machinery
·Offshore and marine hydraulic systems
·Chemical processing equipment
·Hydraulic systems installed in hazardous areas

Core Functions

Explosion-Proof Solenoid Control
The valve uses an explosion-proof solenoid to electrically control the check valve function, making it suitable for hazardous industrial environments where electrical safety is required.

Reliable Reverse Flow Prevention
The integrated check valve prevents reverse hydraulic flow, helping maintain actuator position and improve system safety during operation.

High Pressure and Large Flow Capacity
The GDAW-06 model supports a maximum working pressure of 31.5 MPa and a maximum flow rate of 220 L/min, making it suitable for medium- and high-flow hydraulic systems.

Remote Hydraulic Control
The electrically operated design allows remote control through the hydraulic control system, improving automation efficiency and reducing manual intervention.

Stable Industrial Performance
The valve is designed for continuous operation in demanding hydraulic applications, providing reliable performance for industrial equipment requiring explosion-proof protection.

Technical Specifications
Specifications 06  10
Maximum Operating Pressure(MPa) 31.5
Max.Flow(L/min) 220  430
Working Fluid Mineral oil phosphate-ester
Fluid temp. (℃) -20~70
Viscosity(mm²/ s) 2.8~380
Opening pressure(MPa) a:0.05    b:0.4
Working voltage(V) DC 24
※AC 110,220
Insulating grade Ip55

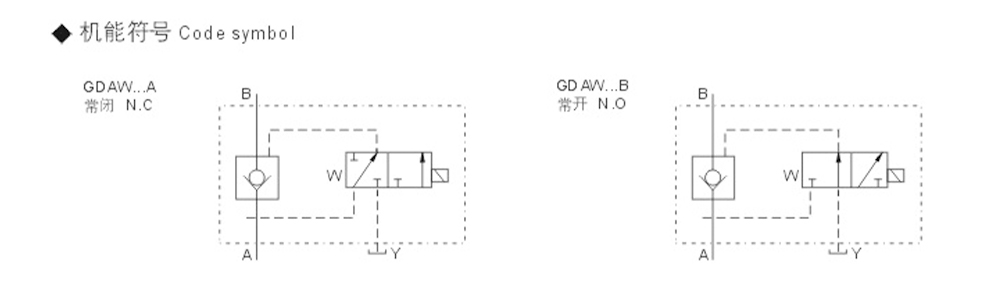

ujtyenpn1787206528

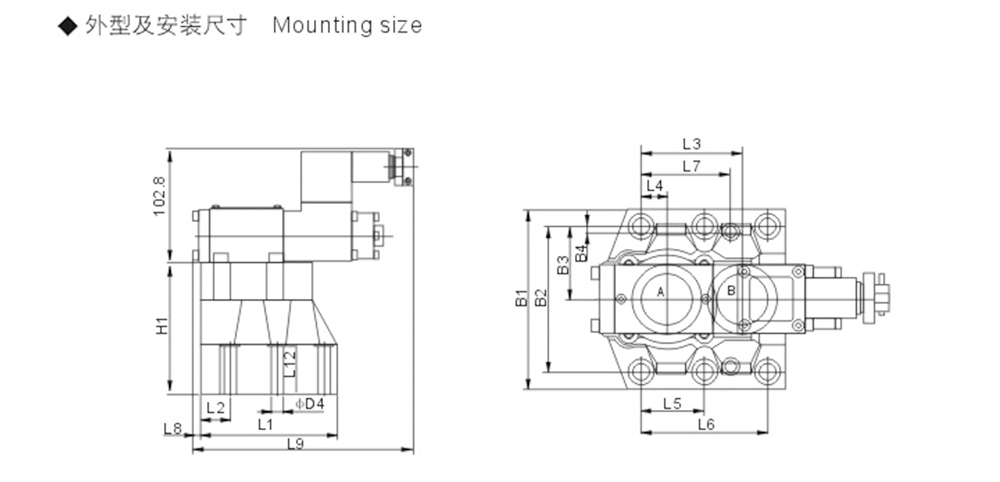

Specification B1 B2 B3 B4 L1 L2 L3 L4 L5 L6 L7
GDAW-06 102  79.4  39.7  6.4  101  25  49.2  11.1  60.3  39.7
GDAW-10 120  96.8  48.4  3.8  122  26.3  67.5  16.7  42.1  84.2  59.5

Specifcation L8 L9 L10 L11 L12 D1 D2 D3 D4 H1
GDAW-06 13.8  198  101  23  30  24  M10 11  95
GDAW-10 6.8  198  125  24  43.5  32  M10 11  119

uznjeixp1787206538

Specification Mounting Screws Amount Tightening Torque
GDAW-06 M10×45-12.9 75Nm
GDAW-10 M10×60-12.9 75Nm

OEM / ODM Customization

We provide OEM and ODM services for hydraulic equipment manufacturers, distributors, and industrial system integrators, including:

·Explosion-proof coil voltage customization
·Electrical connector and cable configuration
·Hydraulic mounting and connection options
·Private labeling and customized packaging
·Production based on customer drawings or technical specifications

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is an Explosion Solenoid Operated Check Valve used for?
An Explosion Solenoid Operated Check Valve is used to control hydraulic oil flow, prevent reverse flow, and provide safe electrical operation in hazardous environments where explosion protection is required.

2. Which models are available in this valve series?
The available models include GDAW-06 and GDAW-10. Different models can be selected according to hydraulic system flow requirements and installation conditions.

3. What should be considered when selecting an explosion-proof check valve?
Key factors include the explosion protection requirement, working pressure, flow rate, voltage specification, mounting type, and hydraulic circuit design.

4. Can this valve be customized for different industrial applications?
Yes. OEM and ODM services are available, including explosion-proof electrical configurations, voltage options, mounting styles, product labeling, and packaging.

5. How can I select the right Explosion-Proof Solenoid Operated Check Valve?
Provide your hydraulic system parameters, including operating pressure, required flow rate, hazardous area classification, voltage, and installation requirements. Our technical team can recommend the most suitable Explosion Solenoid Operated Check Valve model and configuration.
