  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Hydraulic power units and hydraulic stations
·Machine tools and processing equipment
·Industrial automation systems
·Hydraulic cylinder speed control systems
·Hydraulic machinery requiring controlled actuator movement

Core Functions

One-Way Flow Control
The valve regulates hydraulic flow in one direction to control actuator speed while allowing reverse free flow through the check function, improving hydraulic circuit flexibility.

Stable Speed Adjustment
The valve helps maintain consistent actuator movement by controlling oil flow, making it suitable for hydraulic systems requiring smooth operation.

Compact Modular Installation
The modular structure eliminates additional pipeline connections, helping reduce potential leakage points, installation costs, and required system space.

Low Leakage and Reliable Operation
The optimized internal design provides low leakage, low vibration, and low noise performance, supporting easier maintenance and stable system operation.

High Pressure Hydraulic Application
The MSA series is designed for industrial hydraulic systems. The MSA-02 model supports a maximum pressure of 250 bar and a maximum flow rate of 40 L/min (10.56 gpm).

Technical Specifications
Model Number Maximum Pressure(bar) Maximum Flow Rate
(Ipm)
Weight
(kg)
MSA-02 250(3571psi) 40(10.56gpm)
80(21.13gpm)
200(52.80gpm)
300(79.20gpm)
1.1
MSA-03 2.6
MSA-04 5.5
MSA-06 12.0
MSW-02 1.3
MSW-03 2.8
MBW-04 5.9
MBW-06 12.2

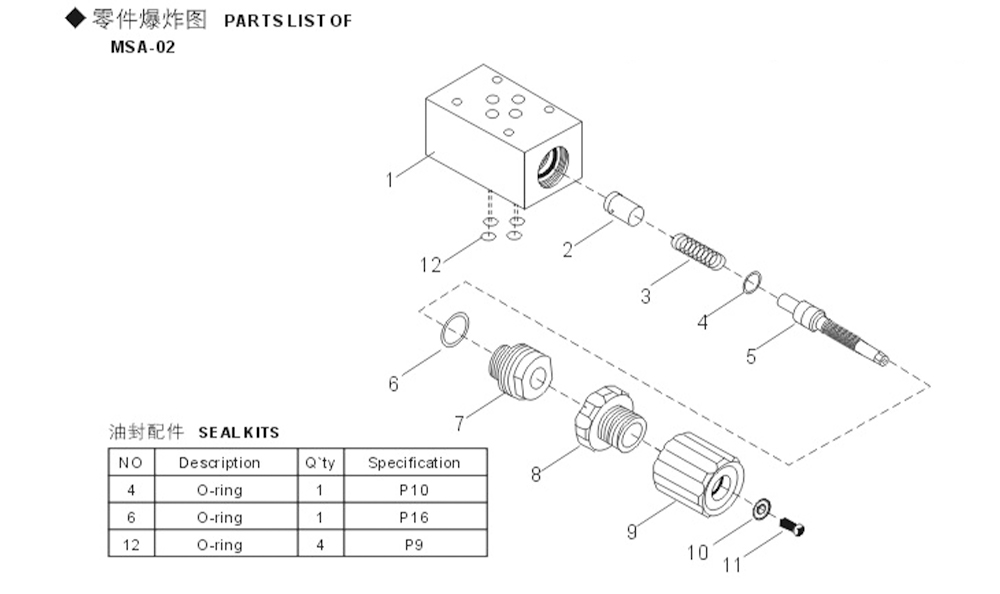

kybvwttu1787202245

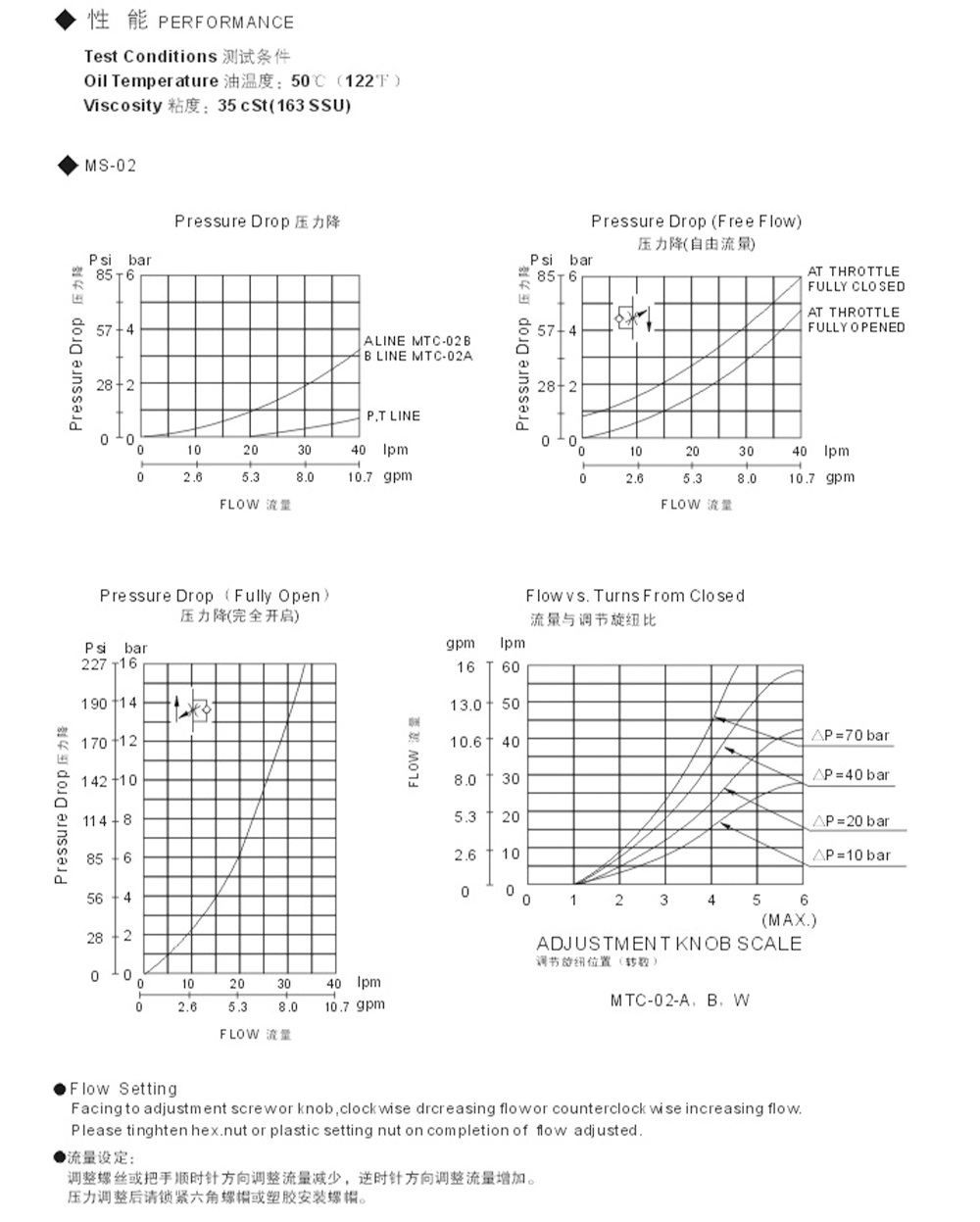

ixlcyjgs1787202252

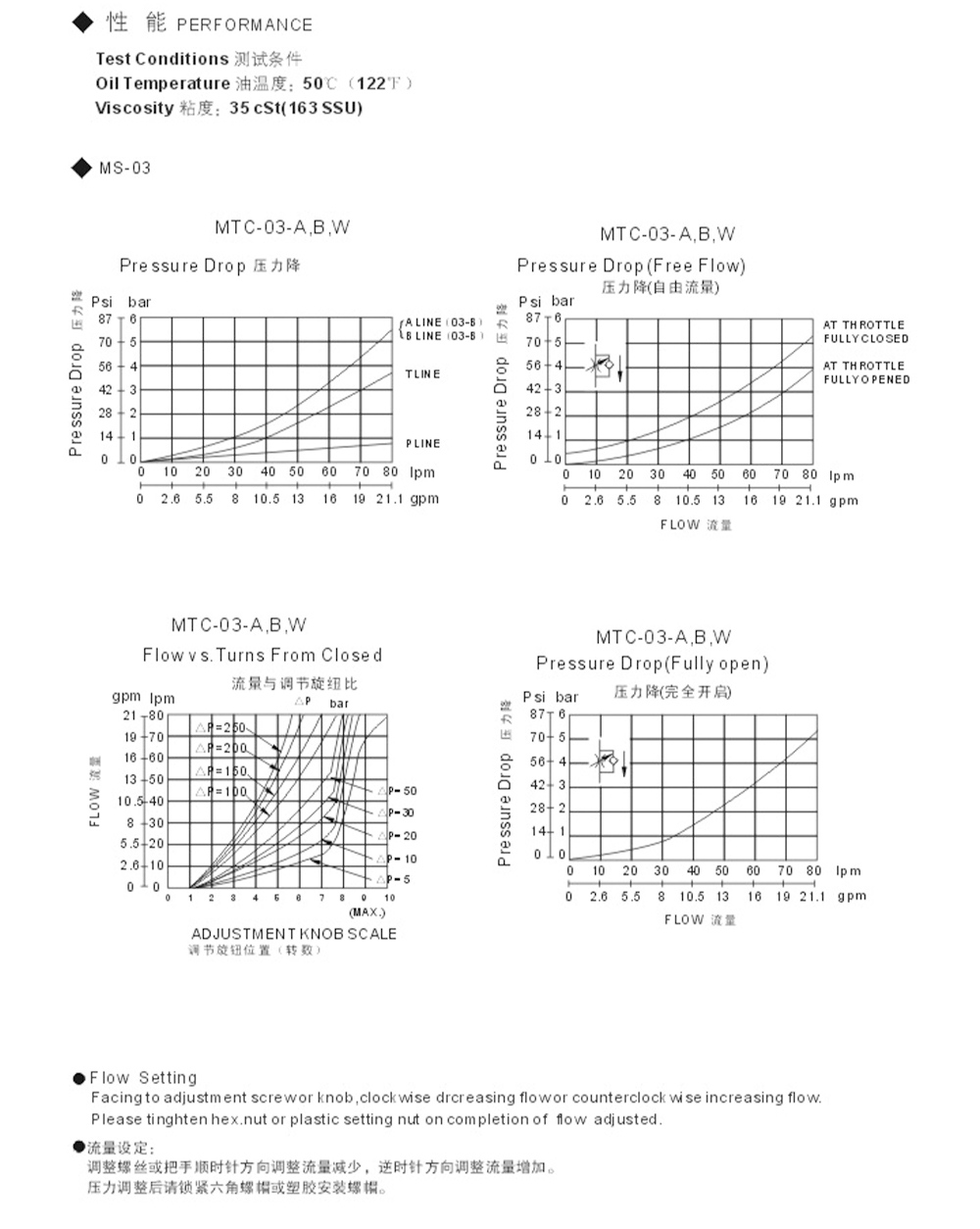

kdnzpblm1787202256

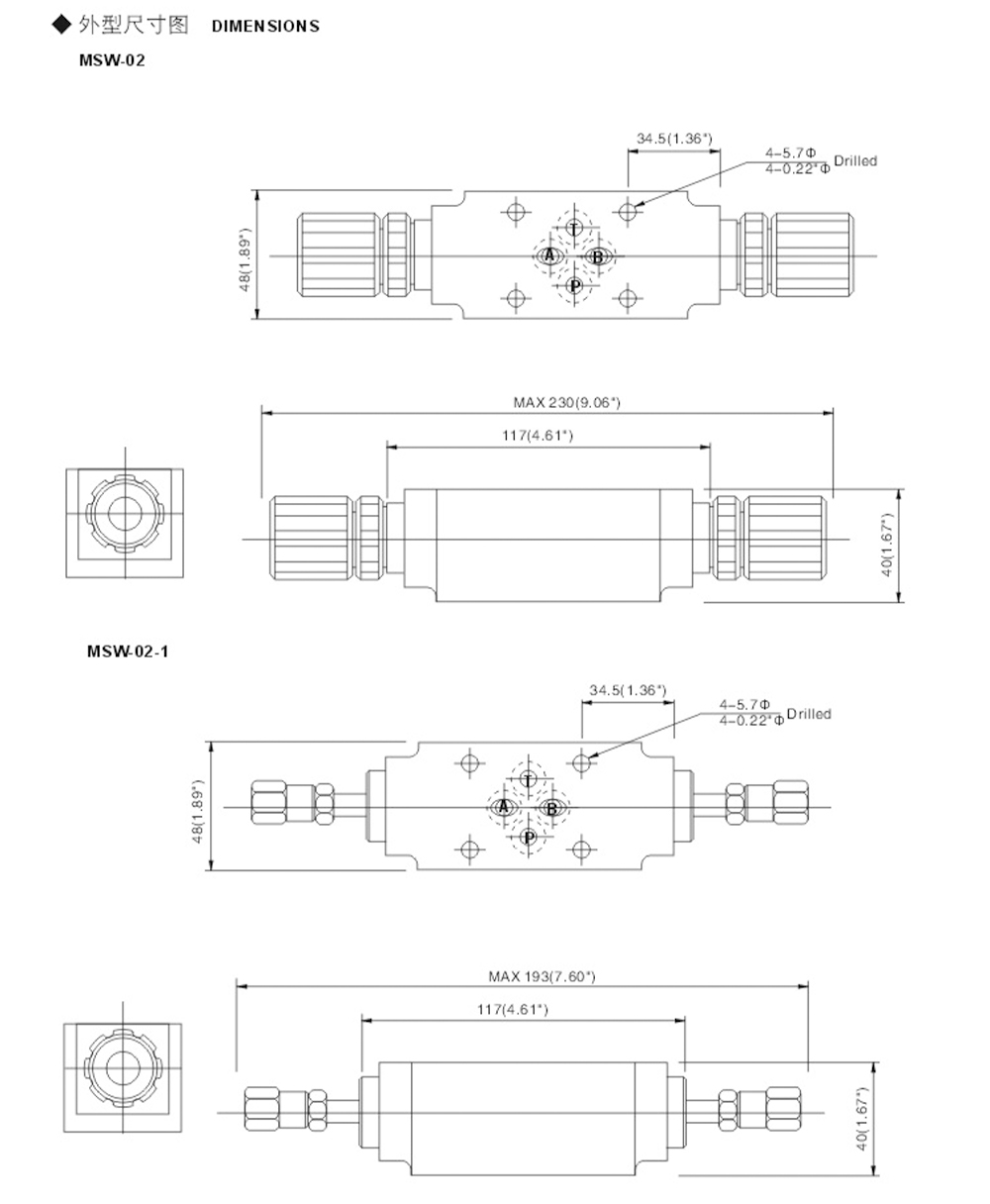

xmkwfpyq1787202261

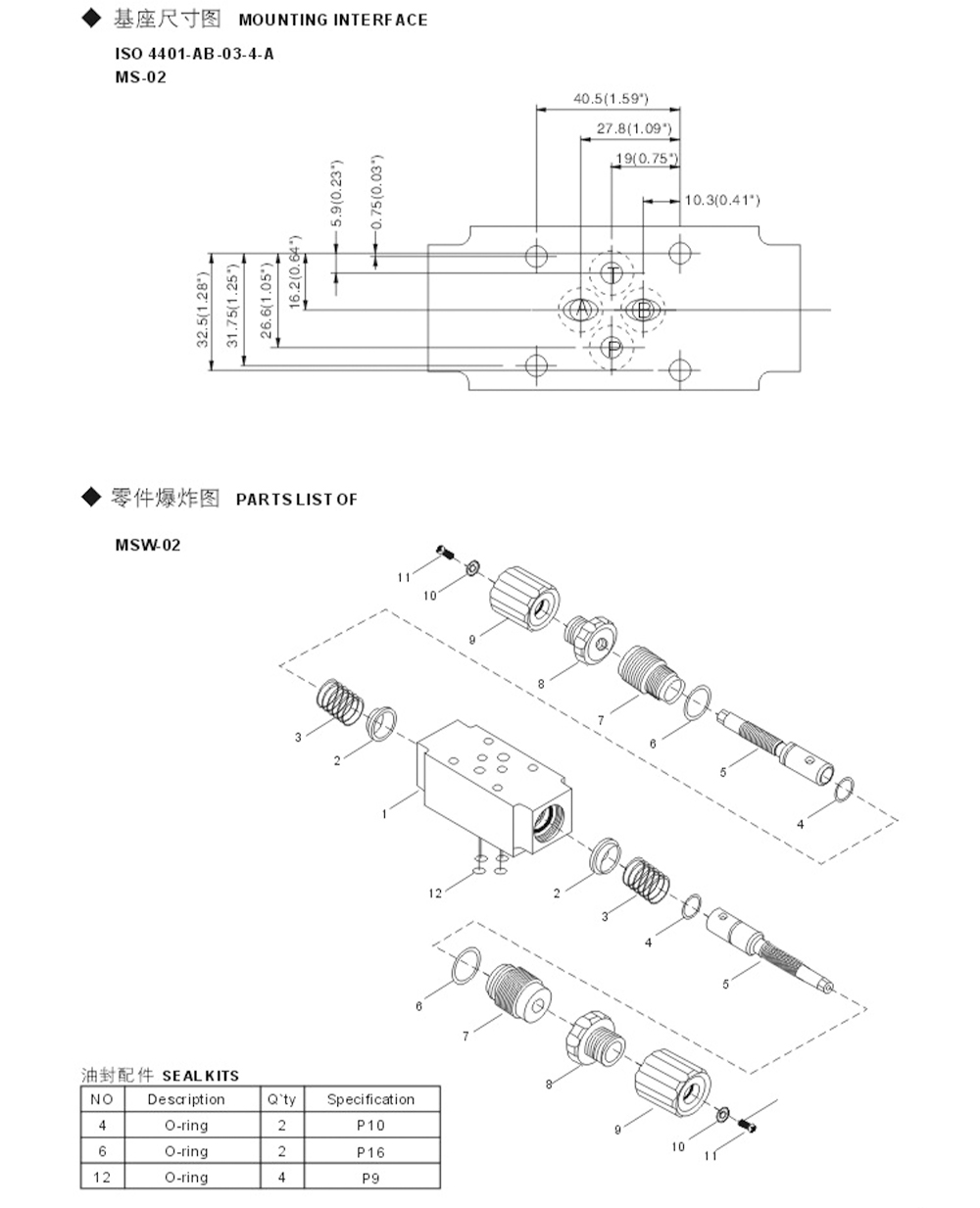

mistgvqk1787202265

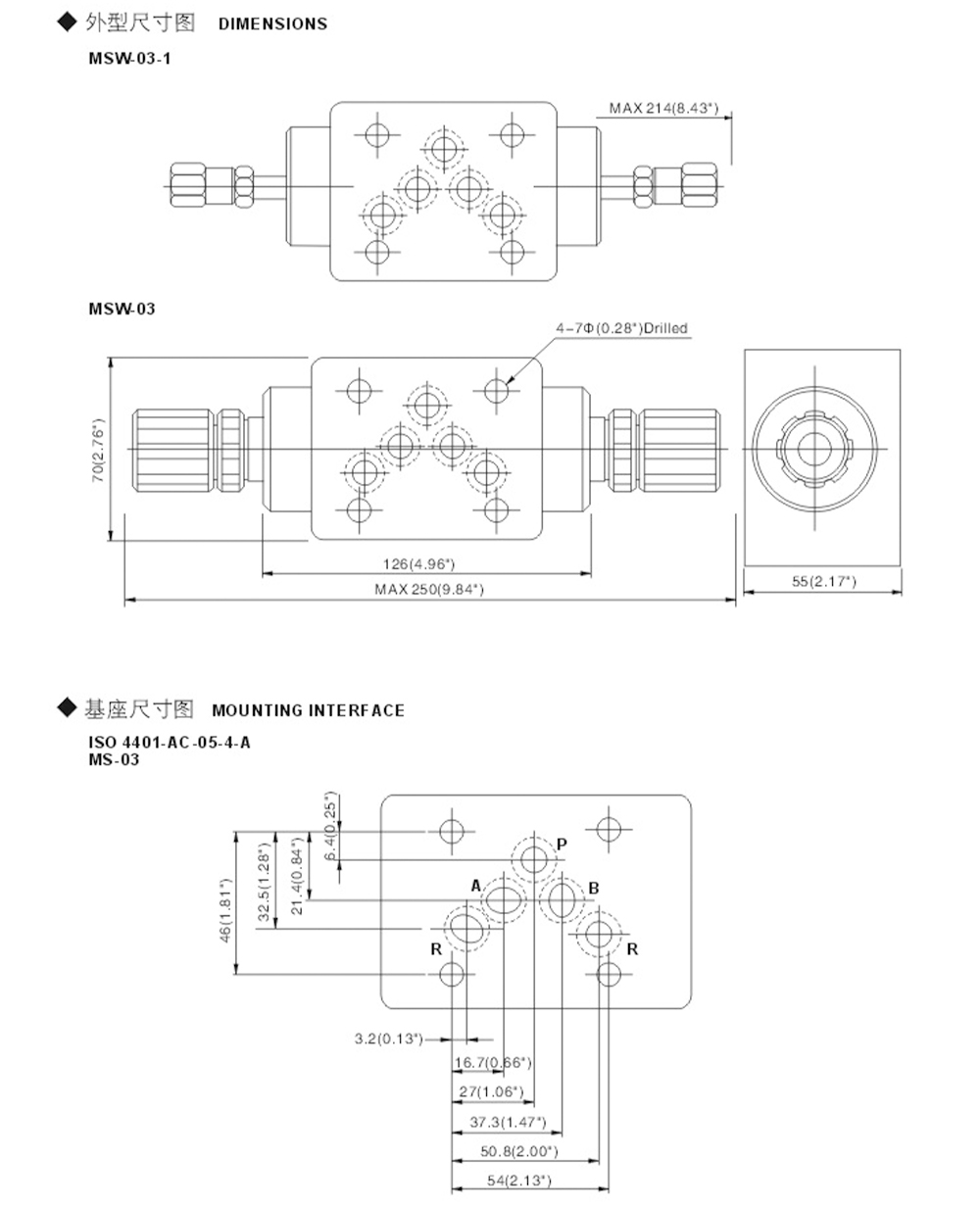

uctxnwlm1787202269

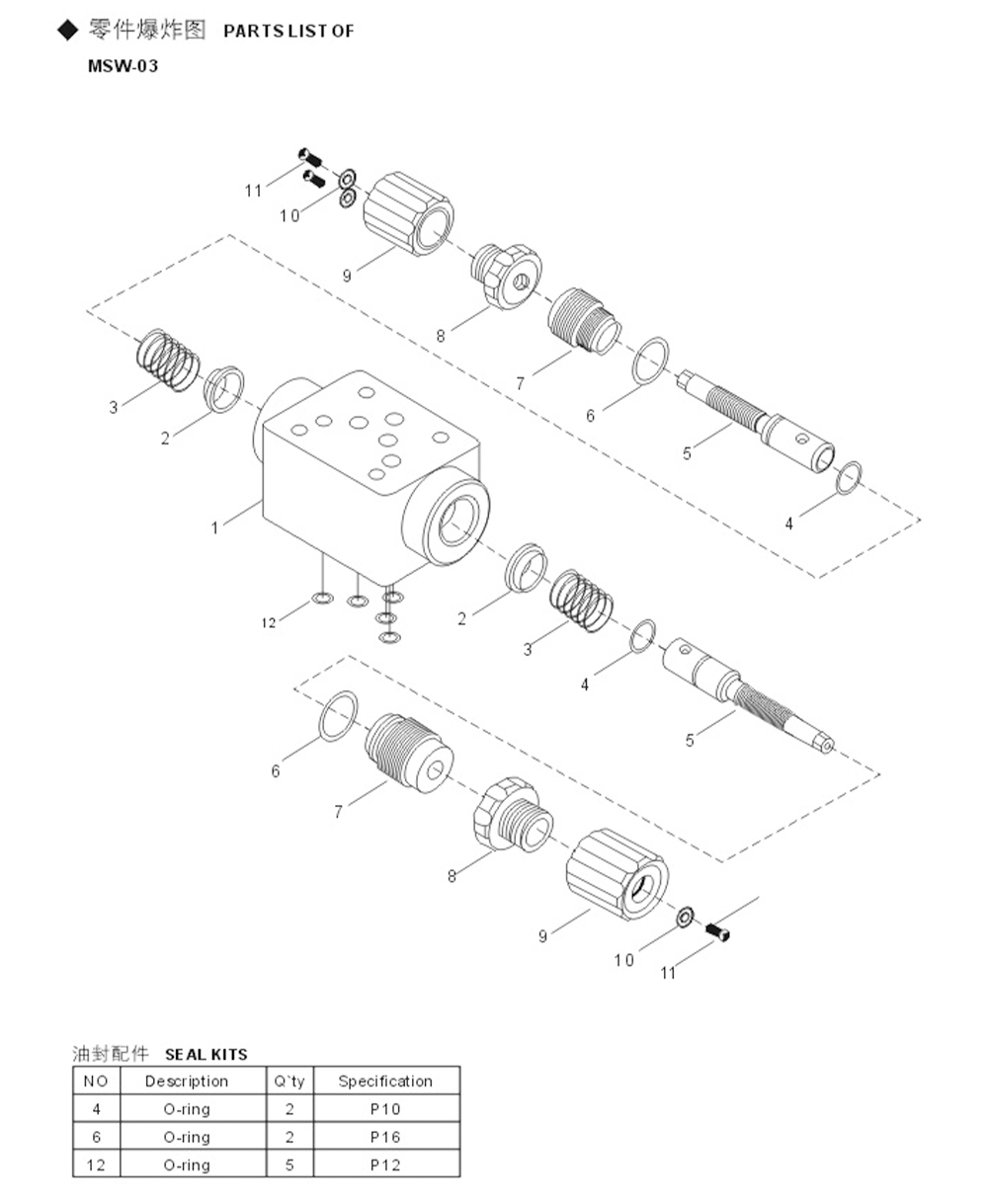

lsiuovxh1787202273

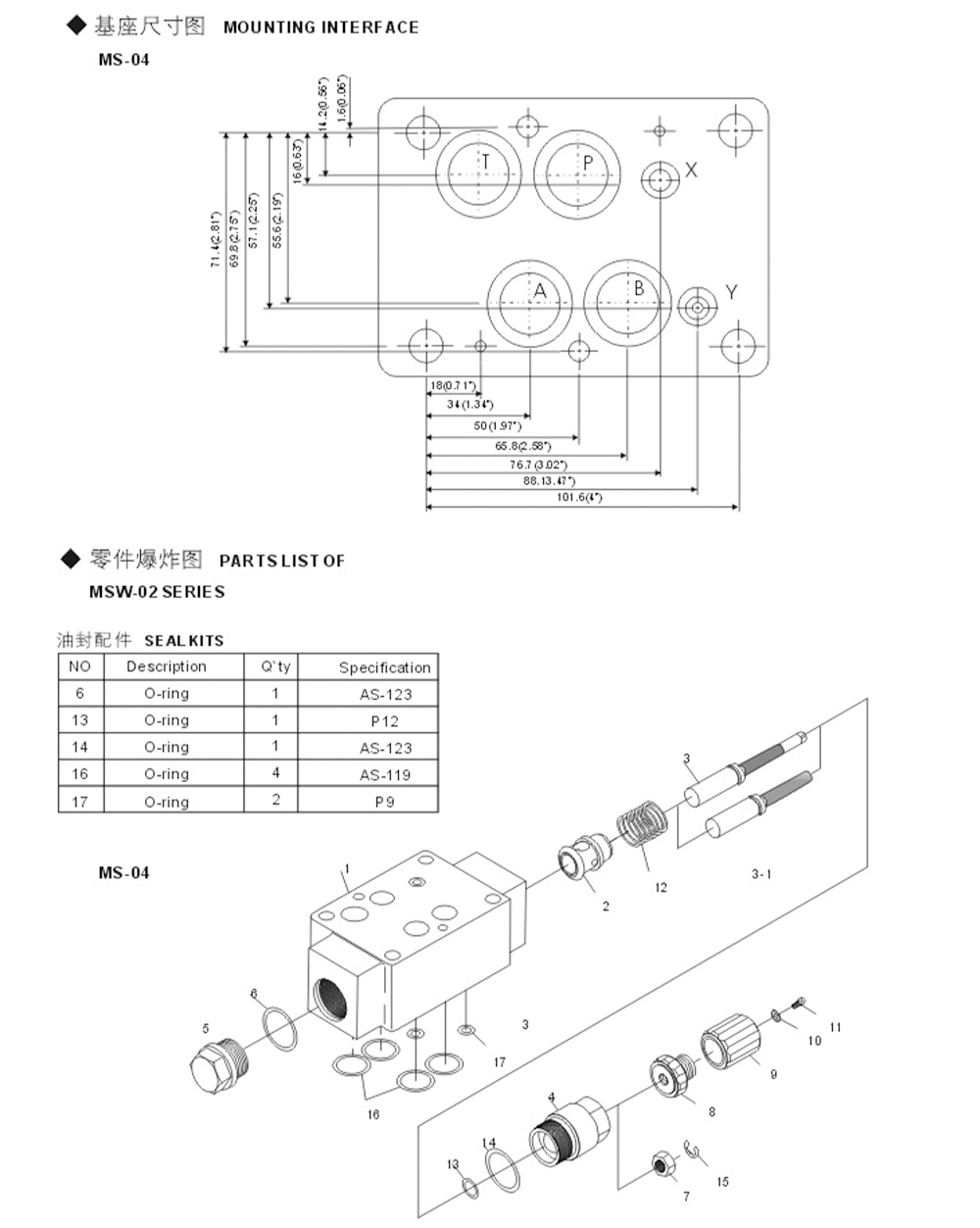

gnrqilrc1787202311


OEM / ODM Customization

We provide OEM and ODM services for hydraulic equipment manufacturers, distributors, and system integrators, including:

·Customized flow control requirements
·Valve configuration adjustment according to hydraulic circuit design
·Modular mounting specification customization
·Product labeling and packaging support
·Production based on customer drawings or technical requirements

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a Modular One-Way Flow Control Valve used for?
A Modular One-Way Flow Control Valve is used to regulate hydraulic flow and control actuator speed in one direction while allowing reverse free flow when required.

2. What models are available in this valve series?
The available models include MSA-02, MSA-03, MSA-04, MSA-06, MSW-02, MSW-03, MBW-04, and MBW-06. Different models are designed to meet various hydraulic system requirements.

3. What factors should be considered when selecting a one-way flow control valve?
Important factors include working pressure, required flow rate, speed control requirements, mounting standard, hydraulic circuit design, and installation conditions.

4. Are ISO, CETOP, NFPA, and DIN mounting standards supported?
Yes. The valve series is designed for modular mounting surfaces compatible with ISO, CETOP, NFPA, and DIN international standards.

5. How can I select the right Modular One-Way Flow Control Valve?
Provide your hydraulic system parameters, including pressure, flow rate, actuator requirements, equipment type, and installation conditions. Our technical team can help recommend a suitable valve model and configuration.
