Home / Products / Subplate Mounted Valves / Pressure Control Valves / Low Noise Two-Stage Solenoid Relief Valve

  • Low Noise Two-Stage Solenoid Relief Valve
  • Low Noise Two-Stage Solenoid Relief Valve
  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Hydraulic power units (HPUs)
·Injection molding machines
·Hydraulic presses
·Machine tools
·Industrial automation equipment
·Construction machinery
·Hydraulic manifold systems
·General hydraulic control circuits

Core Functions

Low Noise Hydraulic Operation
The Low Noise Two-Stage Solenoid Relief Valve is designed to minimize hydraulic operating noise while providing reliable pressure relief and protecting pumps, pipelines, and other hydraulic components.

Two-Stage Pressure Switching
The integrated solenoid allows the valve to switch between two preset pressure levels, improving hydraulic system flexibility and supporting automated pressure management.

Stable Pressure Regulation
The pilot-operated design helps maintain stable system pressure, reducing pressure fluctuations during continuous operation and improving overall system reliability.

High Pressure and Flow Capacity
Available in SBSG-03, SBSG-06, and SBSG-10 models, the Low Noise Two-Stage Solenoid Relief Valve provides a maximum operating pressure of 250 bar and a maximum flow rate of 100 L/min (26.42 gpm) based on Model SBSG-03.

Easy System Integration
The compact structure supports installation in a wide range of hydraulic systems, making the valve suitable for both new equipment and replacement applications.

Technical Specifications
Model Number Maximum Pressure(bar) Minimum adjustment pressure Maximum Flow Rate
(Ipm)
Weight
(kg)
SBSG-03 250(3571 psi) Please refer to the minimum adjustment pressure characteristics. 100(26.42gpm)
SBSG-06 200(52.84gpm) 6.4
SBSG-10 400(105.67gpm) 7.8

zefgufne1787189572

oubelqhc1787189576

Accessories
SBSG-03 HEX COUNTER-SINK SCREW M12×40L
SBSG-06 HEX COUNTER-SINK SCREW M16×50L
SBSG-10 HEX COUNTER-SINK SCREW M20×60L

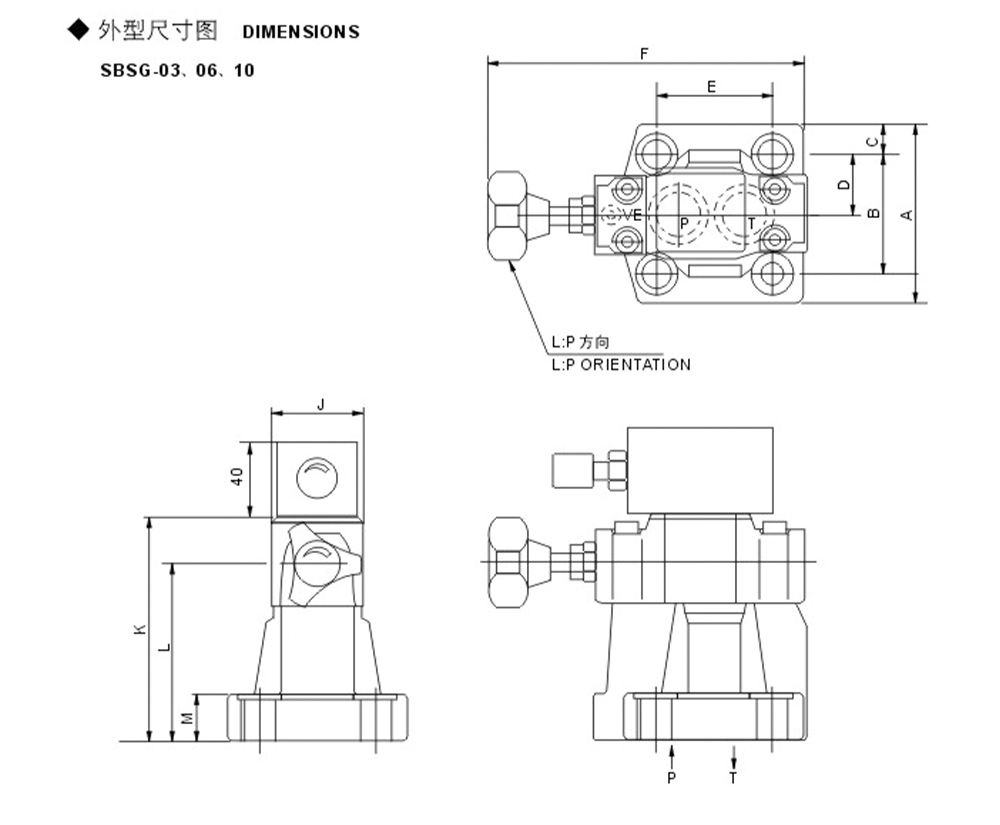

Model A B C D E F
 SBSG-03 76(2.99") 53.8(2.12") 11.1(0.44") 26.9(1.06") 53.8(2.12") 171(6.73")
 SBSG-06 104(4.09") 70(2.76") 17(0.67") 35(1.38") 66.7(2.63") 171(6.73")
 SBSG-10 120(4.72") 82.6(3.25") 18.7(0.74") 41.3(1.63") 88.9(3.50") 188(7.40")

Model G H J K L M
 SBSG-03 13.5(0.53") 21 (0.83") 51(2.0") 128(5.04") 102(4.02") 22(0.87")
 SBSG-06 17.5(0.69") 25(0.98") 51(2.0") 130(5.12") 1054.13") 27(1.06")
 SBSG-10 21.5(0.85") 32(1.26") 66(2.56") 127(5.0")  135(5.31") 33.5(1.32")

OEM / ODM Customization

We provide OEM and ODM services for low noise two-stage solenoid relief valves to meet different hydraulic system requirements.

·Pressure setting customization
·Solenoid voltage customization
·Two-stage pressure configuration
·Mounting interface customization
·Seal material selection
·Logo marking and packaging customization
·Hydraulic application support

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a Low Noise Two-Stage Solenoid Relief Valve used for?
A Low Noise Two-Stage Solenoid Relief Valve is used to protect hydraulic systems from overpressure while providing low-noise operation and electrically controlled two-stage pressure switching.

2. What are the advantages of two-stage pressure control?
Two-stage pressure control allows the hydraulic system to switch between two preset pressure levels, improving operational flexibility and supporting automated equipment.

3. What are the pressure and flow capabilities?
Based on Model SBSG-03, the valve provides a maximum operating pressure of 250 bar and a maximum flow rate of 100 L/min (26.42 gpm).

4. Which models are available?
Representative models include SBSG-03, SBSG-06, and SBSG-10, suitable for different hydraulic system sizes and pressure requirements.

5. How can I choose the right Low Noise Two-Stage Solenoid Relief Valve?
Selection should be based on the required operating pressure, flow capacity, two-stage pressure requirements, solenoid voltage, and hydraulic system configuration. The appropriate Low Noise Two-Stage Solenoid Relief Valve model should be selected according to the actual application.
