Specific Applications

·Hydraulic power units and hydraulic stations
·Machine tools and industrial machinery
·Injection molding equipment
·Press and forming machines
·Automated hydraulic systems

Core Functions

Hydraulic Sequence Control
The valve controls the operating order of hydraulic actuators by responding to preset pressure levels, helping different hydraulic components work in a coordinated sequence.

Integrated Check Valve Function
The built-in check valve allows free reverse flow in the required direction, improving system flexibility and simplifying hydraulic circuit design.

Stable Pressure Control
The valve helps maintain reliable hydraulic operation by controlling pressure-based switching between different circuits. The HC series supports a maximum pressure of 250 bar.

Multiple Flow Capacity Options
The series provides different sizes to match various hydraulic system requirements. For example, the HC G-03 model supports a maximum flow rate of 50 L/min (13.20 gpm).

Technical Specifications
Model Number Maximum Pressure(bar) Minimum adjustment pressure Maximum Flow Rate
(Ipm)
Weight
(kg)
HCG HG
HCG-03 250(3571psi) Please refer to the minimum adjustment pressure characteristics. 50(13.20gpm) 4.0  3.7
HCT-03 48  4.1
HCG-06 25(33.02gpm) 6.1  6.2
HCT-06 7.4  7.8
HCG-10 280(73.97gpm) 11.0  12.0
HCT-10 13.8  13.8

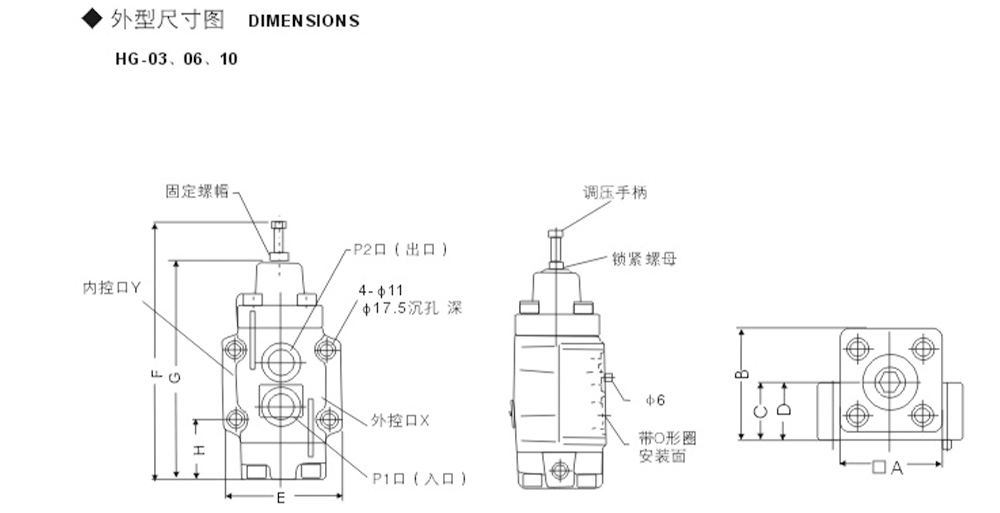

llekgckk1787192506

Model Number A B C D E F G H
HG-03 60  67  35  39  89  191  163  49.6
HG-06 73  79  40  39  102  221  188  51
HG-10 86  92  46  39  119  272  233  62

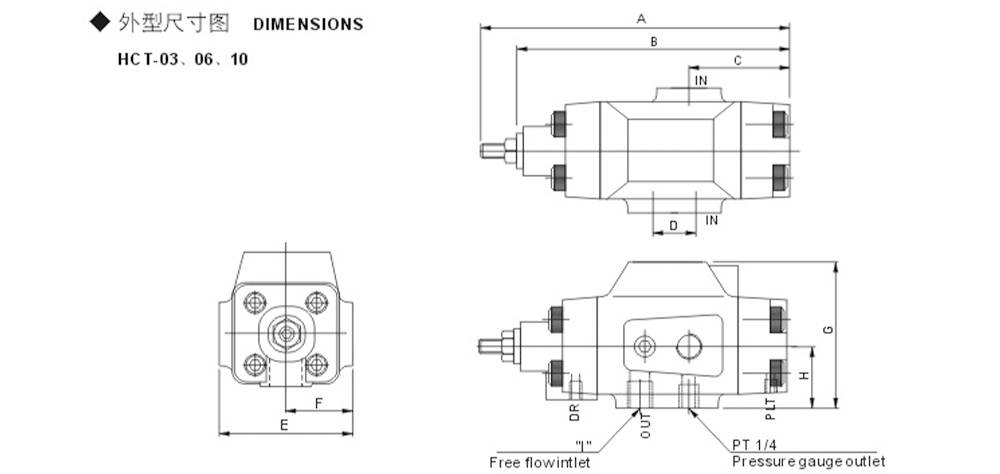

cvutjggq1787192519

Model A B C D E F G H I
HCT-03 194(7.84") 169(6.56") 61(2.40") 28(1.02") 78(3.07") 39(1.54”) 92(3.62") 39(1.54") PT3/8
HCT-06 220(8.66") 192(7.56") 68(2.68") 35(1.38") 98(3.86") 49(1.93") 120(4.72") 51(2.01") PT3/4
HCT-10 272(10.7") 233(9.17”) 84(3.31") 52(2.05") 132(5.20") 66(2.60") 152(5.98") 66(2.60") PT11/4

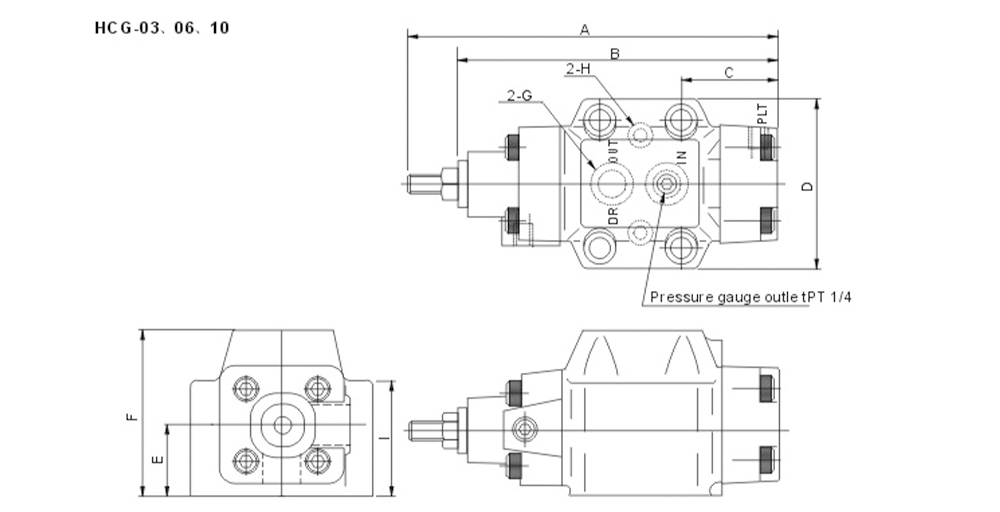

qksnabvz1787192530

Model A B C D E F G H I
HCG-03 190(7.48") 170(6.69") 55.5(2.19") 90(3.54") 35(1.38") 88(3.46") P18 P10 80(2.36")
HCG-06 224(8.82") 197(7.76") 55.5(2.19") 101(3.98") 42(1.65") 107(4.21") P28 P10 70(2.76")
HCG-10 264(10.39") 2353(9.25") 60(2.36") 118(4.65") 49(1.93") 130(5.12") P40 P10 79(3.11")

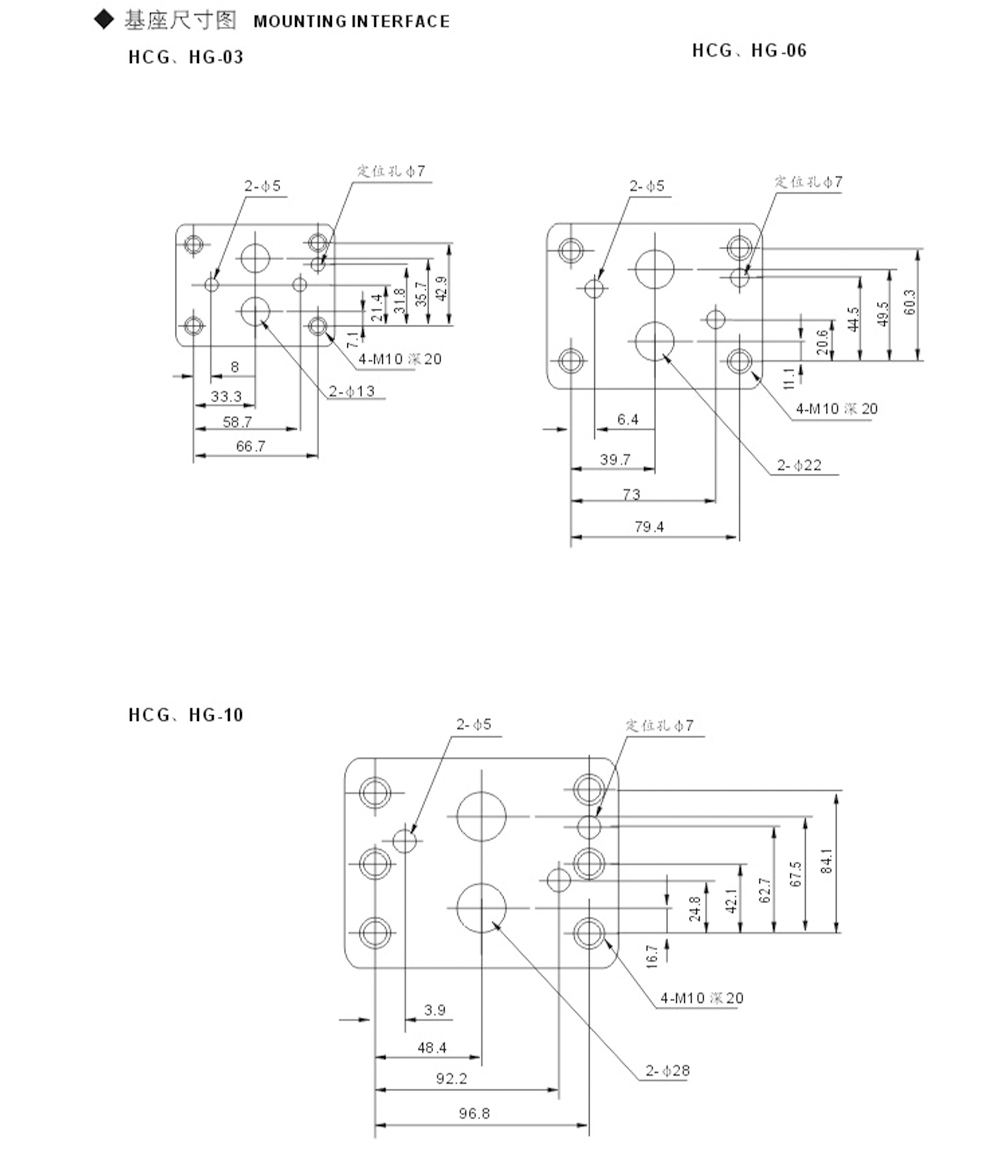

lddyikwz1787192542


OEM / ODM Customization

We provide OEM and ODM solutions for hydraulic equipment manufacturers, distributors, and system integrators, including:

·Valve configuration adjustment according to hydraulic circuit requirements
·Customized pressure setting range
·Port size and mounting specification customization
·Product labeling and packaging support
·Production based on customer drawings or technical requirements

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a Subplate Sequence Valve with Check Valve used for?
A Subplate Sequence Valve with Check Valve is used to control the operation sequence of hydraulic actuators. It allows hydraulic components to operate in a specific order according to system pressure requirements.

2. What models are available for this valve series?
The available models include HC G-03, HC T-03, HC G-06, HC T-06, HC G-10, and HC T-10. Different models are designed for different hydraulic circuit requirements and installation conditions.

3. What factors should be considered when selecting a sequence valve?
Key factors include system pressure, required flow rate, mounting type, connection size, pressure setting requirements, and hydraulic circuit design.

4. Can this hydraulic valve be customized for OEM projects?
Yes. OEM customization options include valve configuration, pressure settings, connection specifications, product marking, and packaging based on customer requirements.

5. How can I choose the right Subplate Sequence Valve with Check Valve?
Provide your hydraulic system details, such as working pressure, flow rate, equipment type, and installation requirements. Technical support can help select a suitable valve model and configuration.
