Home / Products / Subplate Mounted Valves / Pressure Control Valves / Subplate Solenoid Unloading Relief Valve

  • Subplate Solenoid Unloading Relief Valve
  • Subplate Solenoid Unloading Relief Valve
  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Hydraulic power units (HPUs)
·Hydraulic presses
·Injection molding machines
·Machine tools
·Industrial automation systems
·Construction machinery
·Hydraulic manifold assemblies
·Hydraulic circulation systems

Core Functions

Solenoid-Controlled Unloading
The Subplate Solenoid Unloading Relief Valve uses solenoid control to achieve remote unloading operation, allowing hydraulic systems to reduce unnecessary pump load during standby conditions.

Reliable Pressure Protection
The valve provides stable pressure relief to protect pumps, pipelines, and hydraulic components from excessive system pressure.

Stable Hydraulic Operation
The Subplate Solenoid Unloading Relief Valve helps maintain consistent pressure performance during continuous operation, improving hydraulic system reliability.

High Pressure and Flow Capacity
Available in DAW-10, DAW-20, and DAW-30 models, the valve supports a maximum operating pressure of 315 bar and a maximum flow rate of 100 L/min (26.42 gpm) based on Model DAW-10.

Easy Subplate Installation
The subplate-mounted design simplifies installation, maintenance, and replacement, making it suitable for various industrial hydraulic systems.

Technical Specifications
Model Number Maximum Pressure(bar) Minimum adjustment pressure Maximum Flow Rate
(Ipm)
Weight
(kg)
DAVV-10 315(4500 psi) Please refer to the minimum adjustment pressure characteristics. 100(26.42gpm) 5.8
DAW-20 200(52.84gpm) 7.0
DAW-30 400(105.67gpm) 7.8

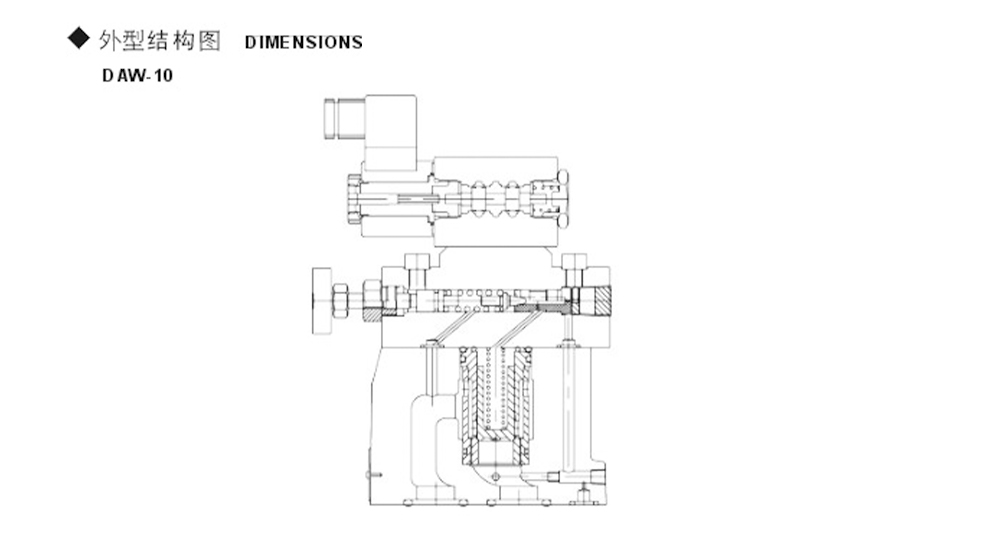

pakjttjd1787190543

gacxohgg1787190548

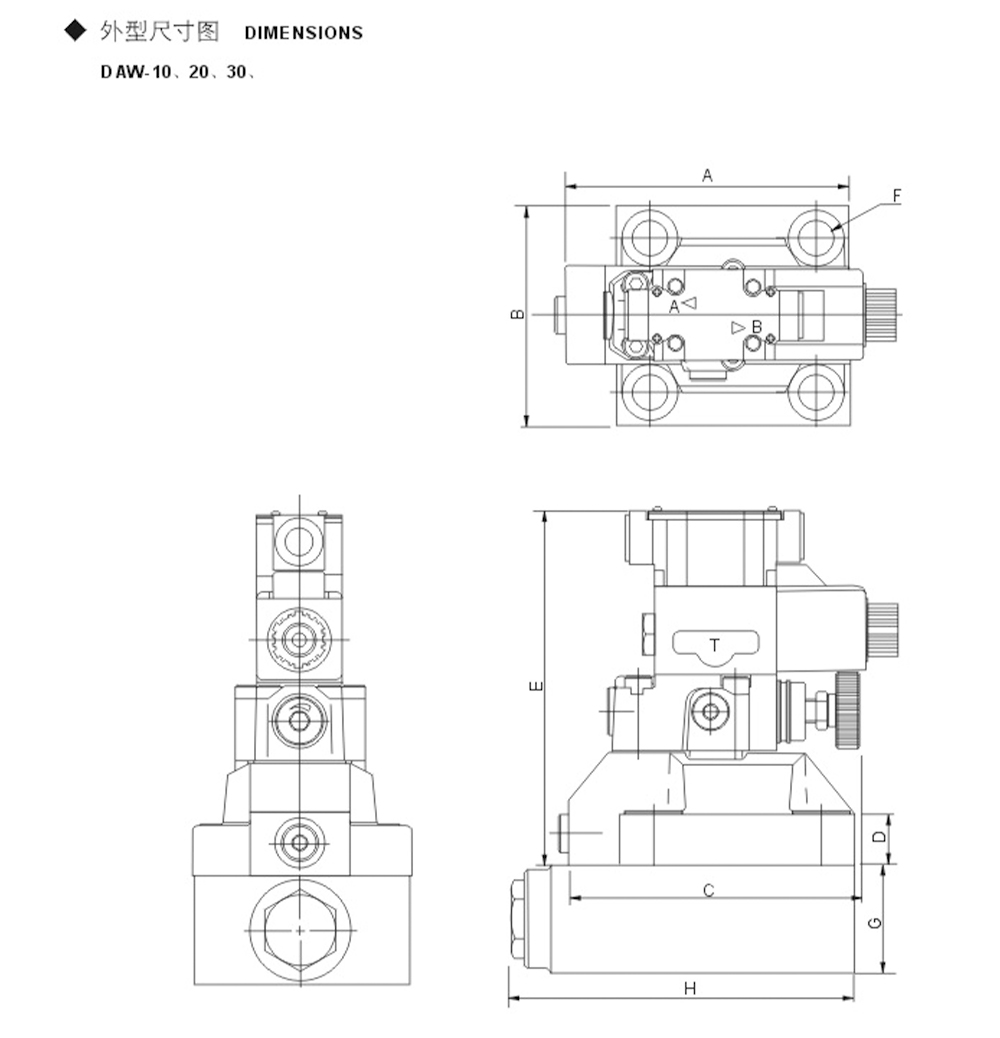

Model A B C D E F G H
DAW-10 91(3.58") 78(3.07") 135(5.31") 26(1.02") 183(7.20") 14(0.55") 40(1.57") 132(5.20")
DAW-20 116(4.57") 100(3.94") 144(5.67") 26(1.02") 183(7.20") 18(0.71") 52(2.05") 167(6.57")
DAW-30 148(5.83") 115(4.53") 154(6.06") 26(1.02") 183(7.20") 20(0.79") 67(2.64") 198(7.80")

OEM / ODM Customization

We provide OEM and ODM services for solenoid unloading relief valves to meet different hydraulic system requirements.

·Pressure setting customization
·Solenoid voltage customization
·Mounting interface customization
·Seal material selection
·Logo marking and packaging customization
·Hydraulic circuit application support

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a Subplate Solenoid Unloading Relief Valve used for?
A Subplate Solenoid Unloading Relief Valve is used to protect hydraulic systems from overpressure and provide electrically controlled pump unloading for improved system efficiency.

2. What is the advantage of solenoid control?
Solenoid control enables remote unloading operation, allowing the hydraulic system to be integrated with automatic control systems.

3. What are the pressure and flow capabilities?
Based on Model DAW-10, the valve provides a maximum operating pressure of 315 bar and a maximum flow rate of 100 L/min (26.42 gpm).

4. Which models are available?
Representative models include DAW-10, DAW-20, and DAW-30, suitable for different hydraulic system flow and installation requirements.

5. How can I select the right Subplate Solenoid Unloading Relief Valve?
Selection should consider operating pressure, flow rate, solenoid requirements, mounting size, and hydraulic circuit design. The correct Subplate Solenoid Unloading Relief Valve model should be selected according to the actual application conditions.
