Specific Applications

·Industrial hydraulic systems
·Hydraulic power units (HPUs)
·Machine tools
·Construction machinery
·Agricultural machinery
·Hydraulic presses
·Material handling equipment
·Hydraulic test systems

Core Functions

Manual Flow Direction Control
The Manual Directional Control Valve uses a lever-operated mechanism to manually switch hydraulic oil flow paths, providing direct and reliable control without electrical power requirements.

Stable Hydraulic Operation
The optimized valve body design reduces flow force during operation, helping improve switching stability and reduce vibration during hydraulic system operation.

Low Leakage Performance
The valve structure is designed for low internal leakage, low operating noise, and smooth movement, helping maintain stable hydraulic system performance and reduce maintenance requirements.

High Pressure Resistance
The five-groove valve body design improves pressure resistance and back-pressure capability, making the valve suitable for industrial hydraulic applications with demanding operating conditions.

Compact Installation Design
The compact valve body structure reduces installation space requirements and allows easier integration into hydraulic manifolds and equipment systems.

Technical Specifications
Model Number Maximum Flow Rate
(L/min)
Maximum Operating Pressure
(MPa)
Allowable Back Pressure
(MPa)
Weight
(kg)
Tubular Panel-type Tubular Panel-type Tubular Panel-type
DMT-02 DMG-02 30  30  25 2 1.5
DMT-03 DMG-03 50  50  10  4.5  3.7

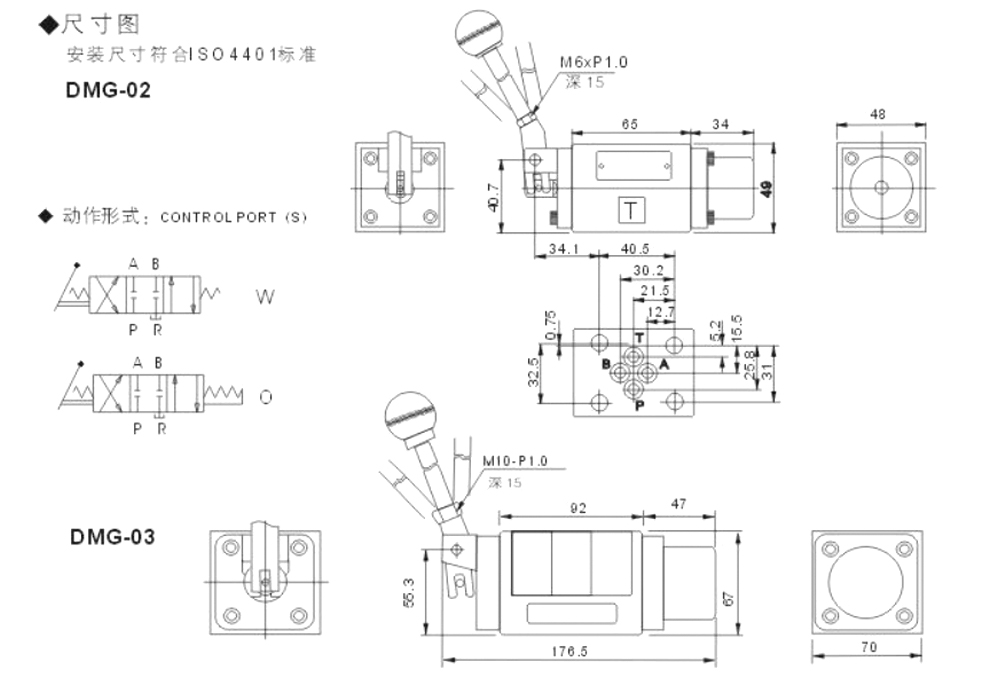

ManualDirectionalControlValve


OEM / ODM Customization

We provide OEM and ODM customization services for manual hydraulic directional control valves to meet different application requirements.
·Valve configuration customization
·Lever operation design customization
·Mounting interface customization
·Port size customization
·Seal material selection
·Surface marking and logo customization
·Customized packaging solutions

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a manual directional control valve used for?
A manual directional control valve is used to manually control hydraulic oil flow direction in hydraulic systems, especially in applications where simple and reliable operation is required.

2. What are the advantages of lever-operated hydraulic valves?
Lever operation provides direct control, simple installation, and does not require electrical power, making it suitable for various industrial hydraulic applications.

3. Is this valve compatible with international mounting standards?
Yes. The valve is designed to be compatible with ISO, CETOP, NFPA, and DIN mounting standards, allowing easier integration into different hydraulic systems.

4. What applications are suitable for this type of valve?
It is commonly used in industrial machinery, hydraulic power units, construction equipment, agricultural machinery, and hydraulic test systems.

5. How can I choose the right Manual Directional Control Valve model?
Selection depends on system pressure, flow requirements, mounting specifications, hydraulic circuit design, and operating conditions. The appropriate Manual Directional Control Valve Lever Operated Flow Control model should be selected according to the actual application requirements.
