  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Industrial hydraulic systems
·Heavy-duty machinery
·Hydraulic power units (HPUs)
·Injection molding equipment
·Construction machinery
·Mobile hydraulic equipment
·Automation systems
·Hydraulic presses and forming equipment

Core Functions

Combined Electro-Hydraulic Control
The Electro-Hydraulic Directional & Proportional Control Valve combines a solenoid-operated pilot valve with a hydraulic main valve to control spool displacement, enabling precise hydraulic flow direction and proportional adjustment.

Large Flow Capacity
The electro-hydraulic proportional valve is designed for applications requiring high hydraulic flow. Based on Model DSHG-03, it supports a maximum pressure of 315 bar and a maximum flow rate of 200 L/min (52.8 gpm).

Stable Switching Performance
The optimized spool design reduces flow force during operation, improving switching stability and response performance. The five-groove valve body design supports high-pressure operation and back-pressure resistance.

Long Service Life
The valve has passed 10 million-cycle durability testing, helping ensure stable performance for long-term industrial applications.

Flexible Configuration
The valve can be equipped with a P-port pilot pressure cartridge and stroke adjustment device to improve operating characteristics and adapt to different hydraulic system requirements.

The performance data above are based on Model DSHG-03.

Technical Specifications
Model Number Maximum Pressure(bar) Maximum Flow Rate
(Ipm)
Weight
(kg)
DSHG-03 315(4500 psi) 200(52.8 gpm)
DSHG-04 300(79.25 gpm) 8.8
DSHG-06 500(132 gpm) 13.7
DSHG-10 1100(290 gpm) 45.3

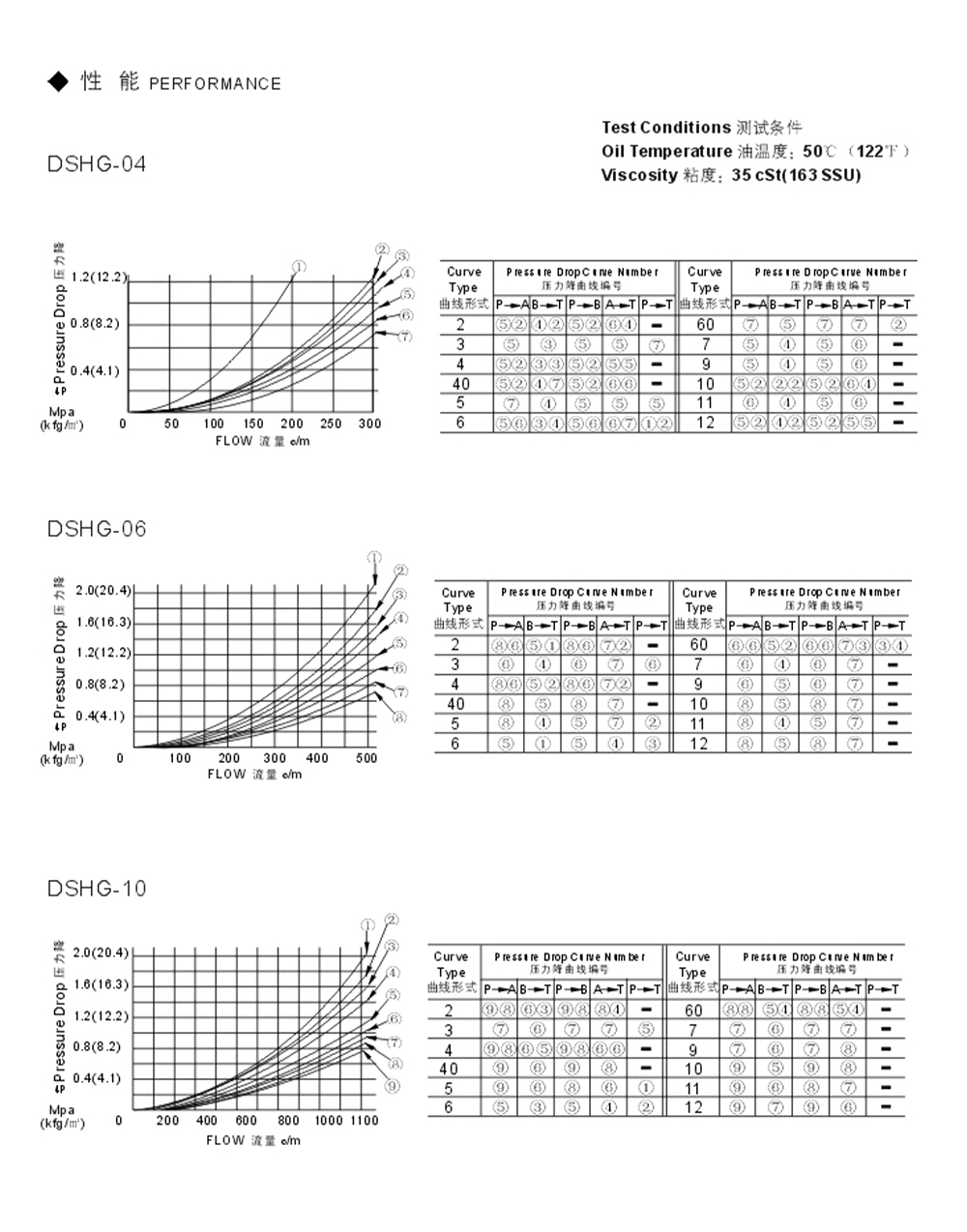

zkotymaf1787126978

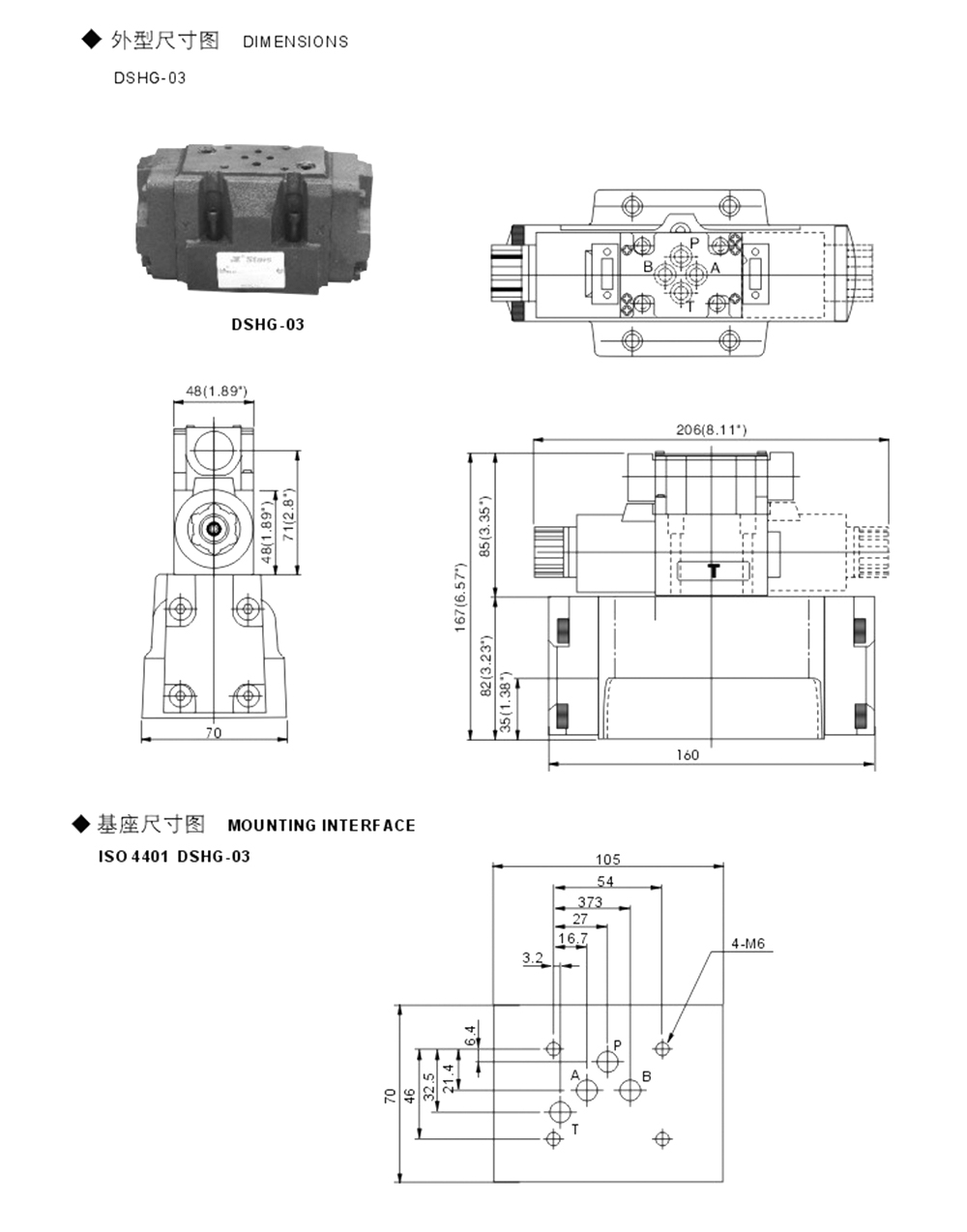

rzakrjsl1787126986

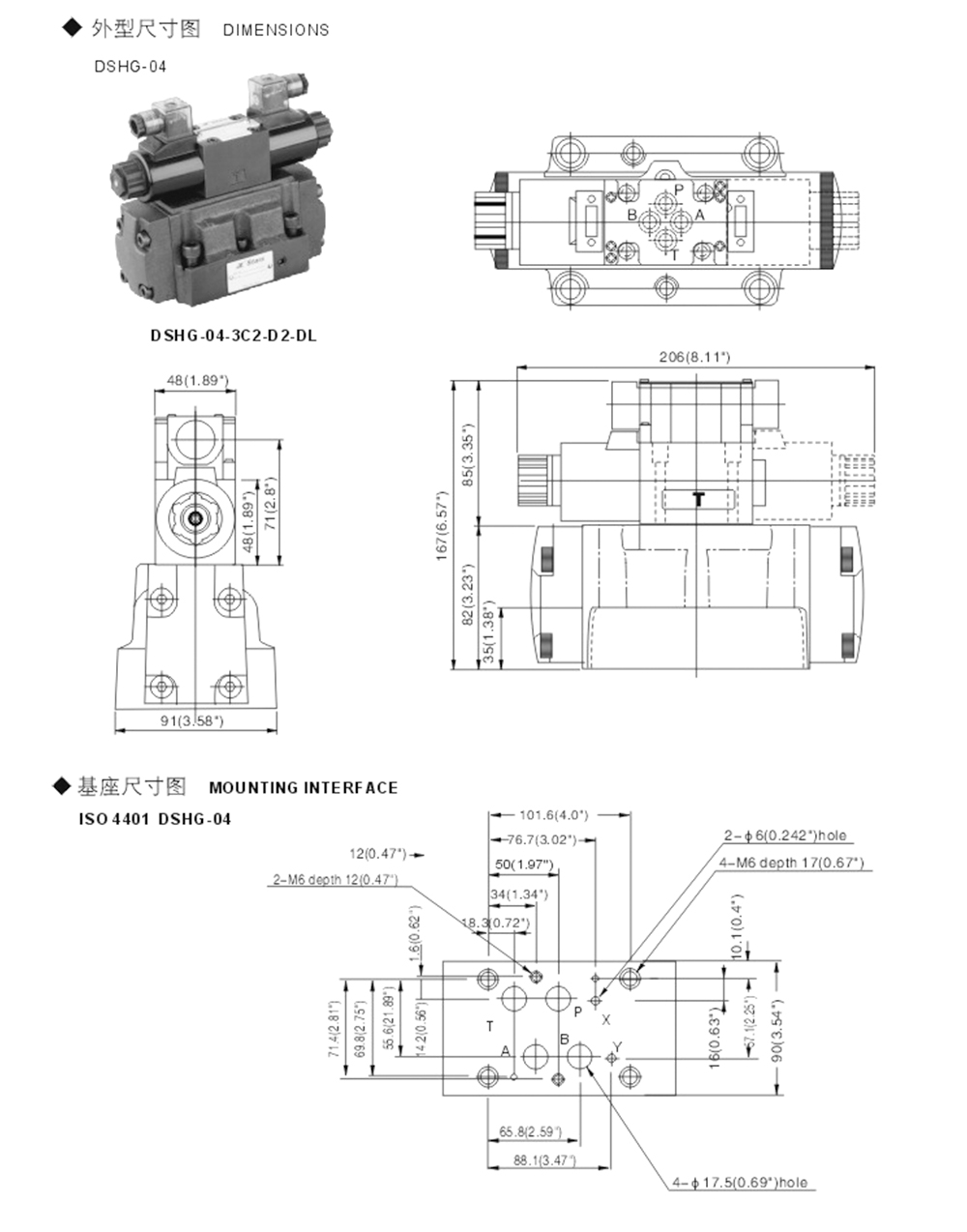

cpjxdcyg1787126997

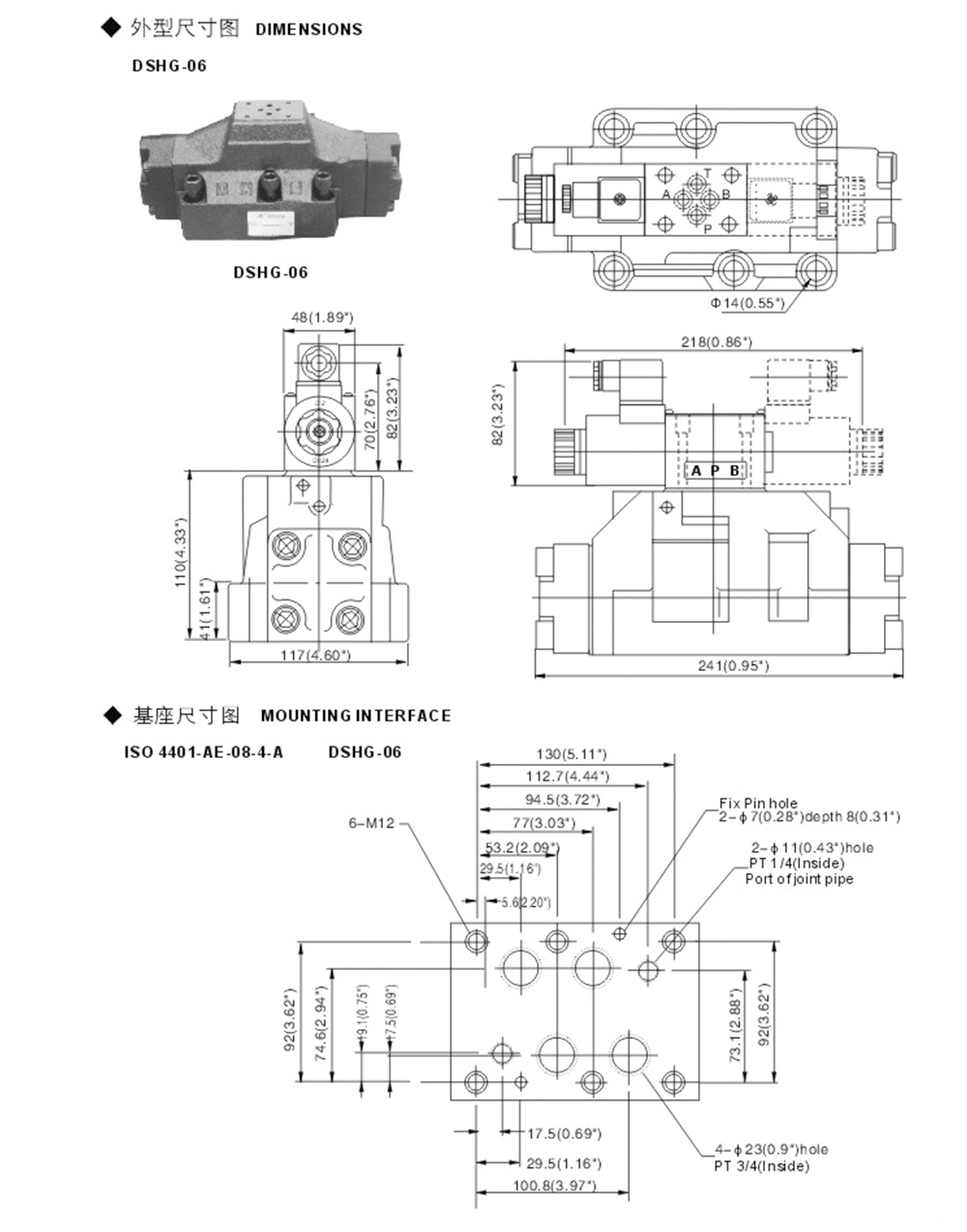

kudvtsvq1787127003

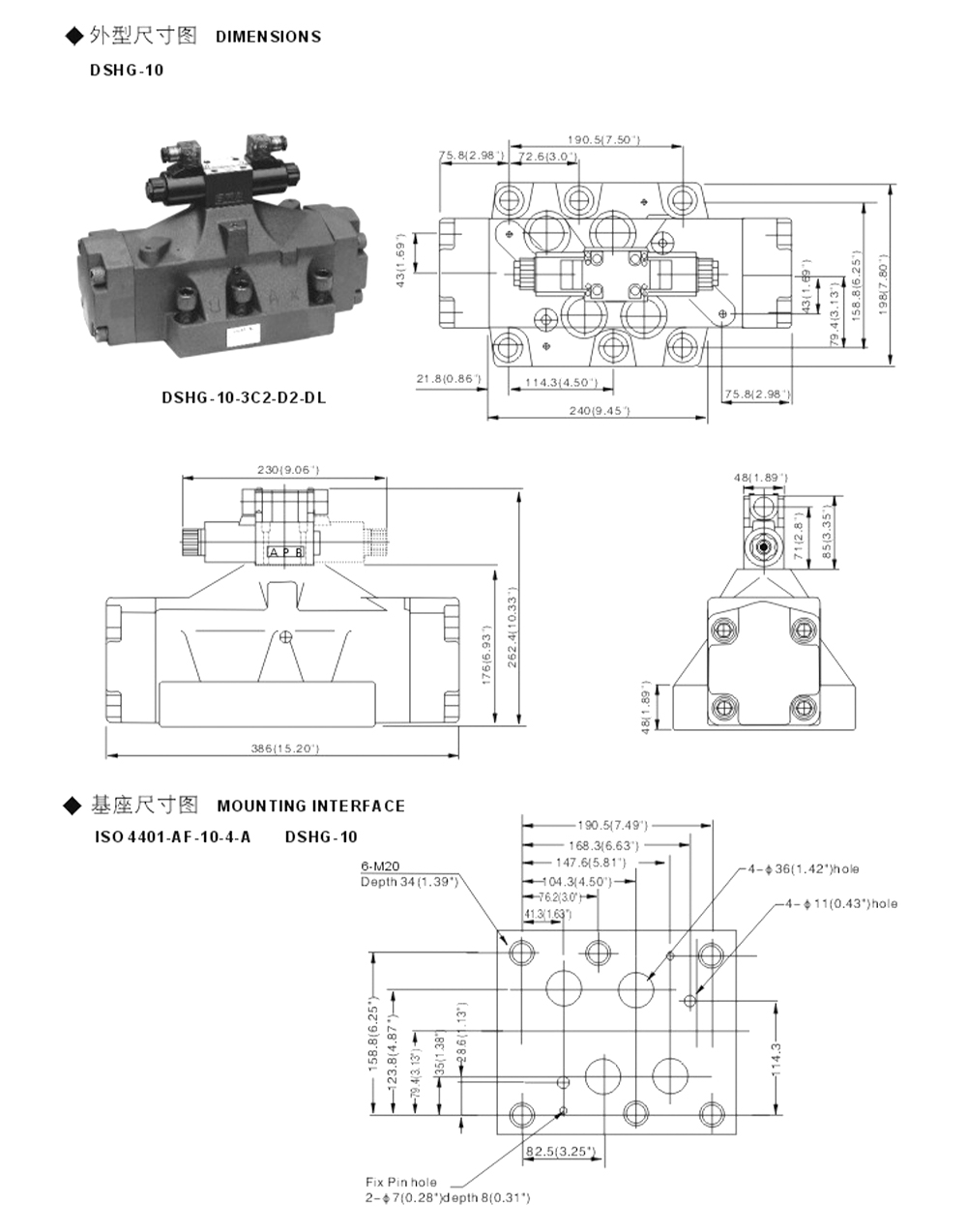

xzlwlsmy1787127007


OEM / ODM Customization

We provide OEM and ODM services for electro-hydraulic proportional control valves to meet different hydraulic system requirements.
·Pilot valve configuration customization
·Pressure and flow adjustment customization
·Stroke adjustment device integration
·Mounting interface customization
·Coil and connector customization
·Logo marking and customized packaging
·Hydraulic system integration support

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is an electro-hydraulic directional and proportional control valve used for?
An electro-hydraulic directional and proportional control valve is used to control hydraulic flow direction and regulate actuator movement in systems requiring precise hydraulic control.

2. Which models are available in this series?
Representative models include DSHG-03, DSHG-04, DSHG-06, and DSHG-10. Different models are available for various flow requirements and hydraulic system designs.

3. What is the maximum flow capacity of this valve?
Based on Model DSHG-03, the maximum flow capacity is 200 L/min (52.8 gpm), with a maximum operating pressure of 315 bar.

4. What are the advantages of electro-hydraulic proportional control?
The electro-hydraulic control structure provides fast switching, large flow capacity, and improved control accuracy by combining electrical pilot control with hydraulic main valve operation.

5. How can I choose the right Electro-Hydraulic Directional & Proportional Control Valve model?
Selection depends on operating pressure, flow requirement, control method, mounting standard, and hydraulic circuit design. The appropriate Electro-Hydraulic Directional & Proportional Control Valve model should be selected according to the actual application conditions.
