  • Rexroth Type Solenoid Directional Control Valve
  • Rexroth Type Solenoid Directional Control Valve
  • Rexroth Type Solenoid Directional Control Valve
  • Rexroth Type Solenoid Directional Control Valve
  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Industrial hydraulic systems
·Hydraulic power units (HPUs)
·Machine tools
·Injection molding equipment
·Automation machinery
·Construction equipment
·Mobile hydraulic machinery
·Hydraulic manifold systems

Core Functions

Reliable Directional Control
The Rexroth Type Solenoid Directional Control Valve controls hydraulic oil flow direction through solenoid operation, enabling accurate switching between different hydraulic circuit functions.

Wet Solenoid Design
The wet solenoid structure helps reduce switching noise, improve service life, and maintain stable operation in high-pressure hydraulic environments.

Optimized Spool Structure
The optimized spool design reduces flow force during valve movement, improving switching stability and response performance in continuous hydraulic operations.

High Pressure Performance
Based on Model 3WE 6D, the valve supports a maximum pressure of 315 bar and a maximum flow rate of 100 L/min (26.4 gpm), making it suitable for demanding industrial hydraulic applications.

Compact Installation Design
The compact valve body reduces system installation space requirements. The five-groove valve body design improves pressure resistance and back-pressure capability.

Technical Specifications
Model Number Maximum Pressure
(bar)

Maximum Flow Rate
(Ipm)

Weight
(kg)
3WE6D 315(4500 psi) 100(26.4gpm) 1.5
4WE6E 1.9
3WE10D 120(31.70gpm) 3.5
4VE 10E 4.8

Type of coil Voltage Starting amps
(A)
Holding amps
(A)
Holding watts
(W)
Allowable voltage
fuctuation
(%)
A1 AC110V 2.2  0.46  28  +10%~-15%
A2 AC220V 1.1  0.26  25  +10%~-15%
R1 AC110V - 0.31  32  +10%~-15%
R2 AC220V - 0.18  32  +10%~-15%
D1 DC12 - 2.5  30  +10%~-15%
D2 DC24 - 1.25  30  +10%~-15%

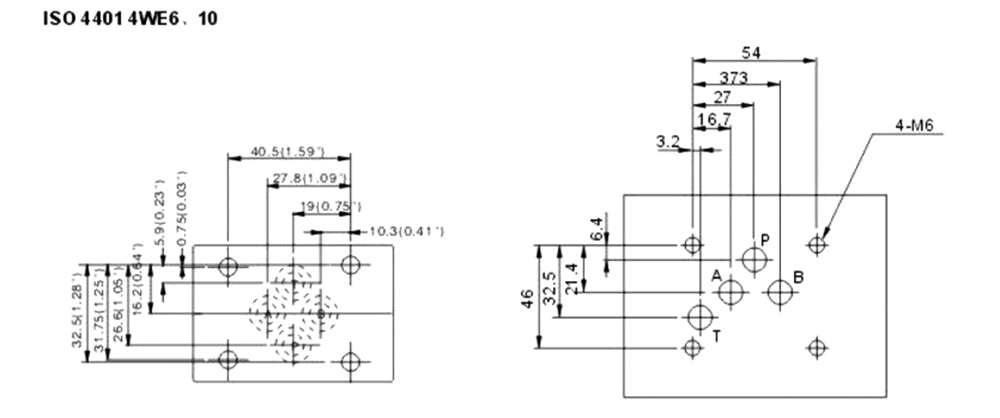

RexrothTypeSolenoidDirectionalControlValve


OEM / ODM Customization

We provide OEM and ODM services for hydraulic solenoid directional control valves to meet different application requirements.
·Coil voltage customization
·Connector and wiring customization
·Valve configuration customization
·Mounting interface customization
·Seal material selection
·Logo marking and customized packaging
·Hydraulic system integration support

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a Rexroth type solenoid directional control valve used for?
A Rexroth type solenoid directional control valve is used to control hydraulic oil flow direction in industrial hydraulic systems. It is commonly applied in equipment requiring stable and reliable hydraulic switching.

2. Which models are available for this series?
Representative models include 3WE 6D, 4WE 6E, 3WE 10D, and 4WE 10E. Different models are available for various hydraulic flow and installation requirements.

3. What are the advantages of the wet solenoid design?
The wet solenoid design helps reduce switching noise, improve durability, and maintain stable valve performance under high-pressure hydraulic conditions.

4. Is this valve compatible with international mounting standards?
Yes. The valve is designed to be compatible with ISO, CETOP, NFPA, and DIN mounting standards, allowing easier integration into different hydraulic systems.

5. How can I choose the right Rexroth Type Solenoid Directional Control Valve model?
Selection depends on operating pressure, required flow rate, mounting standard, hydraulic circuit design, and control requirements. The appropriate Rexroth Type Solenoid Directional Control Valve model should be selected according to the actual application conditions.
