  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Industrial hydraulic control systems
·Hydraulic power units (HPUs)
·Machine tools
·Injection molding equipment
·Automation machinery
·Construction machinery
·Mobile hydraulic equipment
·Hydraulic manifold systems

Core Functions

High Response Directional Control
The Solenoid Directional Control Valve adopts an optimized spool design to reduce flow force during operation, enabling faster switching response and stable hydraulic control.

Wet Solenoid Structure
The wet solenoid design helps reduce operating noise, improve durability, and support reliable operation under high-pressure hydraulic conditions.

High Pressure Capability
Based on Model DSG-01-2B2, the valve supports a maximum pressure of 315 bar and a maximum flow rate of 100 L/min (26.4 gpm), making it suitable for demanding industrial hydraulic applications.

Compact and Reliable Design
The five-groove valve body design improves pressure resistance and back-pressure capability. The compact structure helps reduce installation space requirements in hydraulic systems.

Enhanced Electrical Safety
The solenoid is covered with BMC fire-resistant material, providing improved insulation performance and protection for long-term operation.

Technical Specifications
Model Number Maximum Pressure
(bar)
Maximum Flow Rate
(Ipm)
Weight
(kg)
DSG-01-2B2 315(4500 psi) 100(26.4gpm) 1.5
DSG-01-3C2 1.9
DSG-02-2B2 250(3571 psi) 1.5
DSG-02-3C2 1.9
DSG-03-2B2 120(31.70gpm) 3.5
DSG-03-3C2 4.8

Type of coil Voltage Starting amps
A
Holding amps
A
Holding watts
W
Allowable voltage
fuctuation
A1 AC110V 2.2 0.46 28 +10%~-15%
A2 AC220V 1.1 0.26 25 +10%~-15%
R1 AC110V - 0.31 32 +10%~-15%
R2 AC220V - 0.18 32 +10%~-15%
D1 DC12 - 2.5 30 +10%~-15%
D2 DC24 - 1.25 30 +10%~-15%

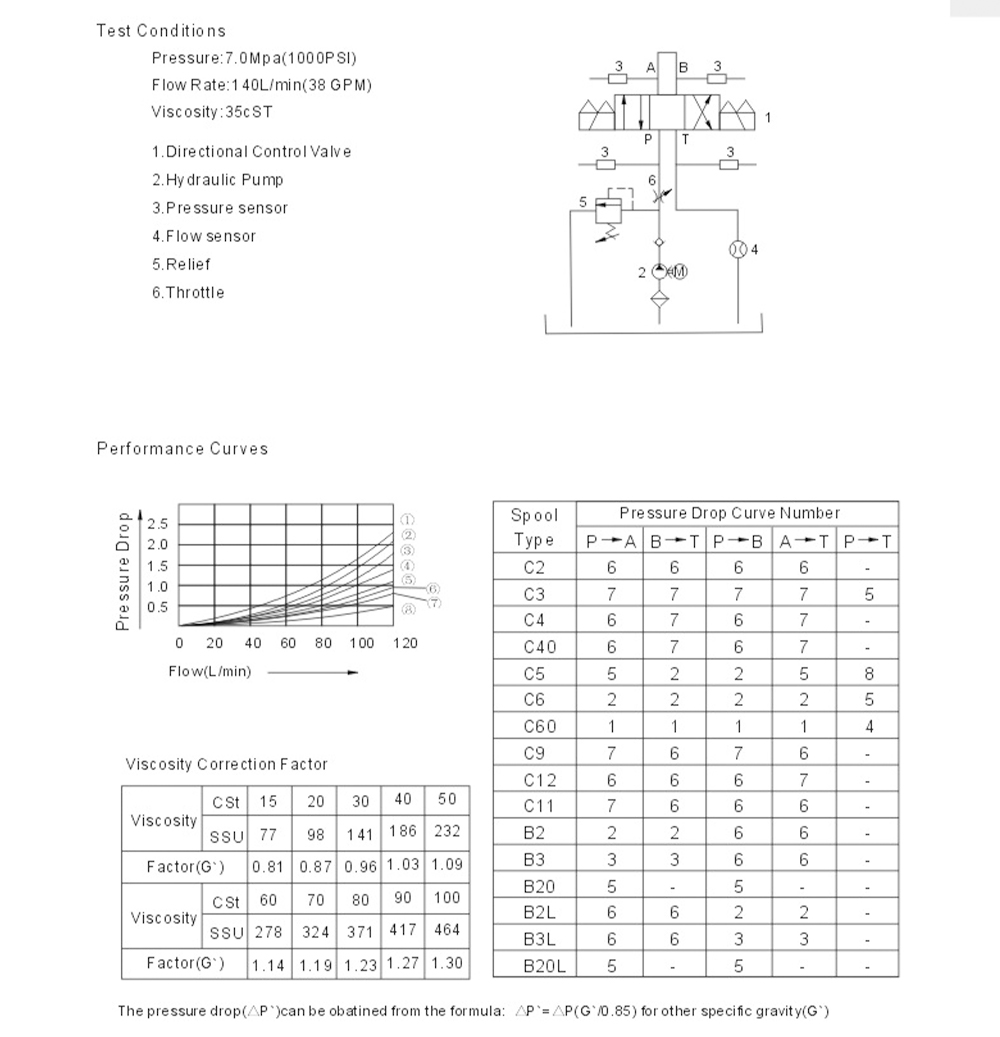

mhpxiepo1787125595

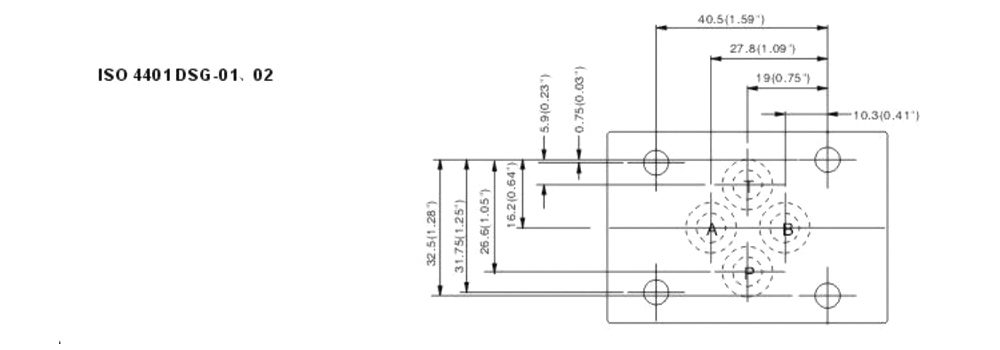

kutkuepl1787125602

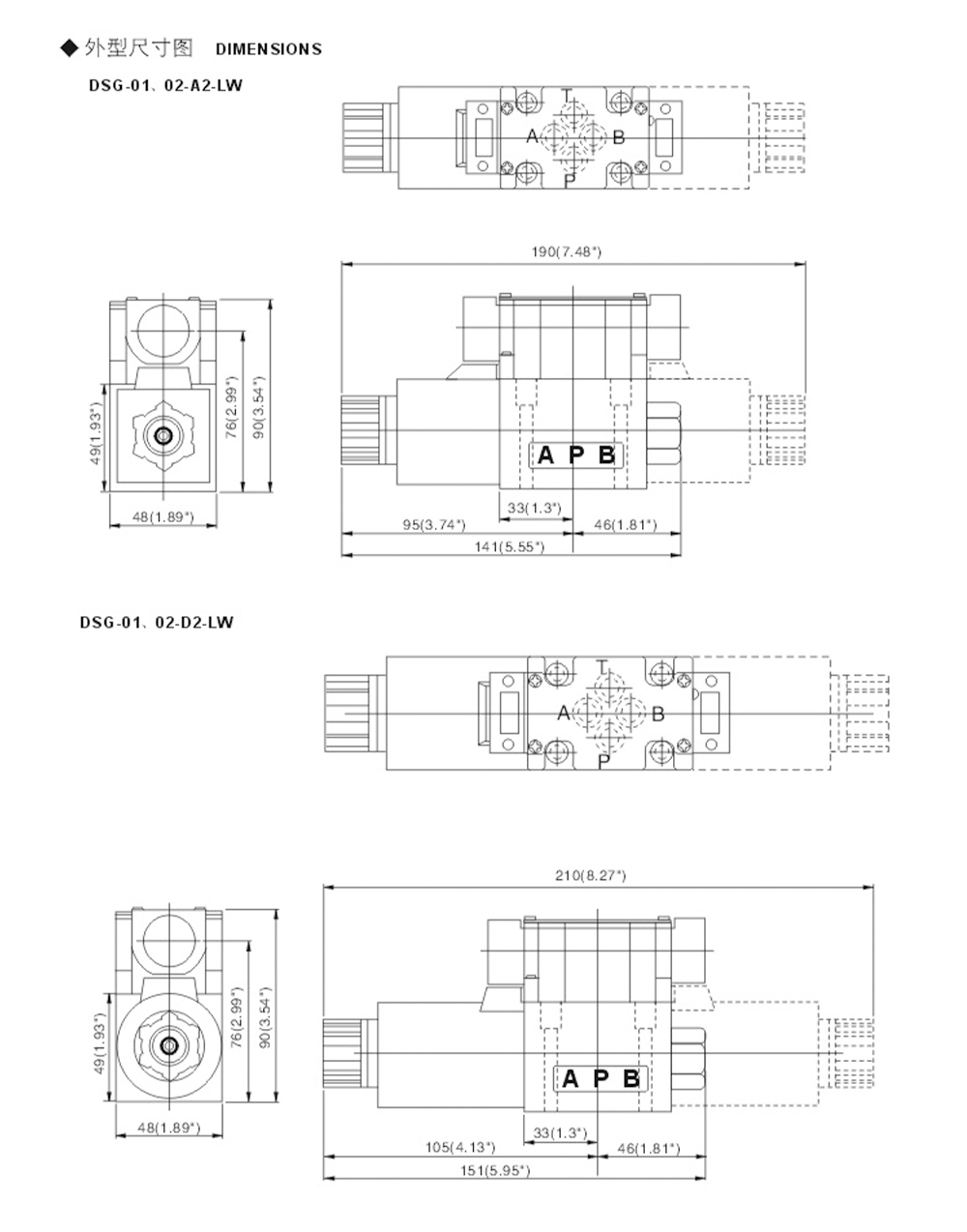

vfapjnef1787125610

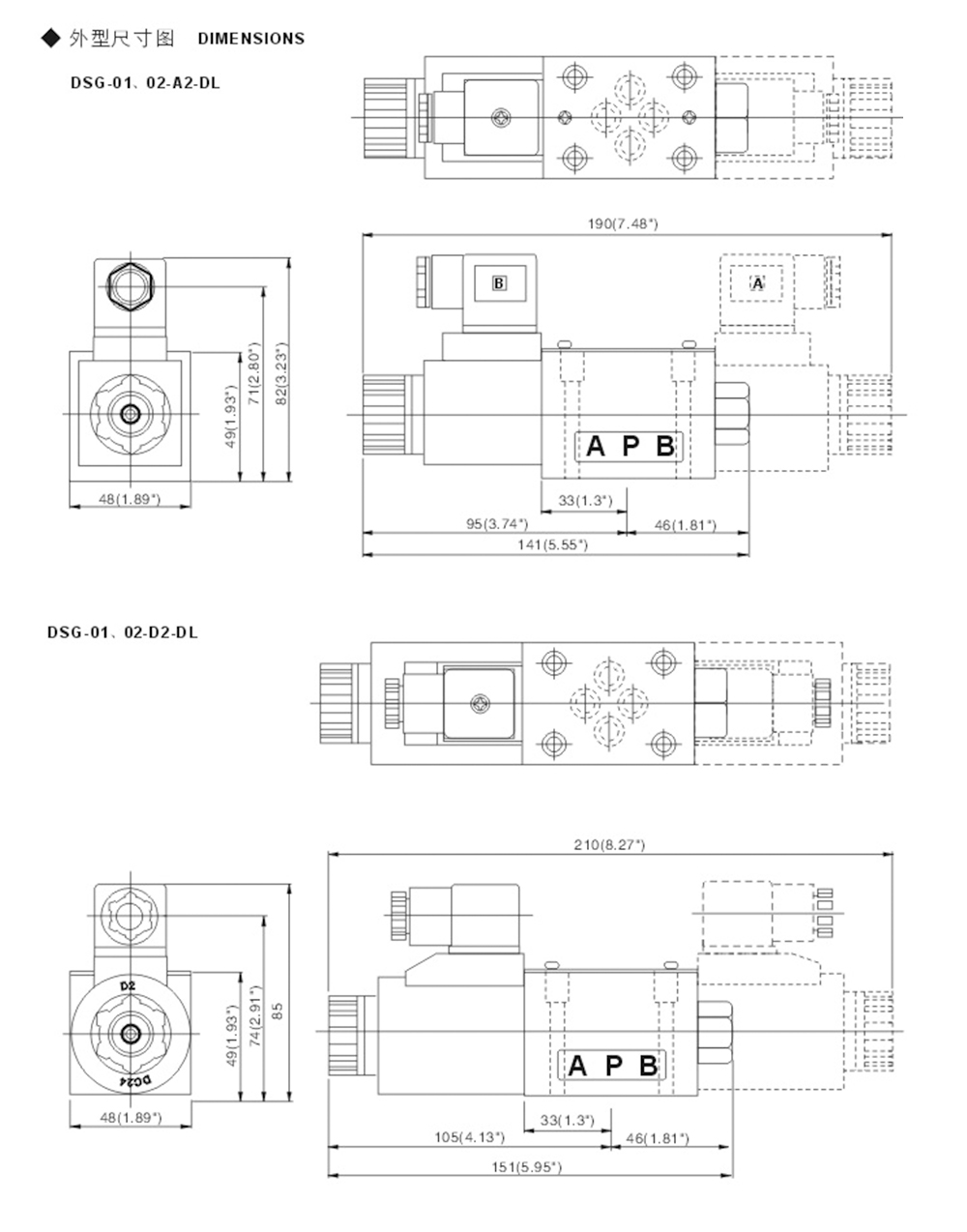

osqzrclp1787125616

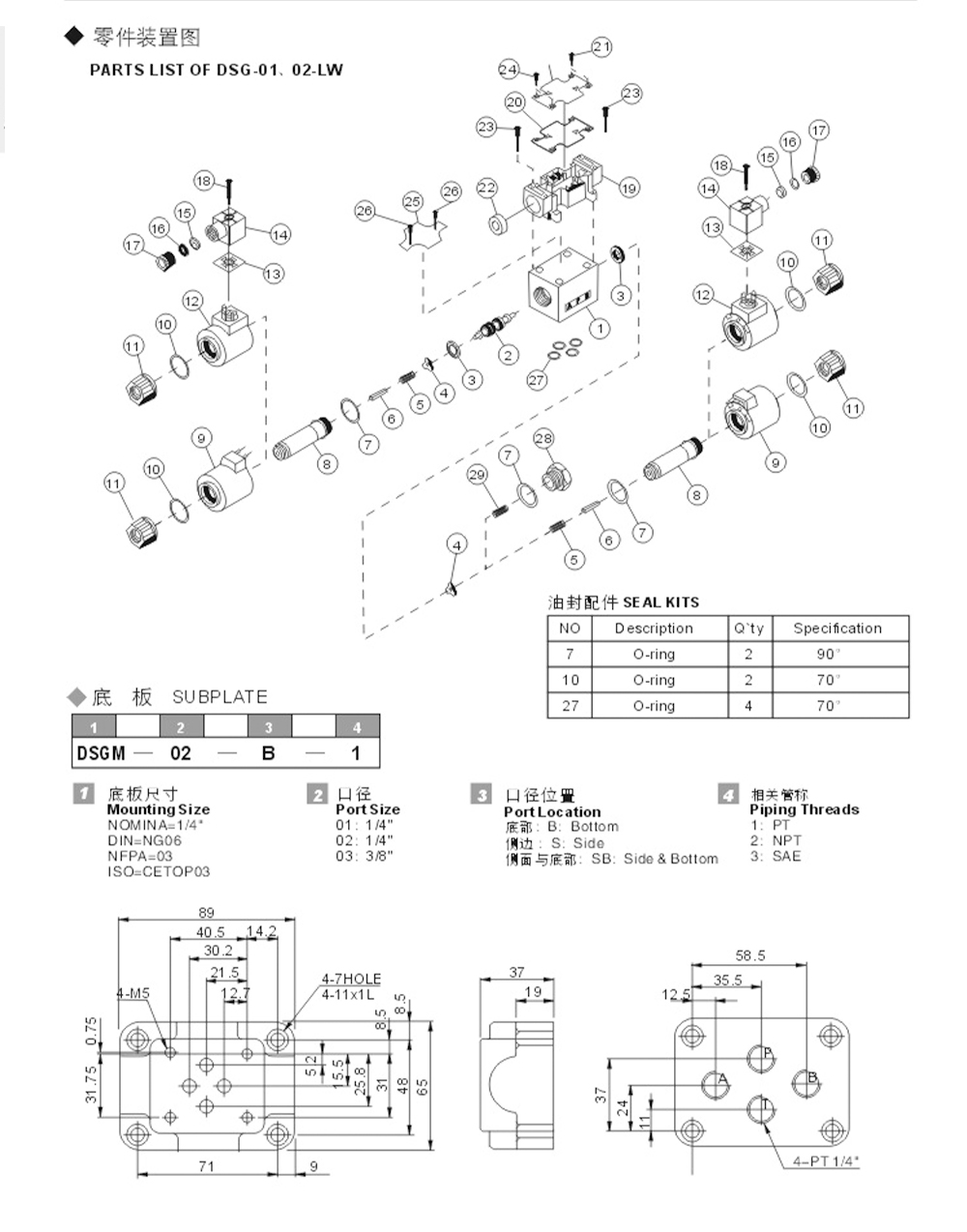

hvlwiqvw1787125622

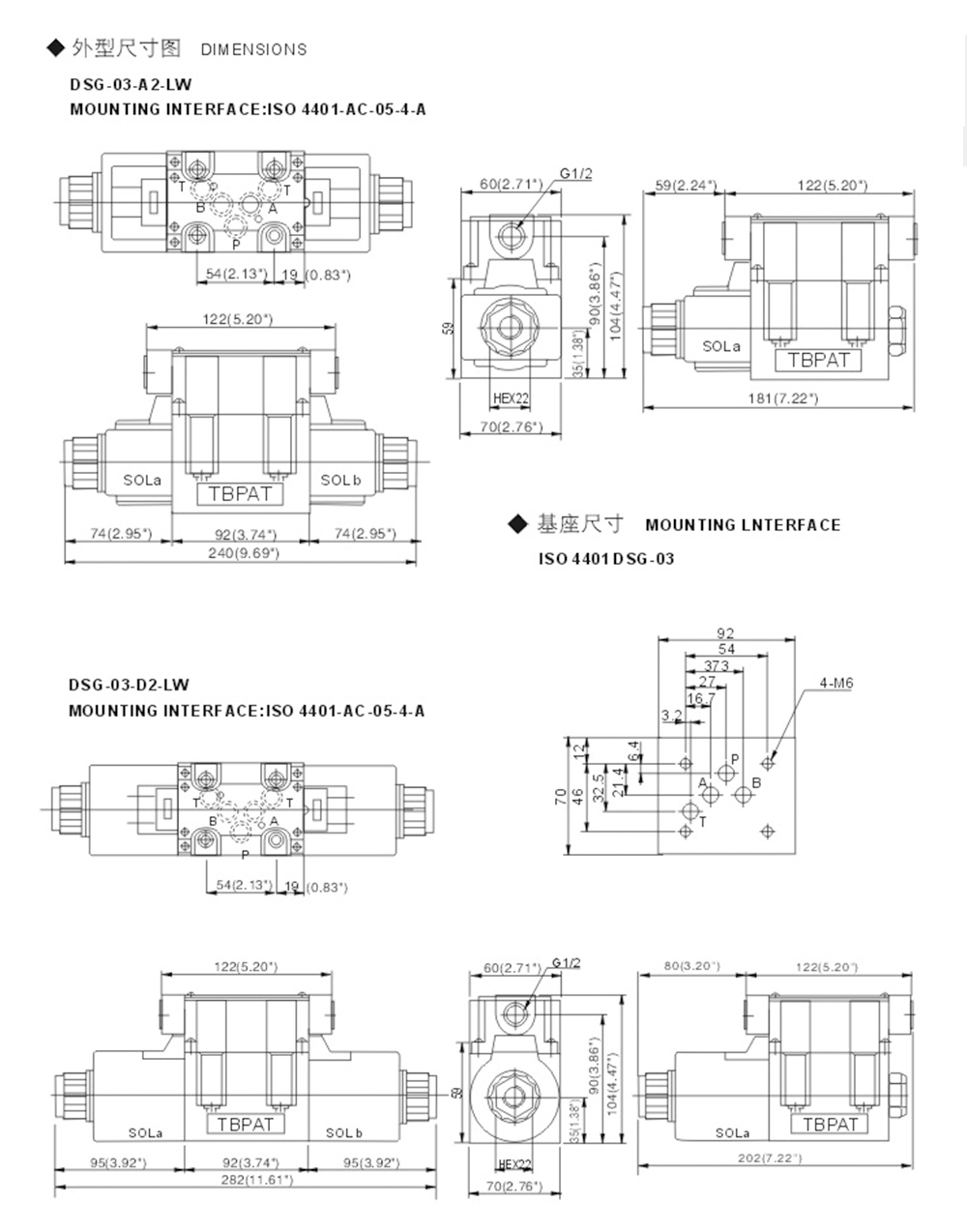

tymrpvie1787125627

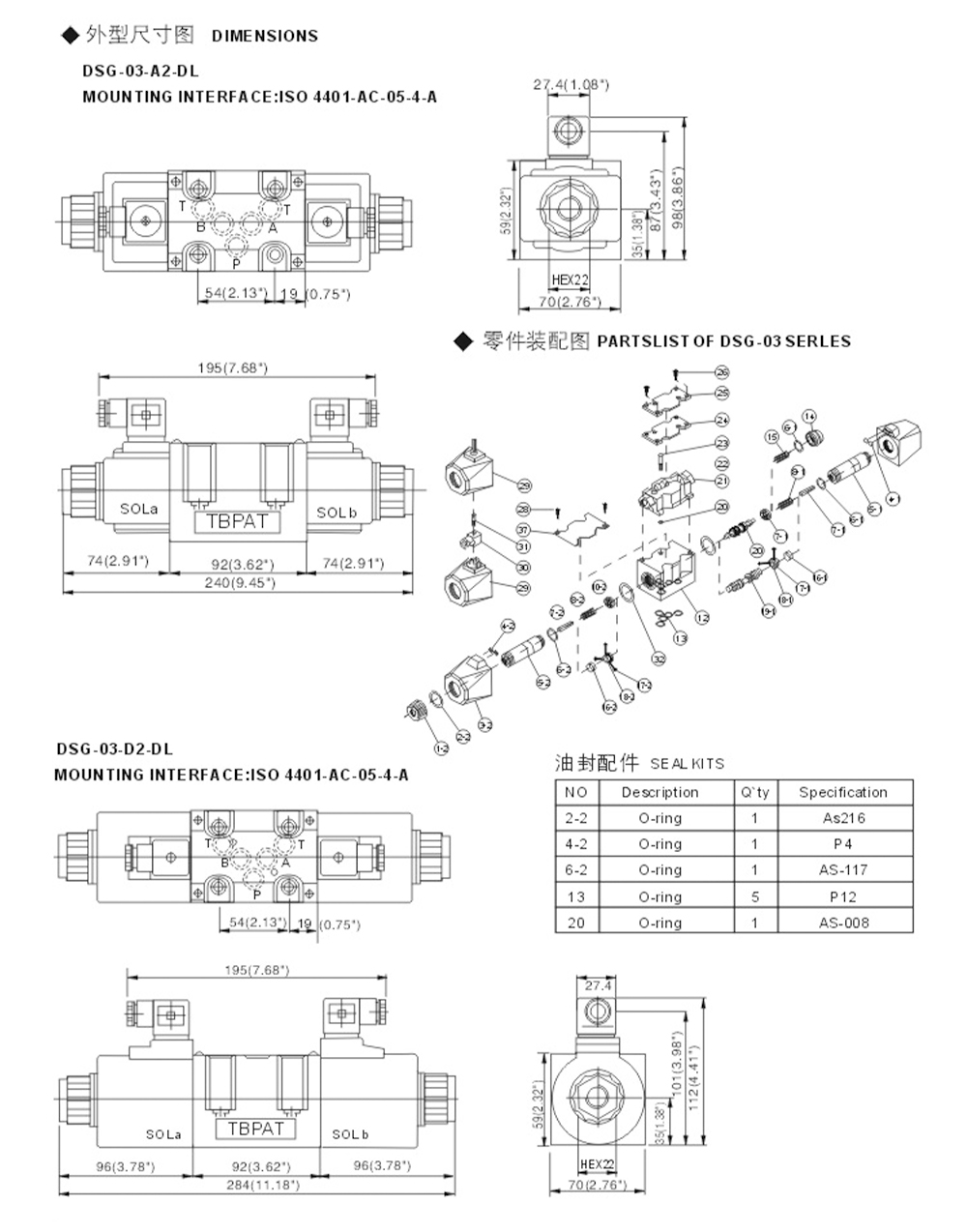

pilbdwgn1787125633


OEM / ODM Customization

We provide OEM and ODM services for hydraulic solenoid directional control valves to meet different system requirements.
·Coil voltage customization
·Connector and wiring customization
·Valve configuration customization
·Mounting interface customization
·Seal material selection
·Logo marking and packaging customization
·Hydraulic system integration support

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a solenoid directional control valve used for?
A solenoid directional control valve is used to control hydraulic oil flow direction in hydraulic systems. It is commonly applied in industrial equipment requiring reliable and fast switching control.

2. What models are available in this series?
Representative models include DSG-01-2B2, DSG-01-3C2, DSG-02-2B2, DSG-02-3C2, DSG-03-2B2, and DSG-03-3C2.

3. What are the advantages of the wet solenoid design?
The wet solenoid structure helps reduce switching noise, improve service life, and maintain stable performance under high-pressure hydraulic conditions.

4. Is this valve compatible with international mounting standards?
Yes. The valve is designed to be compatible with ISO, CETOP, NFPA, and DIN international mounting standards, making it easier to integrate into different hydraulic systems.

5. How can I choose the right Solenoid Directional Control Valve model?
Selection depends on operating pressure, required flow rate, mounting standard, hydraulic circuit design, and control requirements. The appropriate Solenoid Directional Control Valve High Response Performance model should be selected according to the actual application conditions.
