  • Explosion-Proof Proportional Cartridge Flow Control Valve
  • Explosion-Proof Proportional Cartridge Flow Control Valve
  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Compact hydraulic manifolds and power units
·Petrochemical process equipment
·Mining machinery with explosion-proof requirements
·Offshore hydraulic control systems
·Industrial automation equipment
·Hydraulic systems requiring adjustable actuator speed

Core Functions

Precise Flow Adjustment
The valve controls hydraulic flow according to the electrical input signal, allowing continuous adjustment of actuator speed compared with fixed flow control components.

Cartridge Installation for Compact Systems
The cartridge design enables direct mounting into hydraulic blocks, reducing external piping and helping optimize the overall hydraulic system layout.

Stable Actuator Speed Control
By regulating flow output smoothly, the valve helps improve the movement stability of hydraulic cylinders and motors, especially in applications requiring controlled motion.

Explosion-Proof Electrical Operation
The valve is configured with DC 24 V operating voltage, 750 mA rated current, and IP55 protection rating, supporting reliable operation in industrial environments with electrical protection requirements.

Compatibility with Industrial Hydraulic Fluids
The valve is suitable for mineral hydraulic oil and phosphate ester hydraulic fluid, making it adaptable to different hydraulic system requirements.

Technical Specifications
DN 25  32  40  50
Maximum Operating Pressure(MPa) Oilports A,B,X 31.5
Oilports Y 0 Mpa retum to oil tank
Working pressure(Mpa) 16  25  31.5
Max.Flow(L/min) 325  500  700  1000
Working Fluid Mineral oil phosphate-ester
Fluid temp. (℃) -20~70
Viscosity(mm²/s) 15~380
Hysteresis (%) <5
Repeatability (%) <2
Linearity(%) <3.5
Working Voltage(V) DC 24
Rated Current(mA) 750
Coil Resistance (Ω) 19.5
Insulating grade IP 55

kgfyprse1787212195

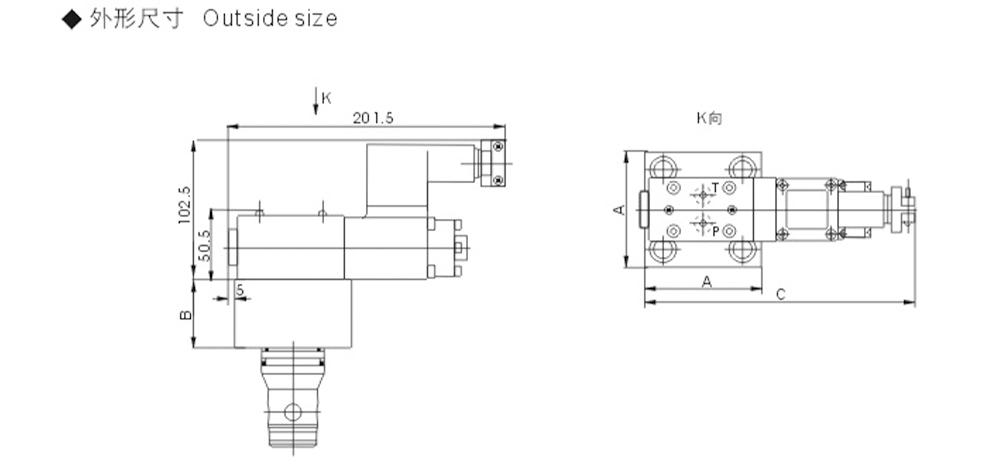

Model A B C
GDBCY-25 85  50  199
GDBCY-32 102  50  207
GDBCY-40 125  60  219
GDBCY-50 140  68  227

rxisgdaz1787212256

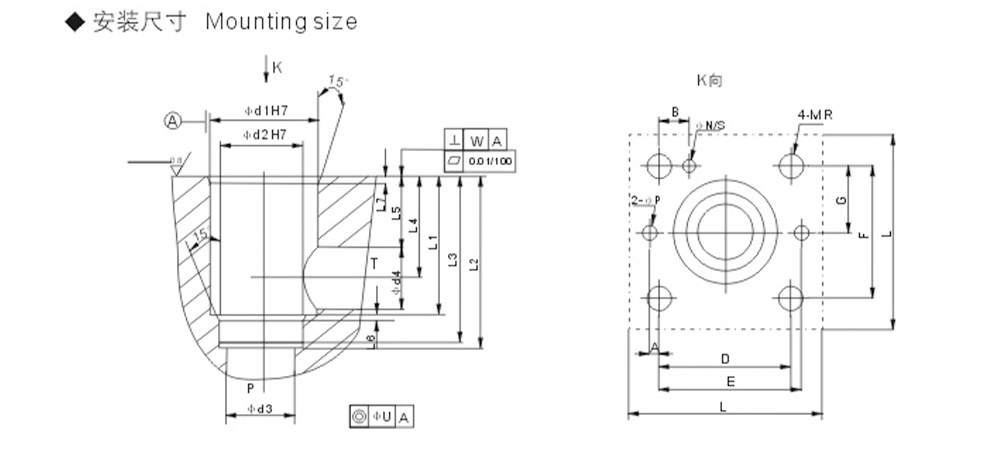

DN A B C D E F G L M N P R S
GDBCY-25 13  29  58  62  58  29  85  M12 30
GDBCY-32 18  35  70  76  70  35  102  M16 38
GDBCY-40 7.5  19.5  42.5  85  92.5  85  42.5  125  M20 10  46
GDBCY-50 20  50  100  108  100  50  140  M20 10  46

DN d1 d2 d3 d4 L1 L2 L3 L4 L5 L6 L7 U W
GDBCY-25 45  34  25  27  58  72  70  42  30  2.5  2.5  0.03  0.05
GDBCY-32 60  45  32  38.5  70  85  83  48.5  30  2.5  2.5  0.03  0.1
GDBCY-40 75  55  40  54.5  87  105  102  58  30  0.05  0.1
GDBCY-50 90  68  50  62.5  100  122  117  66  35  0.05  0.1

OEM / ODM Customization

We provide OEM and ODM services for hydraulic equipment manufacturers and system integrators, including:

·Cartridge interface customization
·Flow adjustment range configuration
·Electrical coil and connector options
·Hydraulic manifold integration support
·Product labeling and customized packaging

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is an Explosion-Proof Proportional Cartridge Flow Control Valve used for?
An Explosion-Proof Proportional Cartridge Flow Control Valve is used to adjust hydraulic flow electronically and control actuator speed in industrial hydraulic systems requiring compact installation and explosion-proof operation.

2. What is the advantage of a cartridge flow control design?
The cartridge structure allows direct installation into hydraulic blocks, helping reduce piping connections and saving space in compact hydraulic systems.

3. How does proportional flow control work?
The valve changes flow output according to the electrical input signal, allowing smoother adjustment compared with traditional fixed flow control valves.

4. What are the standard electrical specifications?
The standard configuration uses DC 24 V power supply with a 750 mA rated current and an IP55 protection rating.

5. Can the Explosion-Proof Proportional Cartridge Flow Control Valve be customized?
Yes. The Explosion-Proof Proportional Cartridge Flow Control Valve can be customized according to flow requirements, manifold design, electrical specifications, and specific hydraulic application conditions.
