  • Explosion-Proof Proportional Cartridge Relief Valve
  • Explosion-Proof Proportional Cartridge Relief Valve
  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Hydraulic manifolds and compact power units
·Petrochemical hydraulic control systems
·Mining machinery in hazardous areas
·Offshore equipment hydraulic circuits
·Industrial automation systems
·Hydraulic equipment requiring space-saving pressure control

Core Functions

Compact Cartridge-Based Pressure Control
The cartridge structure allows direct installation into hydraulic blocks or manifolds, helping reduce external piping requirements and system installation space.

Proportional Pressure Regulation
The valve adjusts relief pressure according to electrical input signals, enabling continuous pressure control instead of fixed manual adjustment.

Stable System Pressure Protection
The pressure relief function helps protect hydraulic components from excessive pressure while maintaining stable operation during changing load conditions.

Explosion-Proof Electrical Configuration
The valve operates with a DC 24 V power supply, a rated current of 750 mA, and an IP55 protection rating, providing reliable electrical protection for industrial environments.

Hydraulic Fluid Compatibility
Designed for mineral hydraulic oil and phosphate ester hydraulic fluid, the valve supports different industrial hydraulic applications.

Technical Specifications
DN 25  32  40  50
Maximum Operating Pressure(MPa) Oilports A, B, X 31.5
Oilports Y 0 MPa return to oil tank
Working pressure(Mpa) 16  25  31.5
Max.Flow(L/min) 400  750  1000  2000
Working Fluid Mineral oil phosphate-ester
Fluid temp. (℃) -20~70
Viscosity(mm²/s) 15~380
Hysteresis (%) <3
Repeatability (%) <2
Linearity(%) <3.5
Working Voltage(V) DC24
Rated Current(mA) 750
Coil Resistance (Ω) 19.5
Insulating grade IP 55

bnljfjvn1787211715

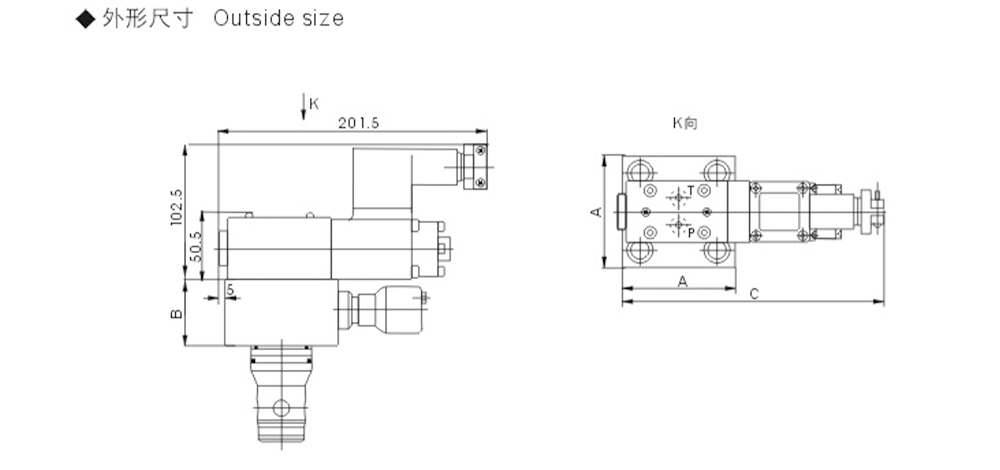

Model A B C
GDBCY-25 85  50  199
GDBCY-32 102  50  207
GDBCY-40 125  60  219
GDBCY-50 140  68  227

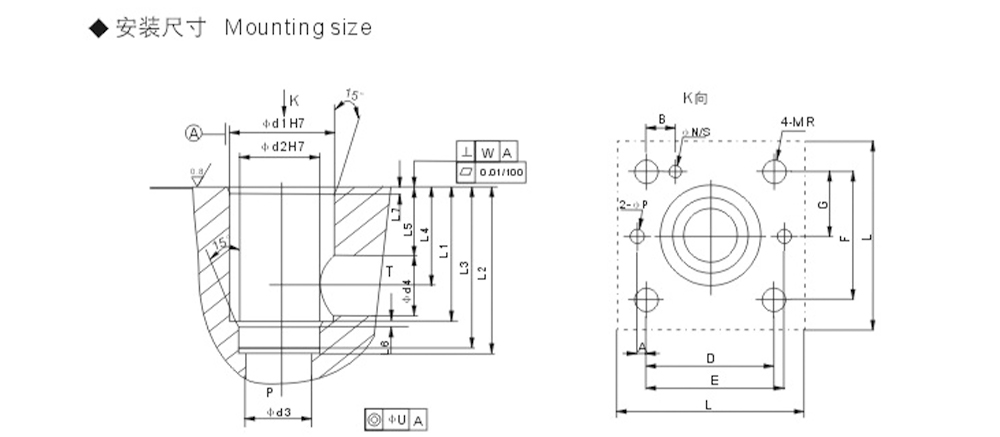

cgkbpxcp1787211754

DN A B C D E F G L M N P R S
GDBCY-25 13  29  58  62  58  29  85  M12 30
GDBCY-32 18  35  70  76  70  35  102  M16 38
GDBCY-40 7.5  19.5  42.5  85  92.5  85  42.5  125  M20 10  46
GDBCY-50 20  50  100  108  100  50  140  M20 10  46  8

DN d1 d2 d3 d4 L1 L2 L3 L4 L5 L6 L7 U W
GDBCY-25 45  34  25  27  58  72  70  42  30  2.5  2.5  0.03  0.05
GDBCY-32 60  45  32  38.5  70  85  83  48.5  30  2.5  2.5  0.03  0.1
GDBCY-40 75  55  40  54.5  87  105  102  58  30  0.05  0.1
GDBCY-50 90  68  50  62.5  100  122  117  66  35  0.05  0.1

OEM / ODM Customization

We provide OEM and ODM services for hydraulic component suppliers and equipment manufacturers, including:

·Cartridge size and installation configuration
·Pressure adjustment range customization
·Electrical coil and connector options
·Product marking and packaging solutions
·Hydraulic circuit-based technical support

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is an Explosion-Proof Proportional Cartridge Relief Valve used for?
An Explosion-Proof Proportional Cartridge Relief Valve is used to control and limit hydraulic system pressure through proportional electrical signals, especially in compact hydraulic systems installed in hazardous environments.

2. What are the advantages of a cartridge relief valve design?
The cartridge structure allows direct integration into hydraulic manifolds, helping reduce piping connections, installation space, and system complexity.

3. What electrical specifications are available for this valve?
The standard configuration uses DC 24 V power supply with a 750 mA rated current and an IP55 protection rating.

4. Which hydraulic fluids can be used with this valve?
The valve is compatible with mineral hydraulic oil and phosphate ester hydraulic fluid commonly used in industrial hydraulic systems.

5. Can the Explosion-Proof Proportional Cartridge Relief Valve be customized for different hydraulic systems?
Yes. The Explosion-Proof Proportional Cartridge Relief Valve can be customized according to pressure requirements, manifold design, electrical configuration, and specific application conditions.
