  • Explosion-Proof Proportional Relief Valve
  • Explosion-Proof Proportional Relief Valve
  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Pressure control systems in petrochemical plants
·Hydraulic power units for offshore platforms
·Mining hydraulic equipment
·Explosion-proof hydraulic test benches
·Process control systems in chemical plants
·Industrial machinery requiring variable pressure regulation

Core Functions

Continuous Pressure Adjustment
The valve adjusts hydraulic pressure proportionally to the input electrical signal, allowing smooth and stepless pressure regulation instead of fixed pressure settings.

Stable Pressure Regulation
The proportional control design helps maintain consistent system pressure during load changes, improving hydraulic system stability and reducing pressure fluctuations.

Explosion-Proof Electrical Operation
Designed for hazardous industrial environments, the valve combines proportional pressure control with explosion-proof electrical protection for reliable operation.

Industrial Electrical Performance
The valve operates with a DC 24 V power supply, a rated current of 750 mA, and an IP55 protection rating, making it suitable for demanding industrial hydraulic applications.

Compatible with Common Hydraulic Fluids
The valve is designed for mineral hydraulic oil and phosphate ester hydraulic fluid, supporting a wide range of industrial hydraulic systems.

Technical Specifications
Specifications 02
Maximum Operating Pressure(MPa) Oilports P 31.5
Oilports T
Working pressure(Mpa) 7, 16, 25, 31.5
Max.Flow(L/min)
Working Fluid Mineral oil phosphate-ester
Fluid temp. (℃) -20~70
Viscosity(mm²/s) 15~380
Hysteresis (%) <2
Repeatability (%) <2
Linearity(%) <3.5
Working Voltage(V) DC24
Rated Current(mA) 750
Coil Resistance (Ω) 19.5
Insulating grade IP 55

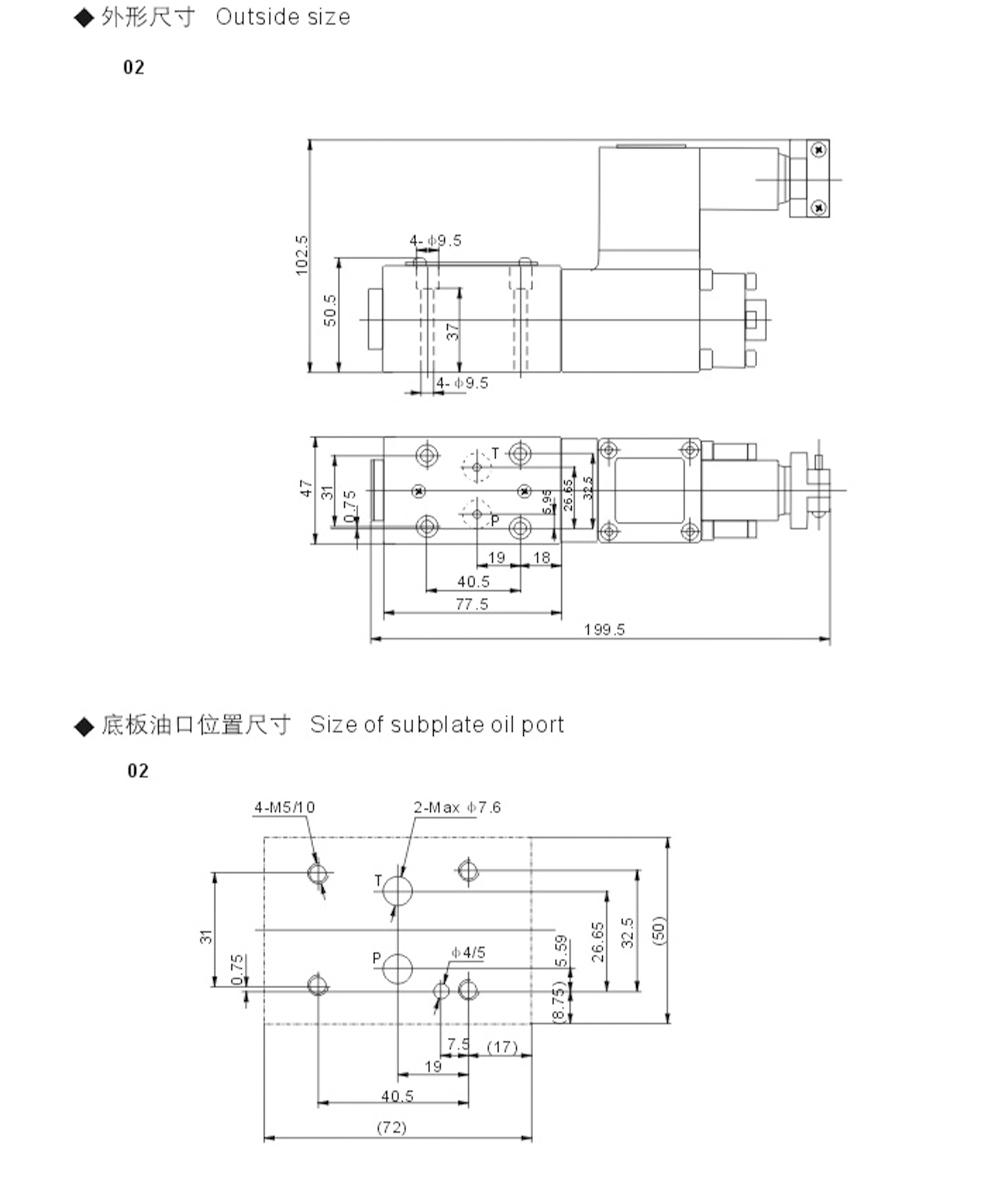

taJu53

Fixing screw
Specification Amount Tightening Torque
M5×45-12.9 9Nm

OEM / ODM Customization

We provide OEM and ODM services for hydraulic equipment manufacturers and industrial system integrators, including:

·Pressure adjustment range customization
·Coil voltage and electrical connector options
·Hydraulic interface and mounting configuration
·Product labeling and customized packaging
·Technical support based on hydraulic system requirements

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is an Explosion-Proof Proportional Relief Valve used for?
An Explosion-Proof Proportional Relief Valve is used to continuously regulate hydraulic system pressure through proportional electrical control while meeting explosion-proof requirements in hazardous environments.

2. How does a proportional relief valve differ from a conventional relief valve?
A conventional relief valve is typically adjusted manually to a fixed pressure, while a proportional relief valve changes the pressure continuously according to the input electrical signal, making it suitable for variable operating conditions.

3. What are the standard electrical specifications?
The standard configuration operates at DC 24 V with a rated current of 750 mA and features an IP55 protection rating.

4. Which hydraulic fluids are supported?
The valve is compatible with mineral hydraulic oil and phosphate ester hydraulic fluid commonly used in industrial hydraulic systems.

5. Can the Explosion-Proof Proportional Relief Valve be integrated into automated hydraulic systems?
Yes. The Explosion-Proof Proportional Relief Valve is designed for electrically controlled hydraulic systems and can be integrated with compatible controllers and amplifiers for precise pressure management.
