Specific Applications

·Steel and metallurgical hydraulic systems
·Offshore drilling platforms and marine equipment
·Petrochemical process equipment
·Large hydraulic presses
·Mining and heavy-duty machinery
·Explosion-proof automated production lines

Core Functions

Pilot-Operated Proportional Control
The electro-hydraulic pilot design converts proportional electrical signals into smooth spool movement, allowing accurate directional control for hydraulic actuators.

Stable Performance for High-Flow Systems
Compared with direct-operated proportional valves, the pilot-operated structure is better suited for hydraulic systems with higher flow demand and continuous-duty operation.

Smooth Speed and Position Control
By continuously adjusting spool position, the valve helps reduce pressure fluctuations and hydraulic shock, improving the stability of cylinders and hydraulic motors.

Explosion-Proof Electrical Design
The valve operates with a DC 24 V power supply, a rated current of 800 mA, and an IP55 protection rating, making it suitable for electrically controlled hydraulic systems installed in hazardous industrial environments.

Wide Hydraulic Fluid Compatibility
Designed for use with mineral hydraulic oil and phosphate ester hydraulic fluid, the valve can be integrated into a wide variety of industrial hydraulic circuits.

Technical Specifications
Specifications 03  04  06
Maximum Operating Pressure(MPa) Oilports P, A, B 31.5
Oilports T Y External Return 15
Y Internal Return
Oilports Y Y External Return
Working Fluid
Mineral oil phosphate-ester
Fluid temp. (℃) -20~70
Viscosity(mm²/s) 2.8~380
Pilot Control Pressure(MPa) External Pilot Oil Supply 3~10
Internal Pilot Oil Supply ≤10*
Hysteresis (%) <6
Repeatability (%) <3
Operating Voltage (M) DC24
Rated Current (mA) 800
Coil Resistance (Ω) 19.5
Protection Rating IP55

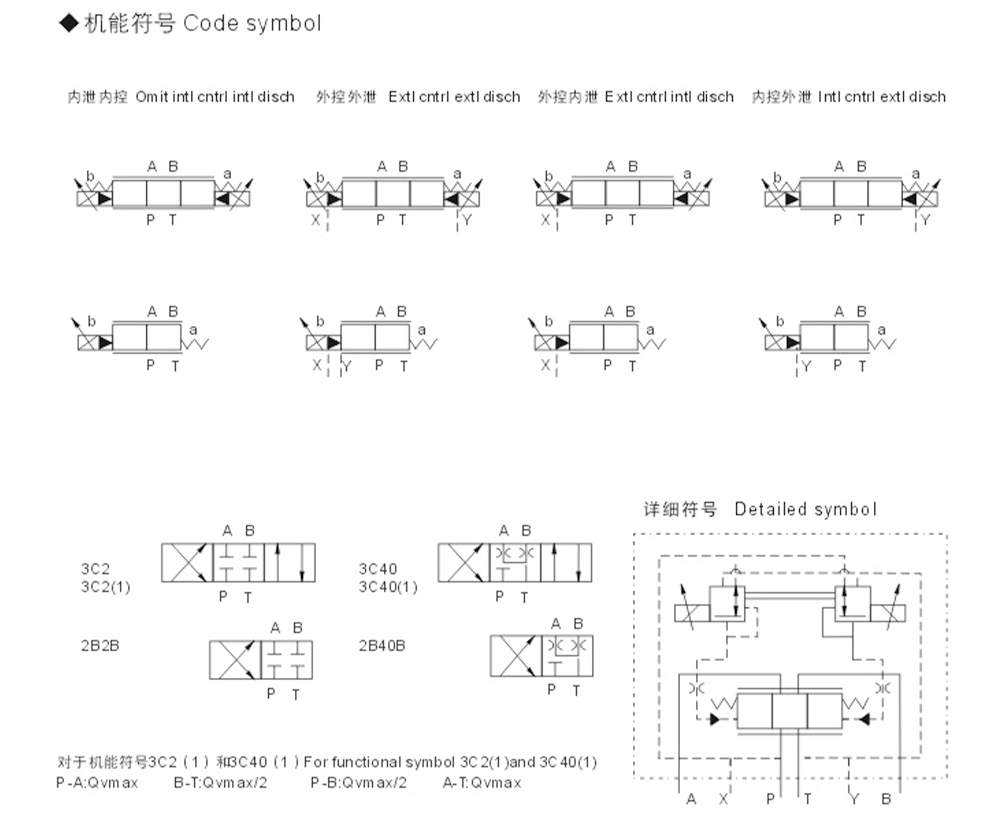

pqgxswyt1787209845

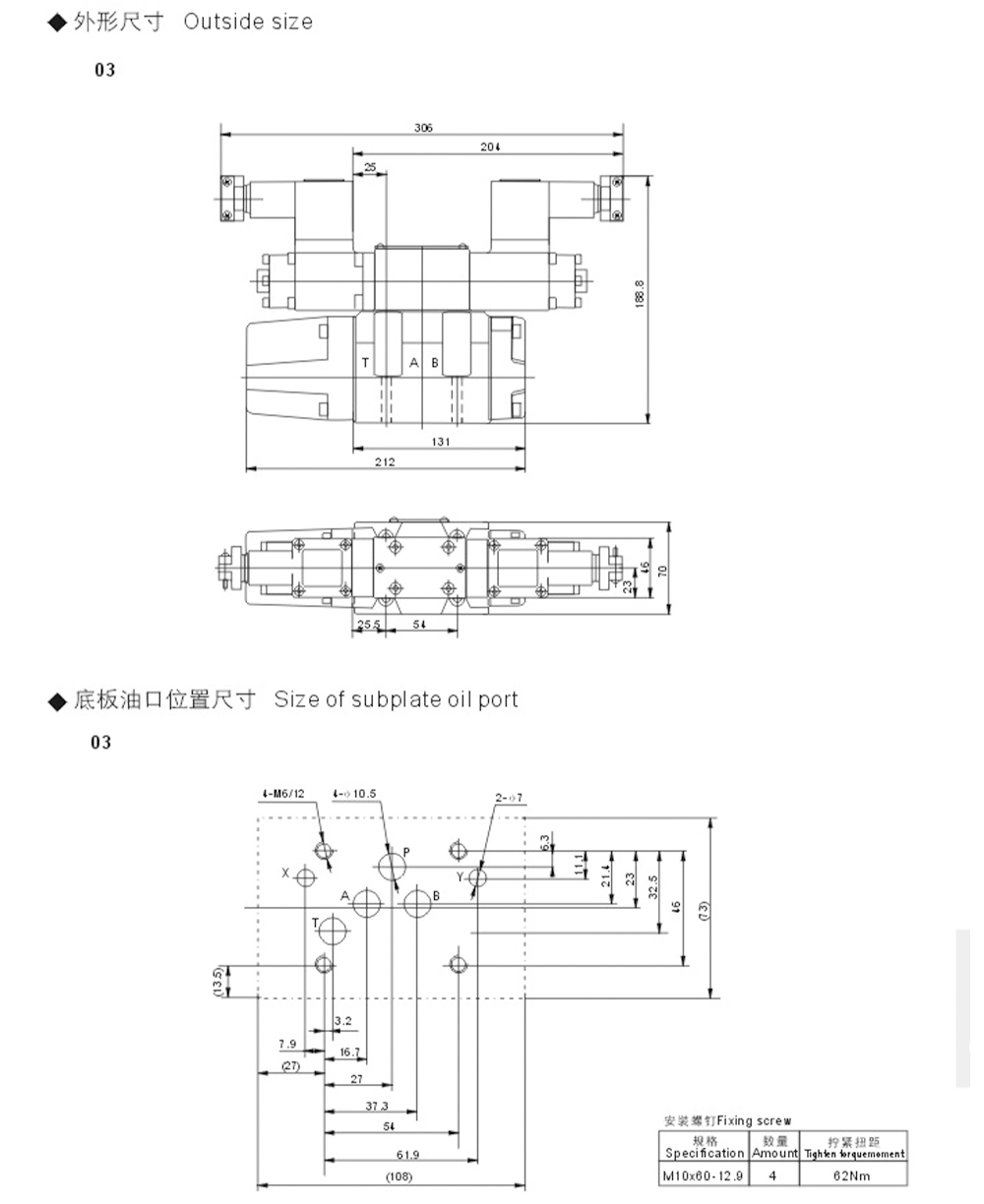

zyrqylgo1787209851

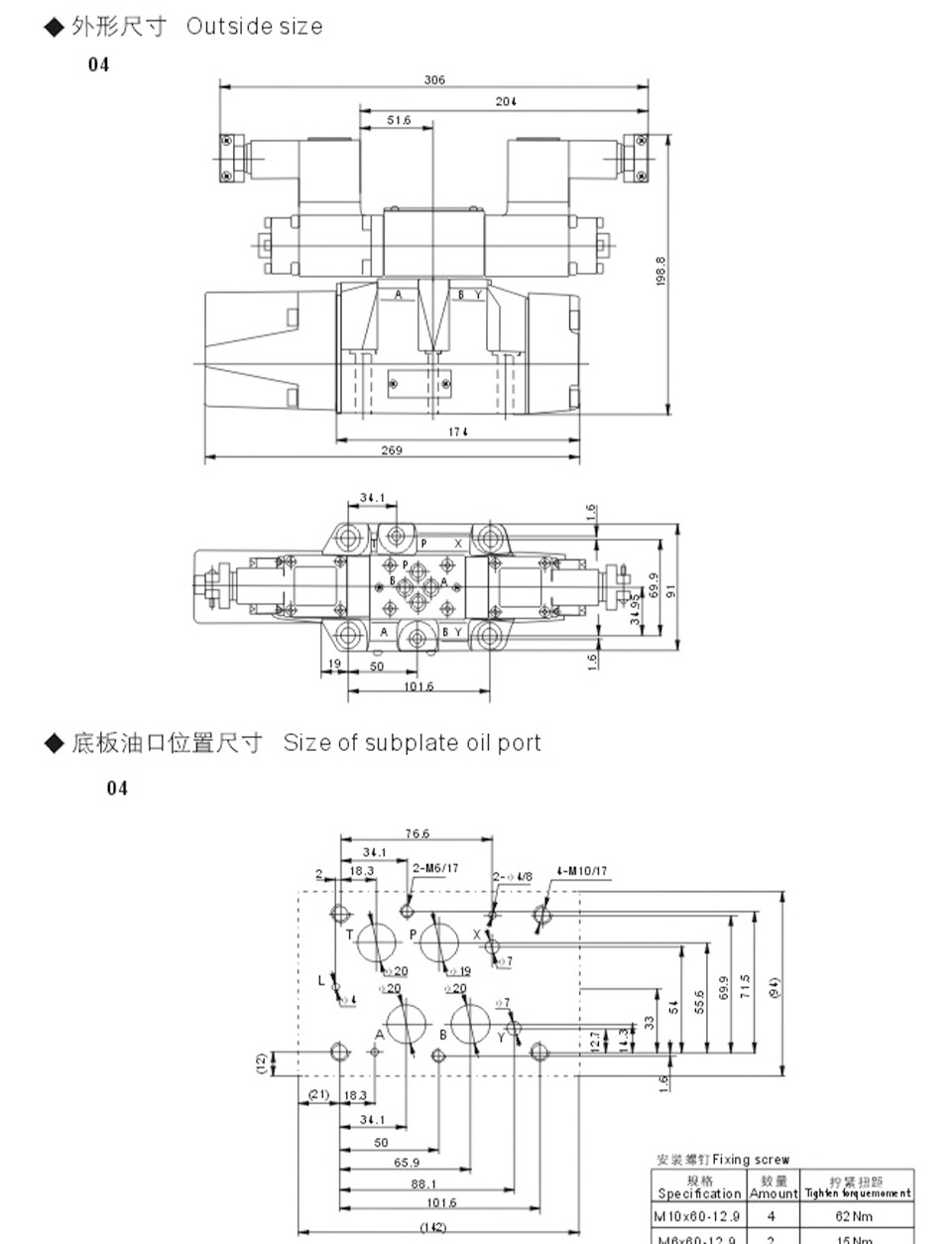

riwkidyd1787209855

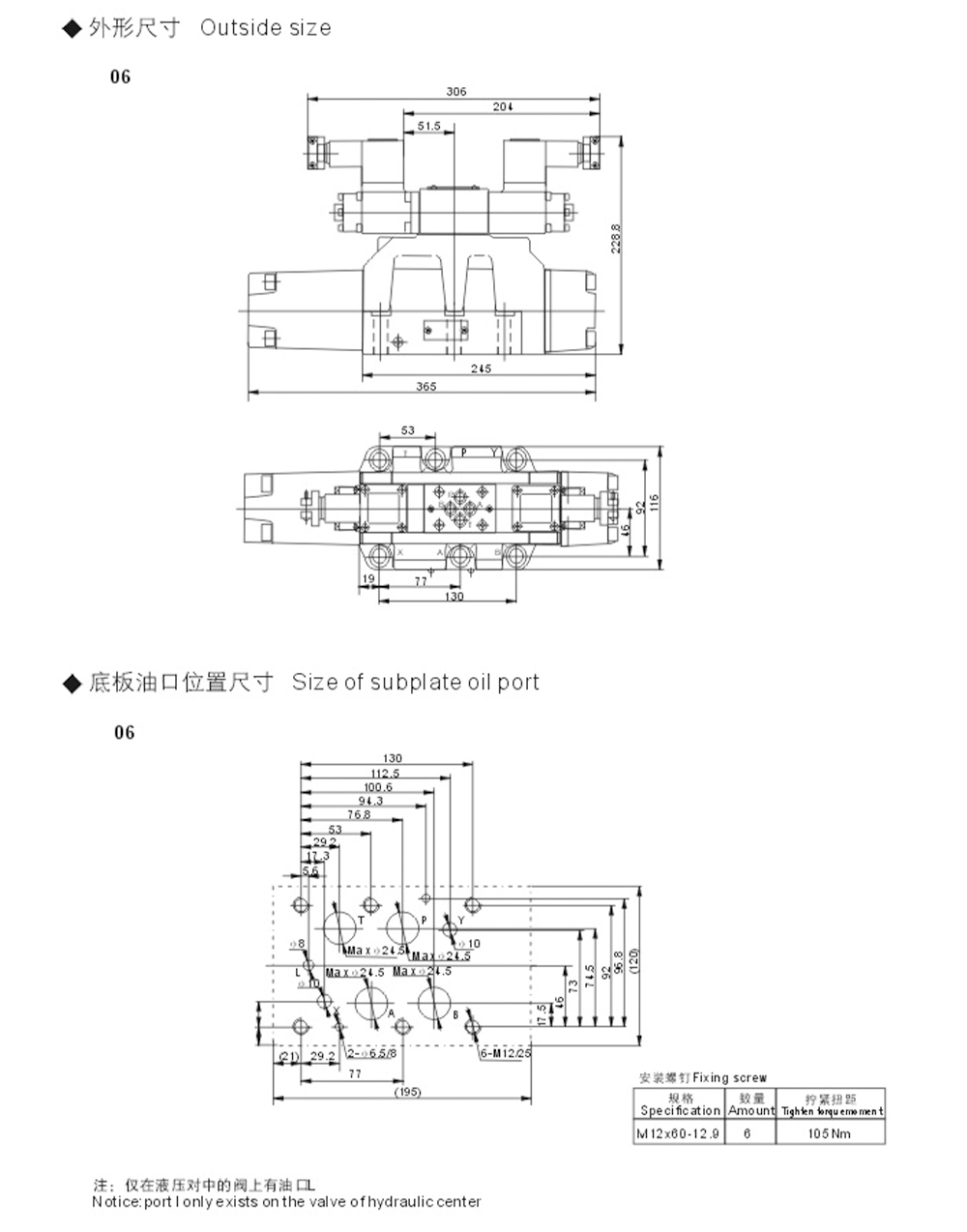

yoghpbog1787209859


OEM / ODM Customization

We provide OEM and ODM services to meet different hydraulic control requirements, including:

·Pilot stage and proportional control configuration
·Coil voltage and electrical connector options
·Spool function and switching characteristics
·Customized product marking and packaging
·Technical support based on hydraulic system design

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is an Explosion-Proof Electro-Hydraulic Proportional Directional Control Valve used for?
An Explosion-Proof Electro-Hydraulic Proportional Directional Control Valve is used to achieve precise directional and motion control in hydraulic systems operating in hazardous environments, especially where high-flow performance and proportional control are required.

2. Why choose a pilot-operated proportional valve instead of a direct-operated valve?
Pilot-operated proportional valves are generally better suited for larger hydraulic systems because they provide more stable spool movement and can handle higher flow requirements.

3. What electrical specifications does this valve support?
The standard specification is DC 24 V with a rated current of 800 mA. Other electrical requirements can be evaluated for OEM projects.

4. Which hydraulic fluids are compatible with this valve?
The valve is designed for mineral hydraulic oil and phosphate ester hydraulic fluid used in industrial hydraulic systems.

5. What information is needed to select the right Explosion-Proof Electro-Hydraulic Proportional Directional Control Valve?
Please provide the application, hydraulic circuit design, required control accuracy, flow demand, operating voltage, and hazardous area classification. Our engineers will recommend the appropriate Explosion-Proof Electro-Hydraulic Proportional Directional Control Valve model and configuration.
