  • Explosion-Proof Proportional Directional Control Valve
  • Explosion-Proof Proportional Directional Control Valve
  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Hydraulic positioning systems in petrochemical plants
·Explosion-proof automation equipment
·Offshore drilling and production platforms
·Mining hydraulic machinery
·Process control equipment in chemical plants
·Heavy-duty hydraulic systems requiring proportional control

Core Functions

Proportional Directional Control
The valve adjusts spool position according to the electrical input signal, providing continuous directional control and smoother actuator movement than conventional switching valves.

Improved Motion Accuracy
Proportional control helps reduce hydraulic shock during starting and stopping, making it suitable for equipment requiring stable speed and position control.

Explosion-Proof Electrical Design
Designed for hazardous industrial environments, the valve combines proportional hydraulic control with explosion-proof electrical operation to improve workplace safety.

Industrial Electrical Protection
The valve operates on DC 24 V and features an IP55 protection rating, helping protect electrical components from dust and water spray in industrial applications.

Hydraulic Fluid Compatibility
Compatible with mineral hydraulic oil and phosphate ester hydraulic fluid, allowing integration into a wide range of industrial hydraulic systems.

Technical Specifications
Specifications 02  03
Maximum Operating Pressure(MPa) Oilports P, A, B 31.5
Oilports T 10
Working Fluid Mineral oil phosphate-ester
Fluid temp. (℃) -20~70
Viscosity(mm²/s) 2.8~380
Hysteresis (%) <5
Repeatability (%) <2
Operating Voltage (M) DC 24
Rated Current (mA) 750  1500
Coil Resistance (Ω) 19.5  10
Protection Rating IP 55

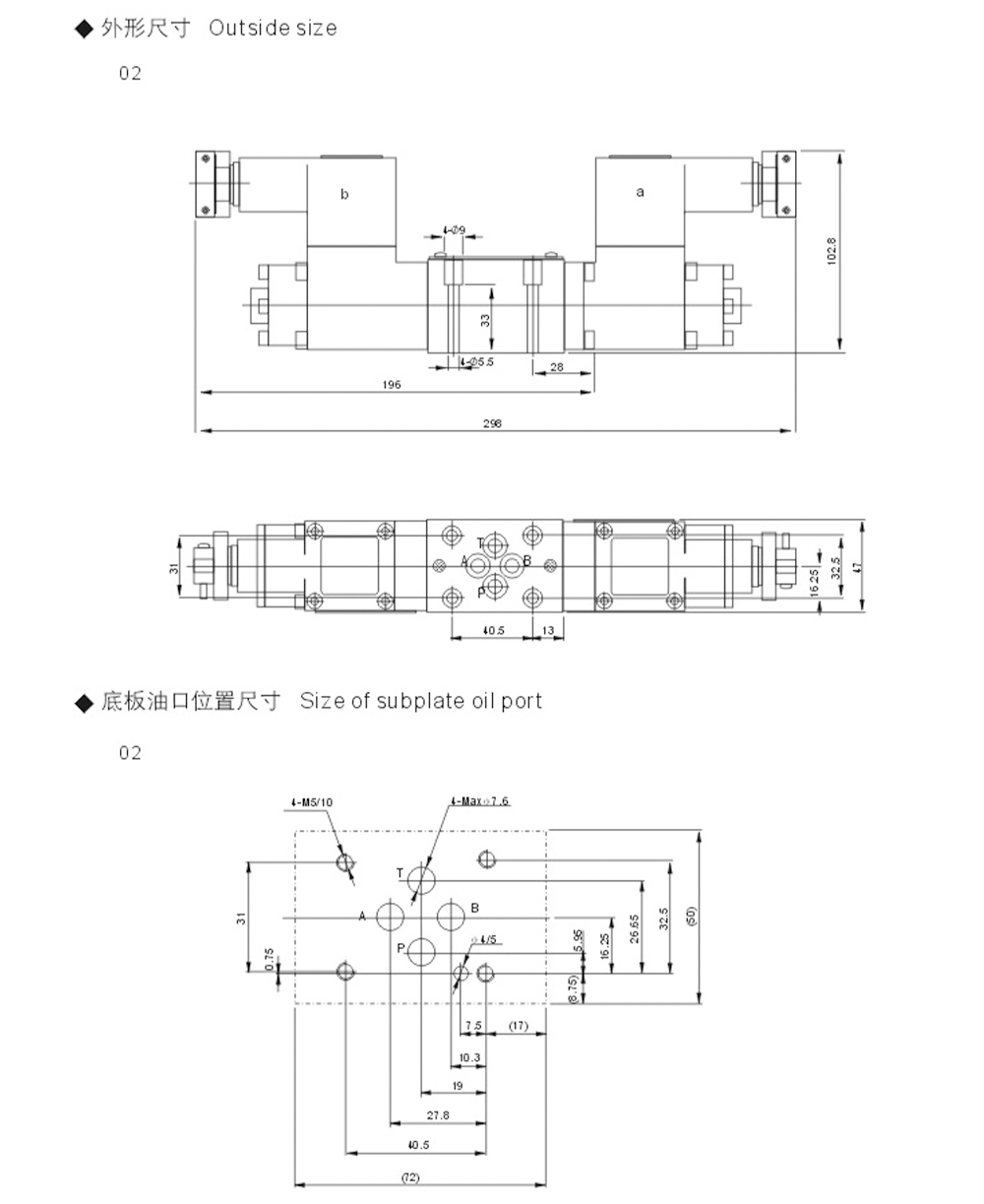

vyeevbwj1787209119

Fixing screw
Specification Quantity Tightening Torque
M5×45-12.9 9Nm

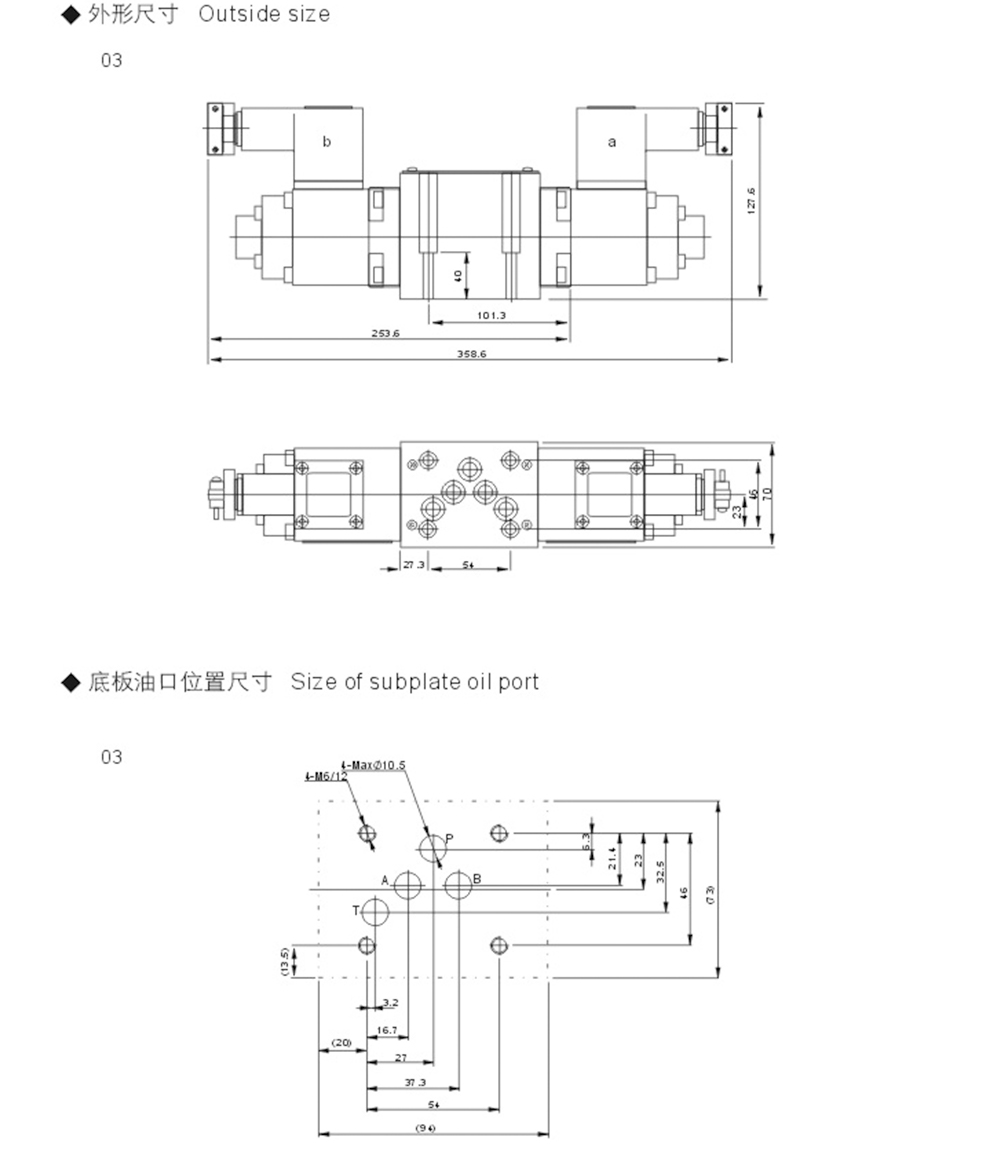

pysfwbgq1787209259

Fixing screw
Specification Quantity Tightening Torque
M6×50-12.9 15Nm

OEM / ODM Customization

We support OEM and ODM projects for hydraulic equipment manufacturers and industrial system suppliers, including:

·Proportional control configuration
·Electrical connector and cable options
·Mounting interface customization
·Private label and custom packaging
·Technical support based on hydraulic circuit requirements

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is an Explosion-Proof Proportional Directional Control Valve used for?
An Explosion-Proof Proportional Directional Control Valve is used to provide continuous directional control of hydraulic actuators in hazardous environments where explosion-proof electrical protection is required.

2. How is this valve different from a standard directional control valve?
Unlike an on/off directional valve, a proportional valve adjusts spool position continuously according to the input signal, allowing smoother speed and motion control.

3. What power supply does this valve require?
The standard operating voltage is DC 24 V. Other electrical specifications can be discussed according to project requirements.

4. Which hydraulic fluids are compatible with this valve?
The valve is suitable for mineral hydraulic oil and phosphate ester hydraulic fluid commonly used in industrial hydraulic systems.

5. Can the valve be customized for different hydraulic control systems?
Yes. We provide OEM and ODM services, including proportional control configuration, electrical connection options, mounting interfaces, and customized branding for the Explosion Proportional Directional Control Valve.
