Specific Applications

·Hydraulic power units for petrochemical plants
·Offshore drilling and marine hydraulic systems
·Mining equipment operating in explosive environments
·Oil pipeline hydraulic control systems
·Chemical production equipment
·Explosion-proof industrial automation systems

Core Functions

Automatic Pressure Unloading
When the solenoid is energized, the valve unloads pump pressure according to the hydraulic circuit design, helping reduce unnecessary power consumption during standby operation.

Pressure Safety Protection
The integrated relief function limits excessive system pressure, reducing the risk of damage to pumps, cylinders, and hydraulic pipelines.

Designed for Hazardous Locations
The explosion-proof electrical design allows the valve to operate safely in environments containing flammable gases or combustible dust.

Compatible with Industrial Hydraulic Fluids
Suitable for mineral hydraulic oil and phosphate ester hydraulic fluid, meeting the requirements of many industrial hydraulic systems.

Industrial Electrical Protection
The valve is rated IP55, providing protection against dust ingress and water spray for reliable outdoor and factory operation.

Technical Specifications
Specifications 03  06  10
Maximum Operating Pressure(MPa) Oilports P, X 35
Oilports T(External leakage 30
Oilports T (Internal leakage) 10
Max.Flow(L/min) 10% 40  80  120
17% 60      120      240
Working Fluid Mineral oil phosphate-ester
Fluid temp. (℃) -20~70
Viscosity(mm²/s) 15~380
Working pressure(Mpa) 5,10,20,31.5,35
Worhing voltage(V) DC 24
※AC 110,220
Insulating grade IP 55

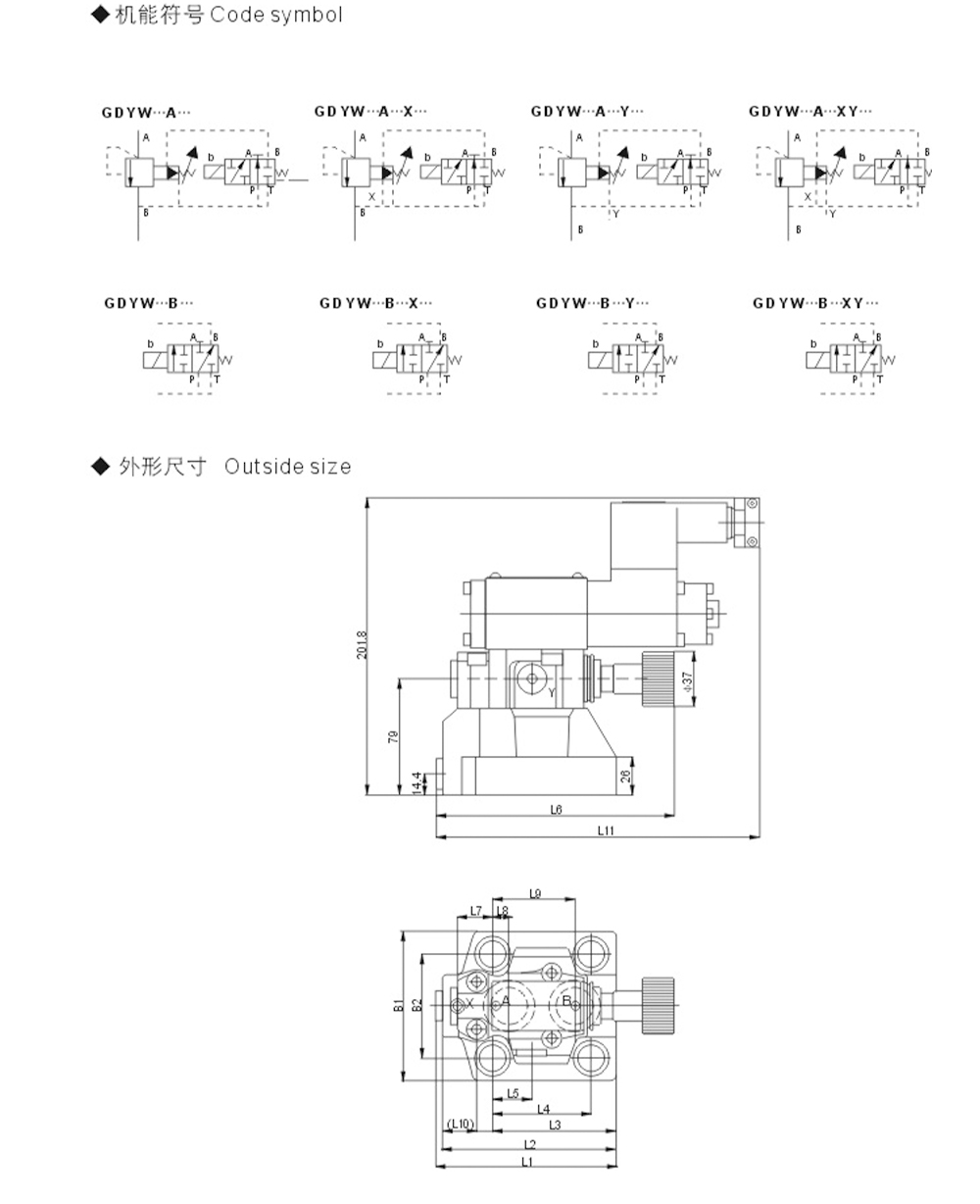

prfpbocd1787208524

Specification Mounting Screws Tightening Torque
GDYXW-03 4-M10×50-12.9 75Nm

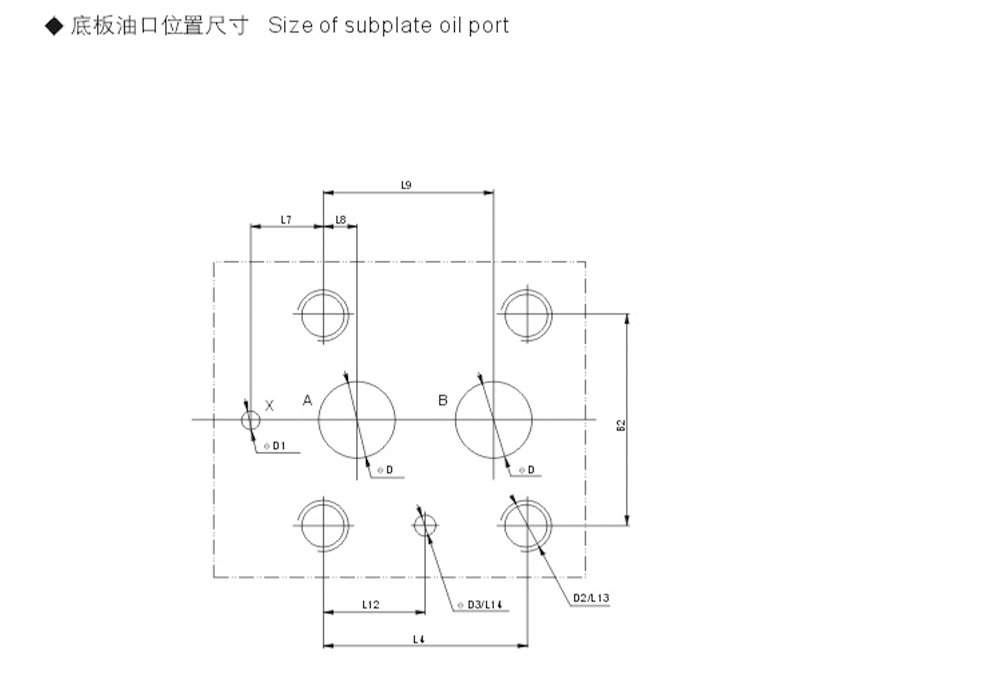

tfpkzagd1787208569

Specification Mounting Screws Tightening Torque
GDYXW-06 4-M16×100-12.9
2-M16×50-12.9
310Nm
GDYXW-10 4-M18×120-12.9
2-M18×80-12.9
430Nm

Specification L1 L2 L3 L4 L5 L6 L7 L8 L9 L10 L11
GDYXW-06 154  25  101.6  57.1  12.7  46  112.7  48.2  34  156  253.4
GDYXW-10 199  42  127  63.5  12.7  50.8  139.7  698  37  201  275

Specification B1 B2 B3 H1 H2 H3 H4 H5 D D1 D2
GDYXW-06 101  69.9  103  144  124  72  46  28  M16 18  25
GDYXW-10 118.5  82.5  118.5  165  145  93  67  45  M18 20  32

OEM / ODM Customization

To meet different hydraulic system requirements, we offer:

·Explosion-proof coil options for different voltage standards
·Customized pressure setting before delivery
·Hydraulic port and mounting configuration
·OEM branding and product packaging
·Technical support based on hydraulic schematics

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is the difference between an unloading relief valve and a standard relief valve?
An unloading relief valve can switch the hydraulic pump to an unloaded condition through electrical control, while a standard relief valve mainly limits the maximum system pressure.

2. Which hydraulic fluids can be used?
The valve is suitable for mineral hydraulic oil and phosphate ester hydraulic fluid.

3. Is this valve suitable for hazardous industrial environments?
Yes. It is designed for hydraulic systems requiring explosion-proof electrical operation and provides an IP55 protection rating.

4. Can the pressure setting be customized?
Yes. Different pressure settings and electrical configurations can be provided according to your hydraulic system requirements.

5. How do I choose the correct Explosion-Proof Solenoid Unloading Relief Valve?
Please provide the working pressure, hydraulic fluid, voltage, hazardous area requirements, and installation method. Our engineers will recommend the appropriate Explosion Solenoid Unloading Relief Valve model.
