Specific Applications

·Oil and gas production equipment
·Petrochemical plants
·Chemical processing systems
·Mining and tunneling machinery
·Offshore hydraulic equipment
·Hydraulic power units installed in hazardous locations

Core Functions

Explosion-Proof Pressure Control
The valve combines hydraulic pressure relief with an explosion-proof solenoid, making it suitable for hydraulic systems operating in hazardous environments.

Reliable System Pressure Protection
The relief function helps prevent excessive hydraulic pressure, protecting pumps, valves, cylinders, and other hydraulic components from overload.

Electrical Unloading Control
The solenoid allows remote electrical unloading through the hydraulic control system, helping improve system efficiency and simplify automated operation.

Industrial Hydraulic Compatibility
The valve is designed for use with mineral hydraulic oil and phosphate ester hydraulic fluid, making it suitable for a wide range of industrial hydraulic applications.

Protected Electrical Design
The valve features an IP55 protection rating, helping protect electrical components against dust ingress and water spray in industrial environments.

Technical Specifications
Specifications 03  06  10
Maximum Operating Pressure(MPa) Oilports PX 35
Oilports T(External leakage 30
Oilports T (Internal leakage) 10
Max.Flow(L/min) 250  500  650
Working Fluid Mineral oil phosphate-ester
Fluid temp. (℃) -20~70
Viscosity(mm²/s) 15~380
Working pressure(Mpa) 510       20 31.5     35
Worhing voltage(V) DC 24
※AC 110, 220
Insulating grade IP55

jgoxhswr1787208025

jnhuhnpj1787208034

Specification Mounting Screws Tightening Torque
GDYW-03 M12×45-12.9 130Nm
GDYW-06 M16×50-12.9 310Nm
GDYW-10 M18×50-12.9 430Nm

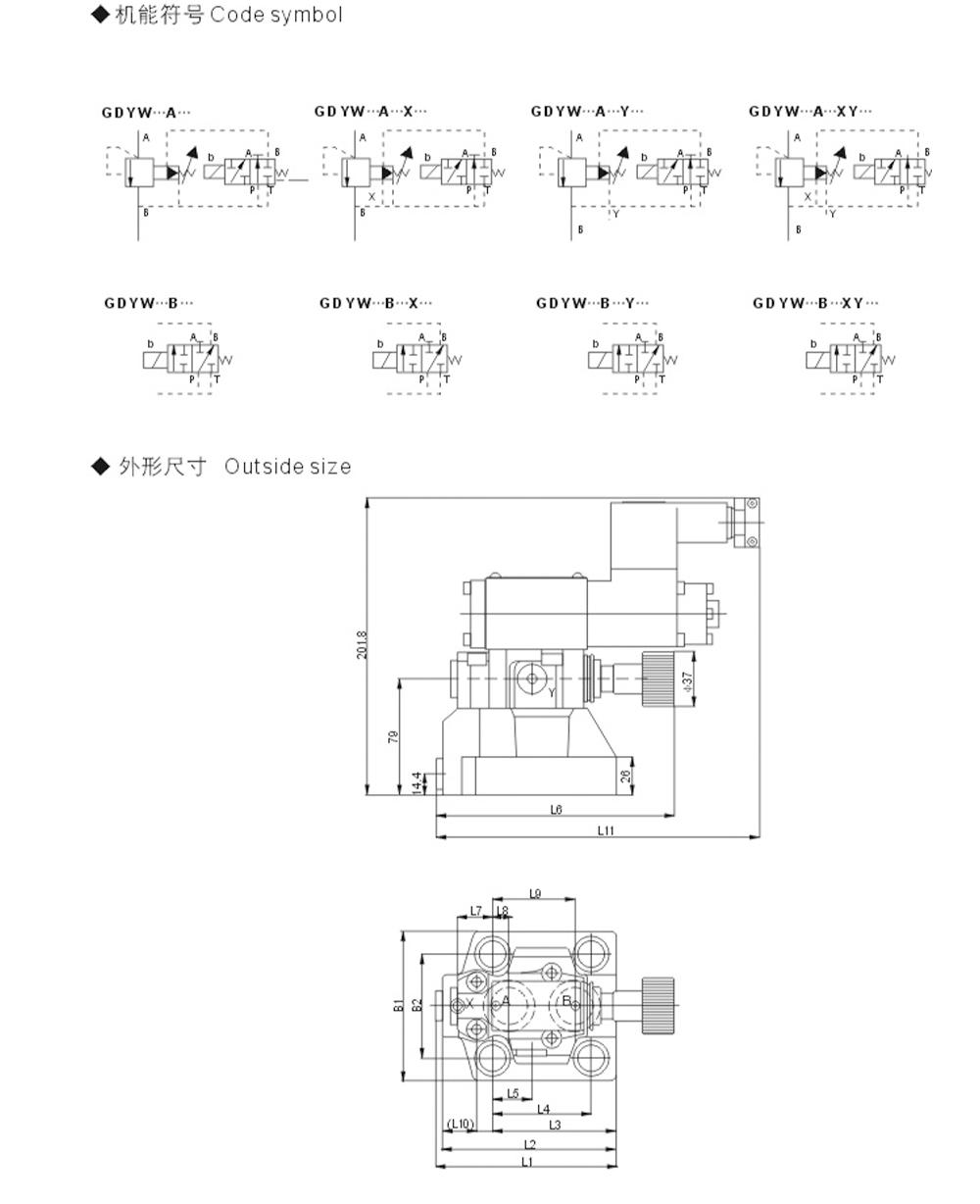

Specification B1 B2 L1 L2 L3 L4 L5 L6 L7 L8
GDYW-03 80  54  98.5  91.5  67  54  23.5  149.3  22.1
GDYW-06 100  69.8  122.2  117.5  83.7  66.7  26.5  161.8  23.8  11.1
GDYW-10 115  82.6  154.5  149.5  106.9  88.9  28.1  172.5  31.8

12.7

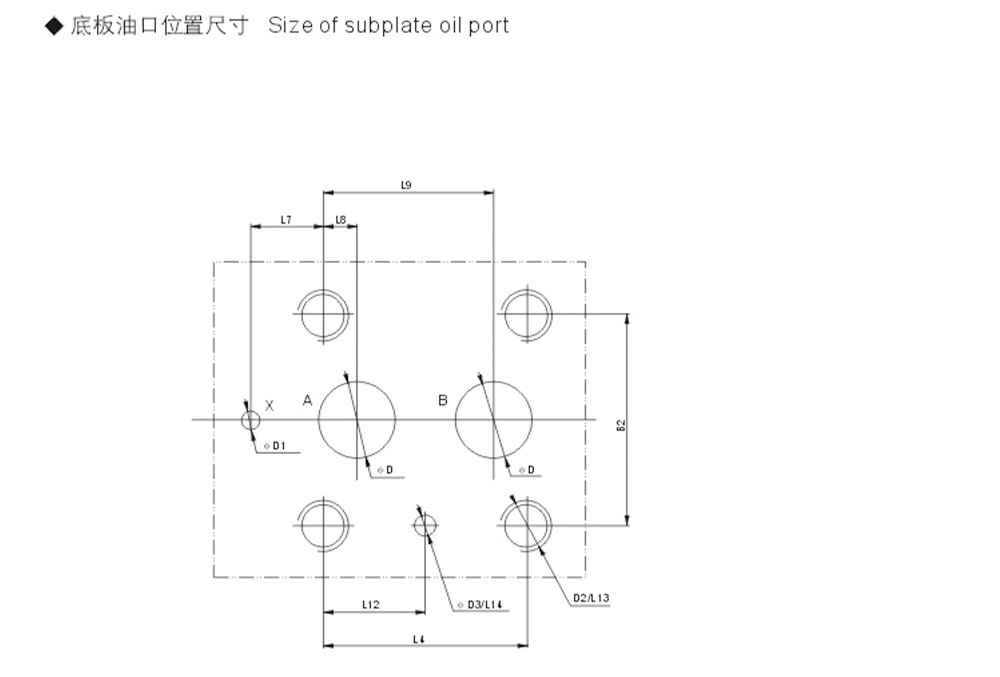

Specification L9 L10 L11 L12 L13 L14 D D1 D2 D3
GDYW-03 47.5  14  207  22.1  20  12  M12
GDYW-06 55.6  11  219.5  33.3  25  25  M16
GDYW-10 76.2  9.4  230.2  44.4  30  32  M18

OEM / ODM Customization

We provide OEM and ODM services for hydraulic equipment manufacturers, distributors, and industrial system integrators, including:

·Explosion-proof coil voltage customization
·Pressure setting range customization
·Hydraulic connection and mounting options
·Private labeling and customized packaging
·Production based on customer drawings or technical specifications

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is an Explosion-Proof Solenoid Relief Valve used for?
An Explosion Solenoid Relief Valve is used to protect hydraulic systems from excessive pressure while providing explosion-proof electrical unloading control in hazardous environments.

2. Which working media are compatible with this valve?
The valve is suitable for mineral hydraulic oil and phosphate ester hydraulic fluid commonly used in industrial hydraulic systems.

3. What is the protection rating of this valve?
The valve has an IP55 protection rating, helping protect electrical components from dust and water spray in industrial applications.

4. Can this valve be customized for different hydraulic systems?
Yes. OEM and ODM services are available, including explosion-proof electrical configurations, pressure settings, mounting options, voltage specifications, and customized labeling and packaging.

5. How can I select the right Explosion Solenoid Relief Valve?
Provide your hydraulic system parameters, including operating pressure, hydraulic fluid type, explosion-proof classification, voltage, and installation requirements. Our technical team can recommend the most suitable Explosion Solenoid Relief Valve model and configuration.
