Home / Products / Subplate Mounted Valves / Flow Control Valves / Inline Sleeve Throttle Valve

  • Inline Sleeve Throttle Valve
  • Inline Sleeve Throttle Valve
  • Inline Sleeve Throttle Valve
  • Inline Sleeve Throttle Valve
  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Hydraulic power units and hydraulic stations
·Industrial machinery and automation equipment
·Machine tools and processing equipment
·Hydraulic cylinders and actuator control systems
·Mobile hydraulic equipment

Core Functions

Precise Flow Adjustment
The valve adjusts hydraulic oil flow through the internal sleeve structure, helping control the speed of hydraulic actuators and improve system operating stability.

Compact Inline Installation
The inline design allows direct installation in hydraulic pipelines, helping simplify system layout and reduce installation space requirements.

High Pressure Hydraulic Control
The valve is designed for industrial hydraulic applications. The MK-6 model supports a maximum pressure of 250 bar, suitable for high-pressure hydraulic circuits.

Multiple Size Options
The MK series provides different sizes to match various pipeline and flow requirements. For example, the MK-6 model has a flow rate of 40 L/min and supports 1/4" (M14×1.5) connection specifications.

Technical Specifications
Model Caliber
(PT)
Metric
(W)
FlOW Maximum Pressure Weight
(kg)
MK-6 1/4" M14×1.5 40  250  0.6
MK-8 3/8" M18×1.5 60  0.8
MK-10 1/2" M22×1.5 100  1.0
MK-15 3/4" M27×2 150  1.4
MK-20 1" M33×2 200  2.8
MK-25 11/4" M42×2 280  4.5
MK-30 11/2" M48×2 400  6.8

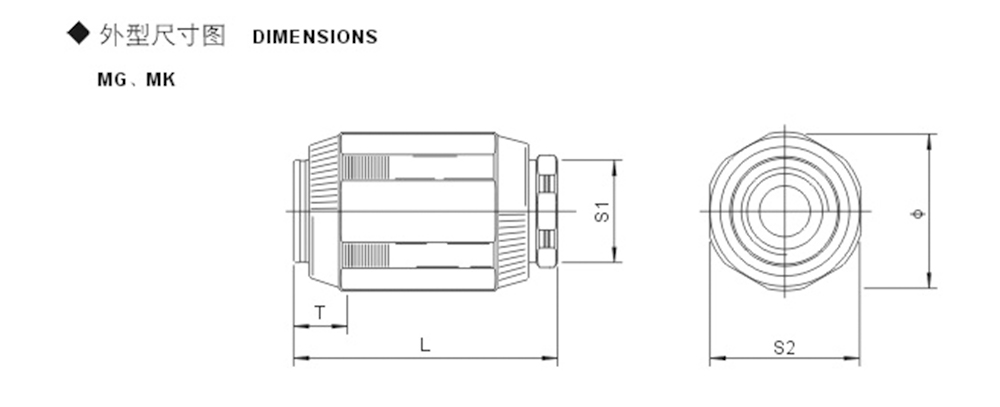

xhewyfws1787195226

Model Φ L S1 S2 T
MG-6 34  65  22  32  16
MG8 38  65  24  36  16
MG-10 48  80  32  46  18
MG-15 58  100  37  55  21
MG-20 72  110  46  70  22
MG-25 87  130  56  85  24
MG-30 93  150  64  90  28

OEM / ODM Customization

We provide OEM and ODM services for hydraulic equipment manufacturers, distributors, and system integrators, including:

·Customized connection sizes and thread specifications
·Flow adjustment range customization
·Valve structure adjustment according to hydraulic circuit requirements
·Product labeling and packaging support
·Manufacturing based on customer drawings or technical specifications

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is an Inline Sleeve Throttle Valve used for?
An Inline Sleeve Throttle Valve is used to regulate hydraulic flow in pipelines and control the operating speed of hydraulic actuators such as cylinders and motors.

2. What models are available in this valve series?
The available models include MK-6, MK-8, MK-10, MK-15, MK-20, MK-25, and MK-30. Different models are available to meet various flow and connection requirements.

3. What factors should be considered when selecting an inline throttle valve?
Key factors include working pressure, required flow rate, port size, thread specification, installation method, and hydraulic system design.

4. Can this valve be customized for OEM applications?
Yes. OEM customization options include connection specifications, flow requirements, product marking, and packaging solutions according to customer requirements.

5. How can I select the right Inline Sleeve Throttle Valve?
Provide your hydraulic system information, including pressure, flow rate, pipeline size, and application equipment. Our technical team can help recommend a suitable valve model and configuration.
