Specific Applications

·Hydraulic power units and hydraulic stations
·Machine tools and manufacturing equipment
·Injection molding machines
·Hydraulic presses and forming equipment
·Industrial automation systems

Core Functions

Adjustable Flow Control
The valve regulates hydraulic oil flow to control actuator speed, helping maintain stable operation of hydraulic cylinders and motors.

Stable Hydraulic Performance
The valve supports industrial hydraulic applications with reliable flow adjustment. The SRCG-03 model supports a maximum pressure of 250 bar.

Compact Subplate Installation
The subplate mounting design simplifies hydraulic circuit layout and allows convenient installation and maintenance in hydraulic systems.

Multiple Size Options
The SRCG series includes different models to meet various flow requirements. For example, the SRCG-03 model supports a maximum flow rate of 30 L/min (7.93 gpm).

Technical Specifications
Model Number Maximum Pressure(bar) Maximum Flow Rate
(Ipm)
Weight
(kg)
SRT SRG
SRCG-03 250(3571 psi) 30(7.93gpm) 1.4  1.5
SRCG-06 80(21.13gpm) 2.6  2.7
SRCG-10 200(52.84gpm) 6.1  5.2

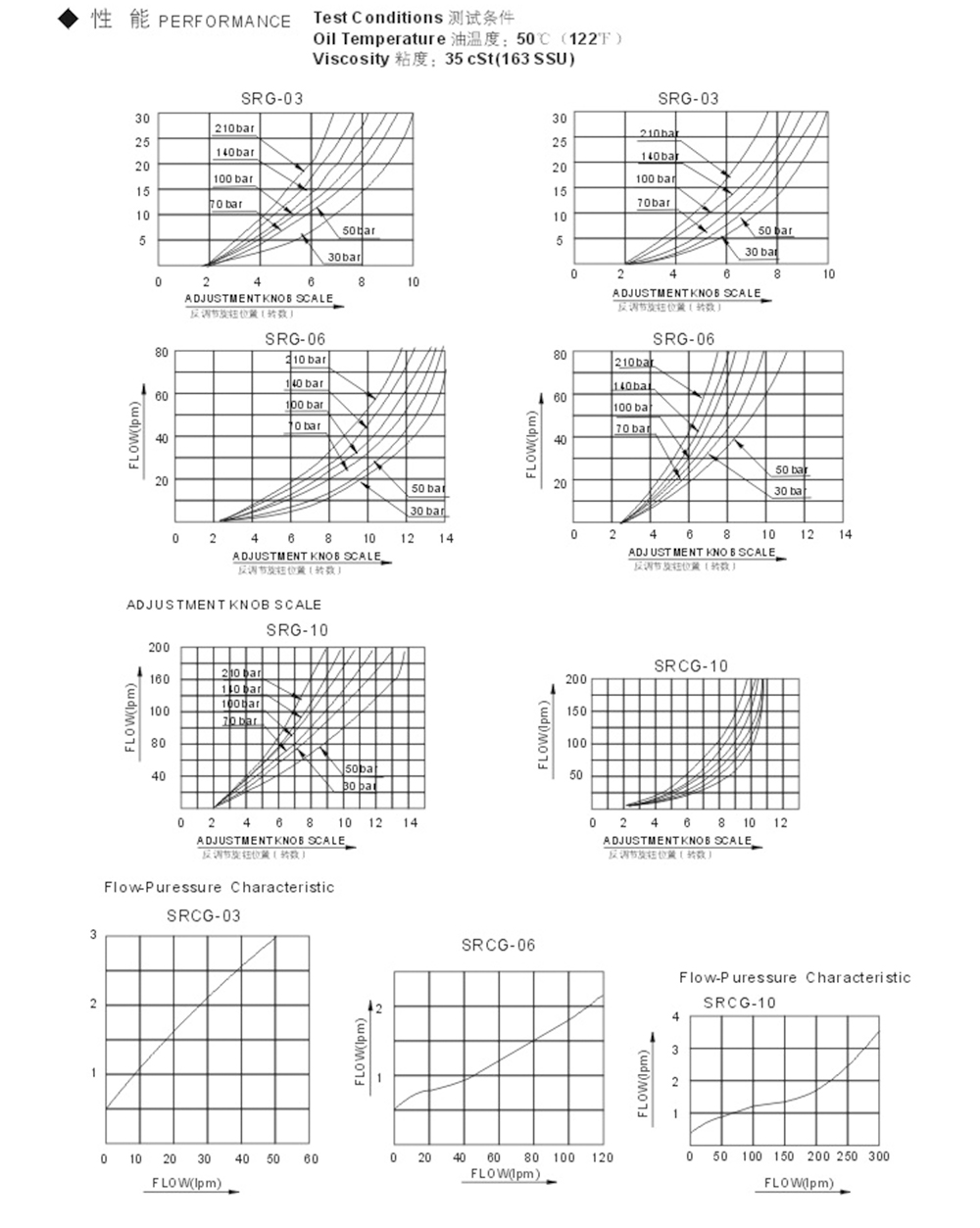

fbmxyzjj1787194731

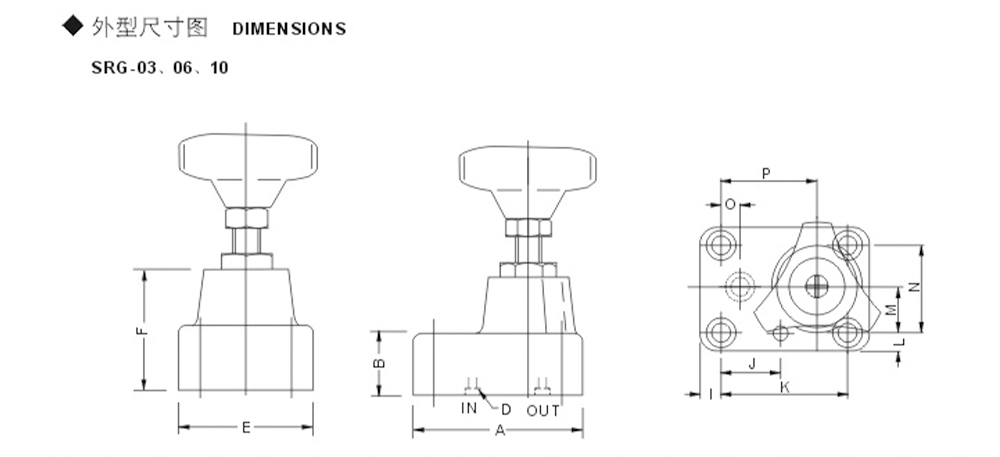

syhupzjr1787194737

Model A B C D E F G H I J K L M N P
SRG-03 80(3.15") 30(1.18") - P18 60(2.36") 61(2.40")
-

-
10(0.39") 30(1.18") 60(2.36") 10(0.39") 20(0.79") 40(1.57") 15(0.59") 45(1.77")
SRG-06 92(36.2") 42(1.65") - P28 80(3.15") 73(2.87")
-

-
11(0.43") 35(1.38") 70(2.76") 11(0.43") 29(1.14") 58(2.28") 16(0.63") 54(2.12")
SRG-10 120(4.72") 55(2.17") - P36 100(39.4") 93(3.66")
-

-
14(0.55") 46(1.81") 92(3.62") 14(0.55") 33(1.42") 72(2.83") 21(0.83") 71(2.79")

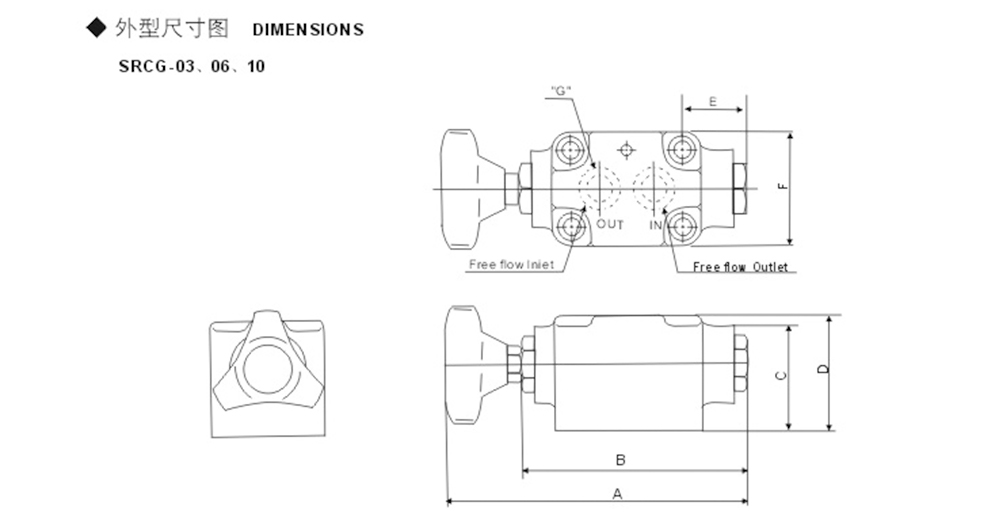

ubeaqgcs1787194751

Model A B C D E F G SCREW
SRCG-03 180(7.09") 120(4.72") 38(1.50") 47(1.85") 12(0.47") 59(2.32") P18 M8×65L
SRCG-06 222(8.74") 162(6.38") B5(2.56") 75(2.95") 34(1.34") 82(3.23") P28 M8×75L
SRCG-10 265(10.43") 190(7.48") 82(3.23") 95(3.74") 32(1.26") 100(3.94") P38 M12×95L

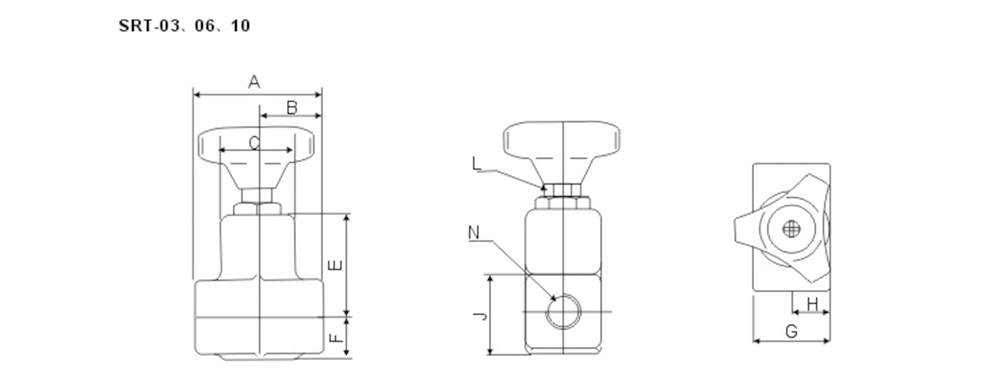

otjehcdr1787194766

Model A B C D E F G H J K L N
SRT-03 70(2.76") 35(1.38") 40(1.57") - 54(2.13") 23(0.91") 42(1.65") 20(0.79") 40(1.57") - 19(7.48") 38
SRT-06 100(3.94") 50(1.97") 40(1.57") - 62(2.44") 30(1.18") 62(2.44") 30(1.18") 60(2.38") - 19(7.48") 3/4
SRT-10 130(5.12") 65(2.56") 56(2.20") - 73(28.7") 40(1.57") 82(3.23") 40(1.57") 80(3.15") - 22(8.66") 11/4

OEM / ODM Customization

We provide OEM and ODM services for hydraulic equipment manufacturers, distributors, and system integrators, including:

·Customized flow control requirements
·Valve configuration adjustment according to hydraulic circuit design
·Port size and mounting specification customization
·Product labeling and packaging support
·Production based on customer drawings or technical requirements

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a Subplate Throttle Valve used for?
A Subplate Throttle Valve is used to regulate hydraulic oil flow and control the operating speed of hydraulic actuators such as cylinders and motors.

2. What models are available in this valve series?
The available models include SRCG-03, SRCG-06, and SRCG-10. Different models are designed to match different hydraulic flow requirements and system configurations.

3. What factors should be considered when selecting a throttle valve?
Key factors include maximum pressure, required flow rate, installation type, port configuration, adjustment range, and hydraulic circuit requirements.

4. Can this valve be customized for OEM projects?
Yes. OEM customization options include valve specifications, mounting requirements, product marking, and packaging solutions based on customer application needs.

5. How can I select the right Subplate Throttle Valve for my hydraulic system?
Provide your hydraulic system parameters, including pressure, flow rate, equipment type, and installation requirements. Our technical team can help recommend a suitable valve model and configuration.
