Specific Applications

·Hydraulic power units and hydraulic stations
·Industrial automation equipment
·Machine tools and manufacturing machinery
·Hydraulic presses and forming systems
·Hydraulic circuits requiring reduced pressure control

Core Functions

Stable Pressure Reduction
The valve reduces inlet pressure to a controlled outlet pressure, helping protect hydraulic components that require lower operating pressure and maintain stable system performance.

Direct-Acting Pressure Adjustment
The direct-acting structure provides simple pressure control and is suitable for hydraulic circuits requiring reliable pressure regulation.

Compact Modular Installation
The modular design does not require additional pipeline connections, helping reduce potential oil leakage points, installation costs, and required system space.

Low Leakage and Stable Operation
The optimized structure helps achieve low leakage, low vibration, and low operating noise, supporting easier maintenance and long-term hydraulic system operation.

Multiple Pressure Adjustment Options
The MRP series provides three structural designs and four pressure adjustment ranges. The MRP-02 model supports a maximum pressure of 250 bar and a maximum flow rate of 40 L/min (10.56 gpm).

Technical Specifications
Model Number Maximum Pressure(bar) Minimum adjustment pressure Maximum Flow Rate
(Ipm)
Weight
(kg)
  MRP-02 250(3571psi) Please refer to the minimum adjustment pressure characteristics. 40(10.56gpm) 1.4
  MRP-03 80(21.13gpm) 3.4

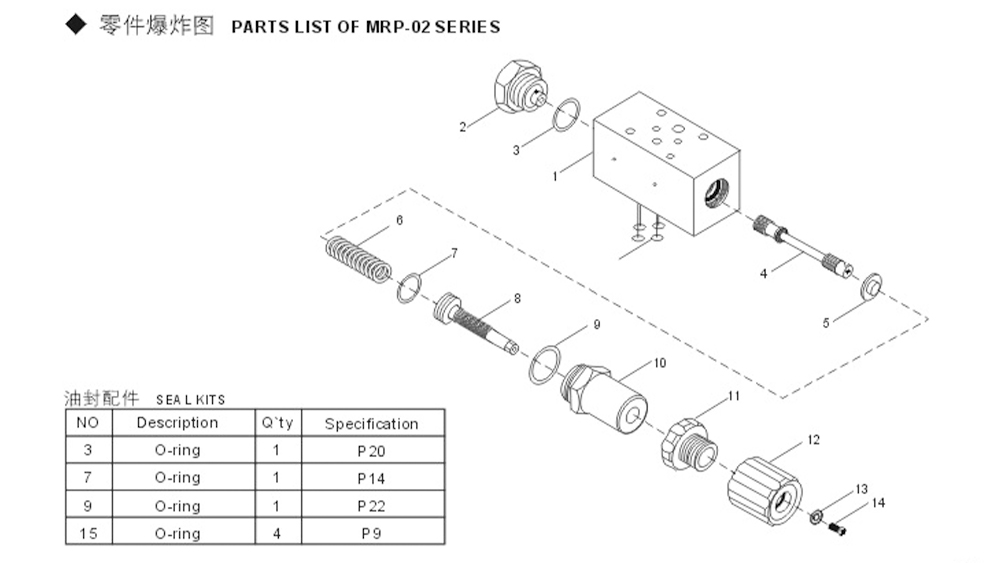

ajclzofi1787201393

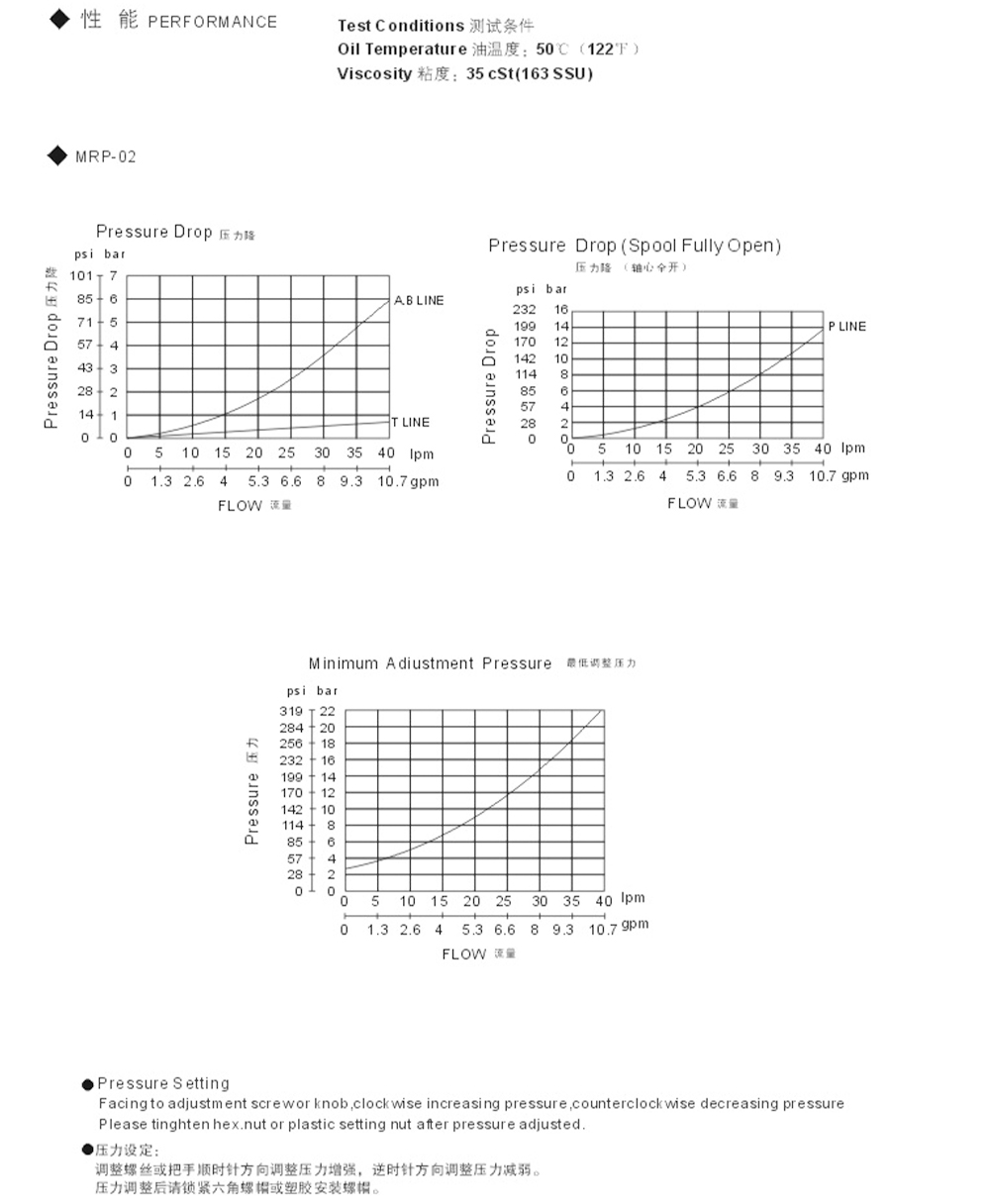

zdyoivmz1787201397

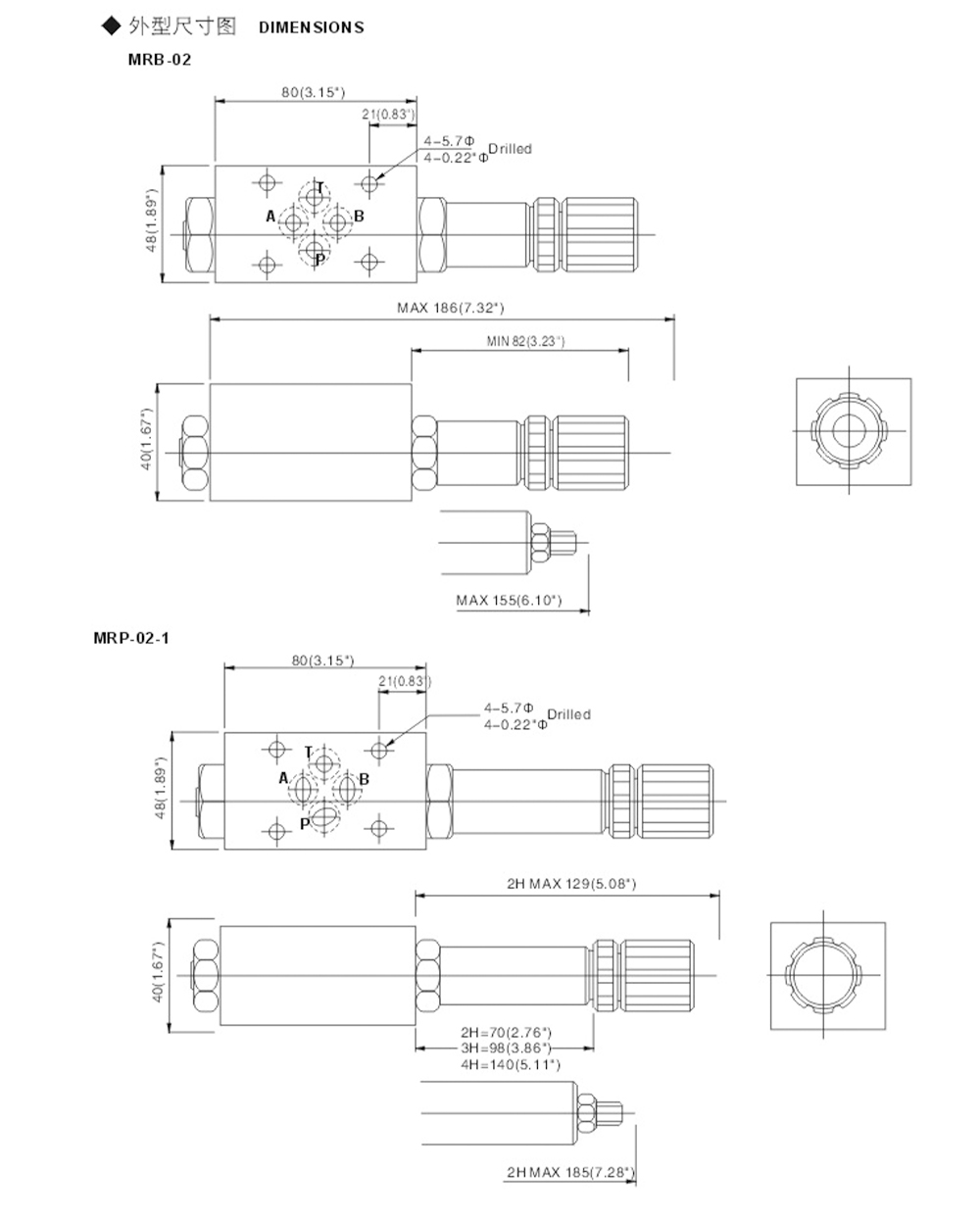

tcfhezly1787201431

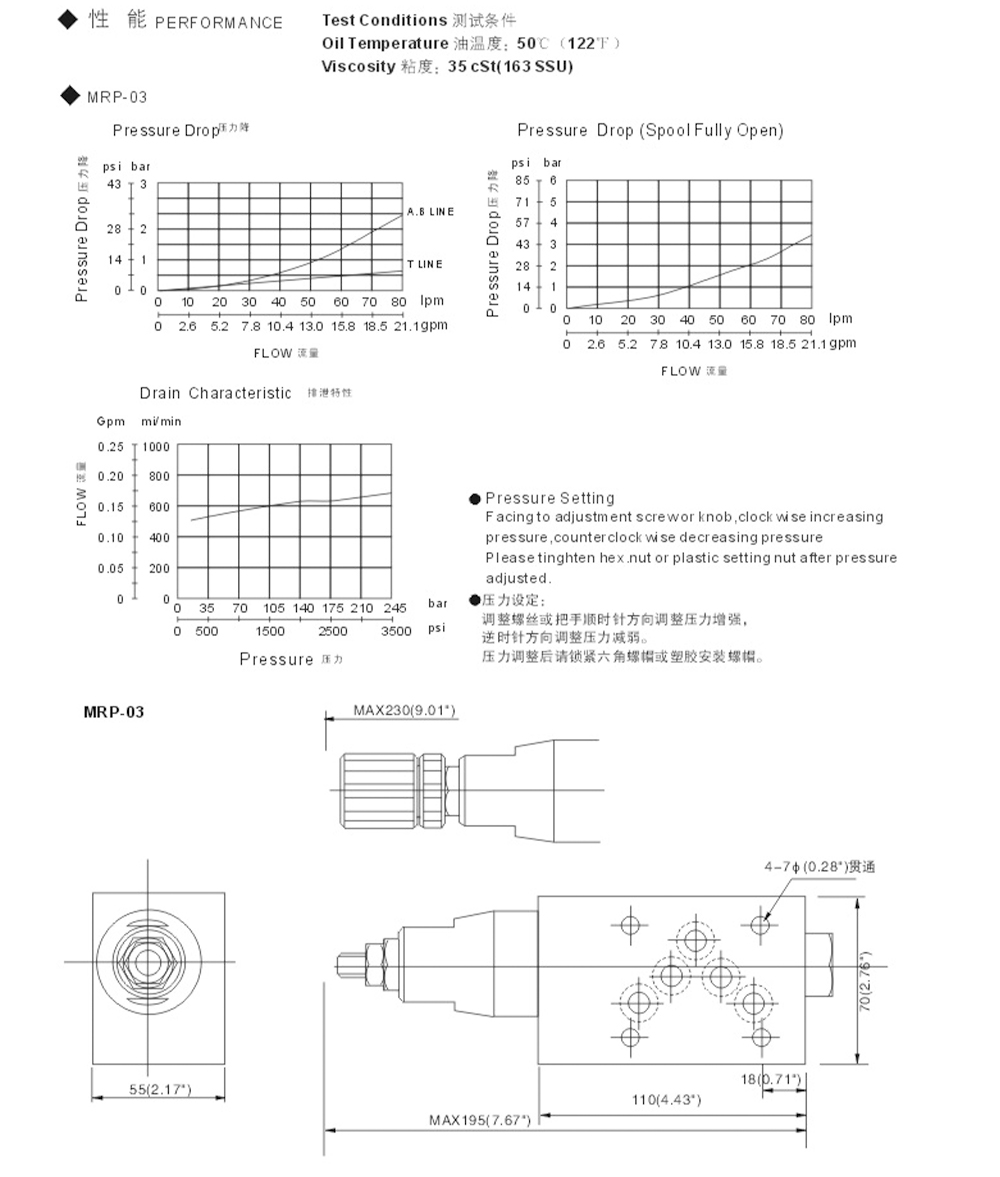

gxgqvkhm1787201407


OEM / ODM Customization

We provide OEM and ODM services for hydraulic equipment manufacturers, distributors, and system integrators, including:

·Customized pressure adjustment ranges
·Valve structure selection according to hydraulic circuit requirements
·Modular mounting specification customization
·Product labeling and packaging support
·Production based on customer drawings or technical requirements

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a Modular Pressure Reducing Valve used for?
A Modular Pressure Reducing Valve is used to reduce hydraulic pressure in a specific circuit and maintain a stable outlet pressure for hydraulic components.

2. What models are available in this valve series?
The available models include MRP-02 and MRP-03. Different models can be selected according to hydraulic system requirements, flow rate, and installation conditions.

3. What factors should be considered when selecting a pressure reducing valve?
Important factors include inlet pressure, required outlet pressure, flow rate, mounting type, connection specifications, and hydraulic circuit design.

4. Are ISO, CETOP, NFPA, and DIN mounting standards supported?
Yes. The valve series is designed for modular mounting surfaces compatible with ISO, CETOP, NFPA, and DIN international standards.

5. How can I select the right Modular Pressure Reducing Valve?
Provide your hydraulic system parameters, including pressure requirements, flow rate, equipment type, and installation conditions. Our technical team can help recommend a suitable valve model and configuration.
