  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Hydraulic power units and hydraulic stations
·Industrial machinery and automation equipment
·Machine tools and manufacturing systems
·Hydraulic presses and forming equipment
·Hydraulic circuits requiring pressure protection and adjustment

Core Functions

Hydraulic Pressure Protection
The valve controls system pressure by releasing excess hydraulic oil when pressure exceeds the preset value, helping protect pumps, actuators, and other hydraulic components.

Pilot-Operated Pressure Adjustment
The pilot control structure provides stable pressure regulation and supports different pressure adjustment ranges for various hydraulic applications.

Compact Modular Installation
The modular design does not require additional pipeline connections, helping reduce potential oil leakage points, installation costs, and required system space.

Stable Hydraulic Operation
The valve features low leakage, low vibration, and low noise characteristics, helping improve hydraulic system reliability and maintenance efficiency.

Multiple Configuration Options
The MBP series provides four structural designs and four pressure adjustment ranges. The MBP-02 model supports a maximum pressure of 250 bar and a maximum flow rate of 40 L/min (10.56 gpm).

Technical Specifications
Model Number Maximum Pressure(bar) Minimum adjustment pressure Maximum Flow Rate
(Ipm)
Weight
(kg)

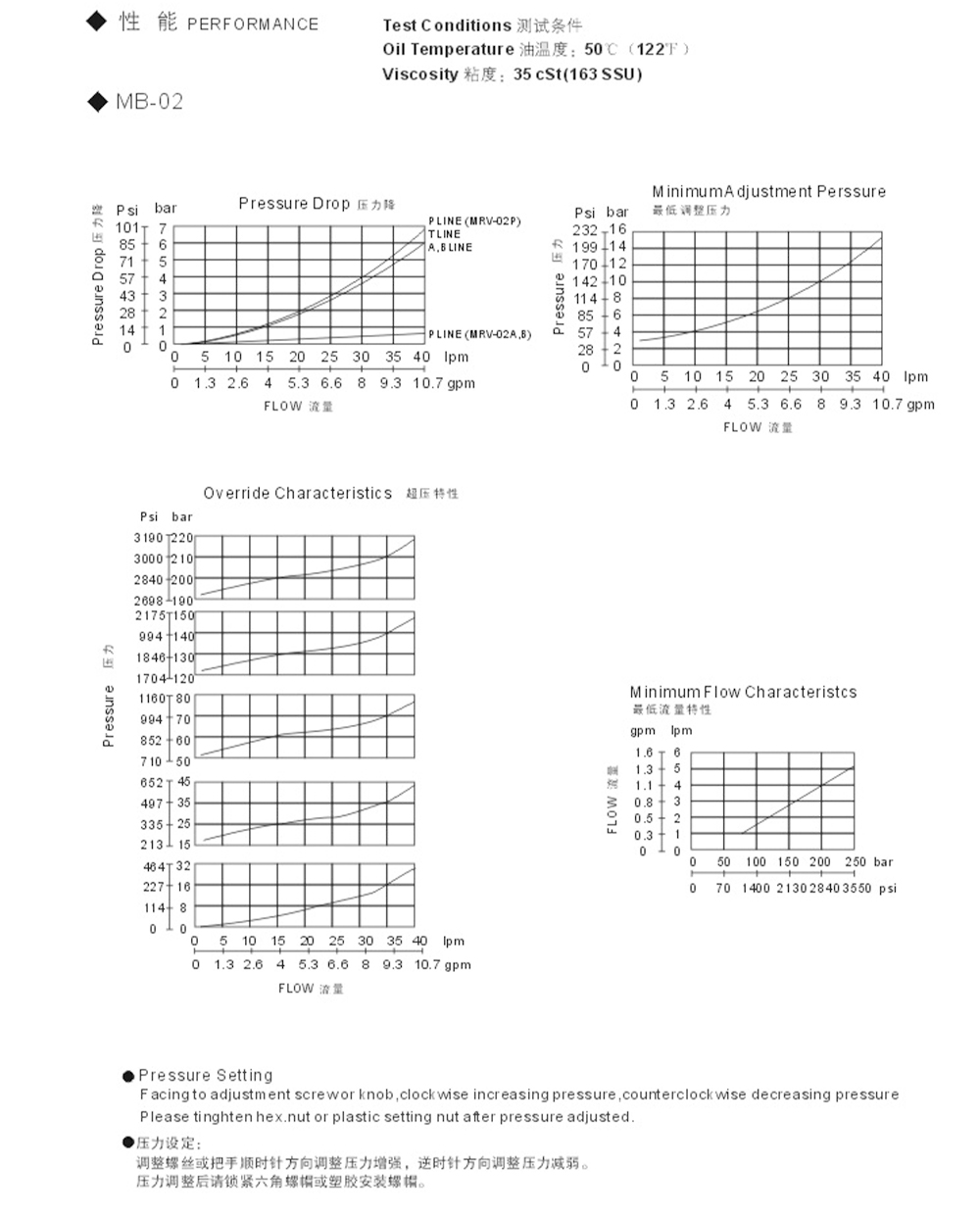

MBP-02 250(3571 psi) Please refer to the minimum adjustment pressure characteristics. 40(10.56gpm) 1.4

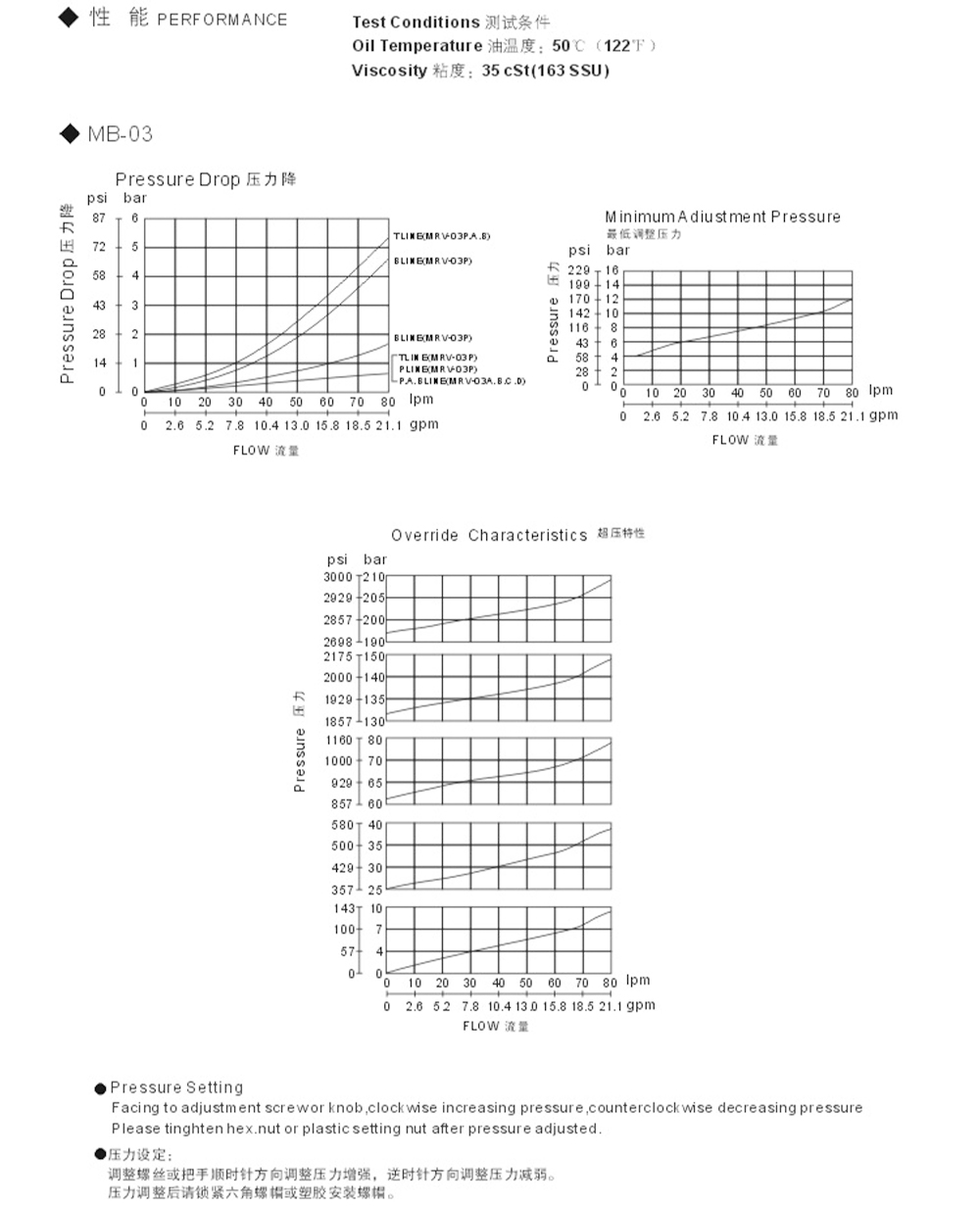

MBP-03 80(21.13gpm) 3.4

jzjiayni1787201031

exrstbqn1787201035

ohbwdudb1787201039

cqzwcnni1787201043

ntfcbwls1787201047

jnpiibkx1787201051

gezapytc1787201082


OEM / ODM Customization

We provide OEM and ODM services for hydraulic equipment manufacturers, distributors, and system integrators, including:

·Customized pressure adjustment ranges
·Valve structure selection according to hydraulic circuit requirements
·Modular mounting specification customization
·Product labeling and packaging support
·Production based on customer drawings or technical specifications

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a Modular Relief Valve used for?
A Modular Relief Valve is used to regulate hydraulic system pressure and protect components from excessive pressure conditions by releasing excess oil flow.

2. What models are available in this valve series?
The available models include MBP-02 and MBP-03. Customers can select the suitable model according to system pressure, flow requirements, and installation conditions.

3. What are the advantages of a pilot-operated relief valve design?
A pilot-operated design provides stable pressure control and is suitable for hydraulic systems requiring accurate pressure adjustment and reliable operation.

4. Are ISO, CETOP, NFPA, and DIN mounting standards supported?

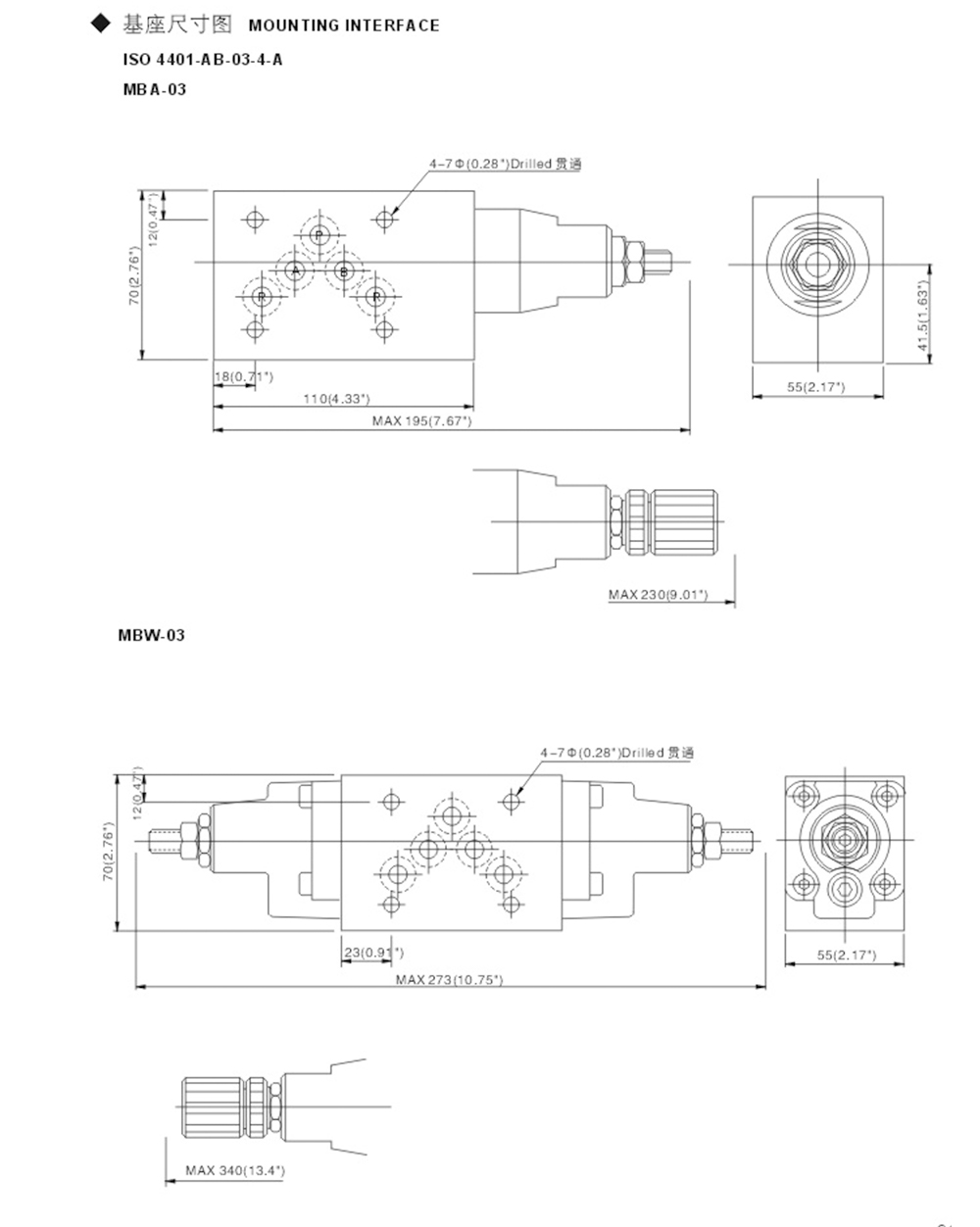

Yes. The valve series is designed for modular mounting surfaces compatible with ISO, CETOP, NFPA, and DIN international standards.

5. How can I select the right Modular Relief Valve?
Provide your hydraulic system parameters, including pressure range, flow rate, mounting standard, and application requirements. Our technical team can help recommend a suitable valve model and configuration.
