  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Hydraulic power units (HPUs)
·Industrial hydraulic systems
·Hydraulic presses
·Machine tools
·Injection molding machines
·Construction machinery
·Hydraulic manifold systems
·Manufacturing automation equipment

Core Functions

Reliable Pressure Protection
The Subplate Relief Valve automatically opens when system pressure reaches the preset value, protecting hydraulic components from excessive pressure and improving system safety.

High Pressure Capacity
Based on Model DB-10, the valve supports a maximum operating pressure of 315 bar, making it suitable for medium- and high-pressure hydraulic systems.

Large Flow Handling
The Subplate Relief Valve provides a maximum flow capacity of 250 L/min (66.05 gpm) (Based on Model DB-10), allowing efficient pressure relief in high-flow hydraulic circuits.

Standard Subplate Installation
The subplate mounting design simplifies installation and maintenance while ensuring compatibility with common hydraulic manifold systems.

Stable Long-Term Operation
The valve is designed for consistent pressure regulation, helping maintain stable hydraulic performance and extending the service life of system components.

Technical Specifications
Model Number Maximum Pressure(bar) Minimum adjustment pressure Maximum Flow Rate
(Ipm)
Weight
(kg)
DB-10 315(4500 psi) Please refer to the minimum adjustment pressure characteristics. 250(66.05gpm) 3.8
DB-20 500(132.09gpm) 5.2
DB-30 650(171.72gpm) 7.2

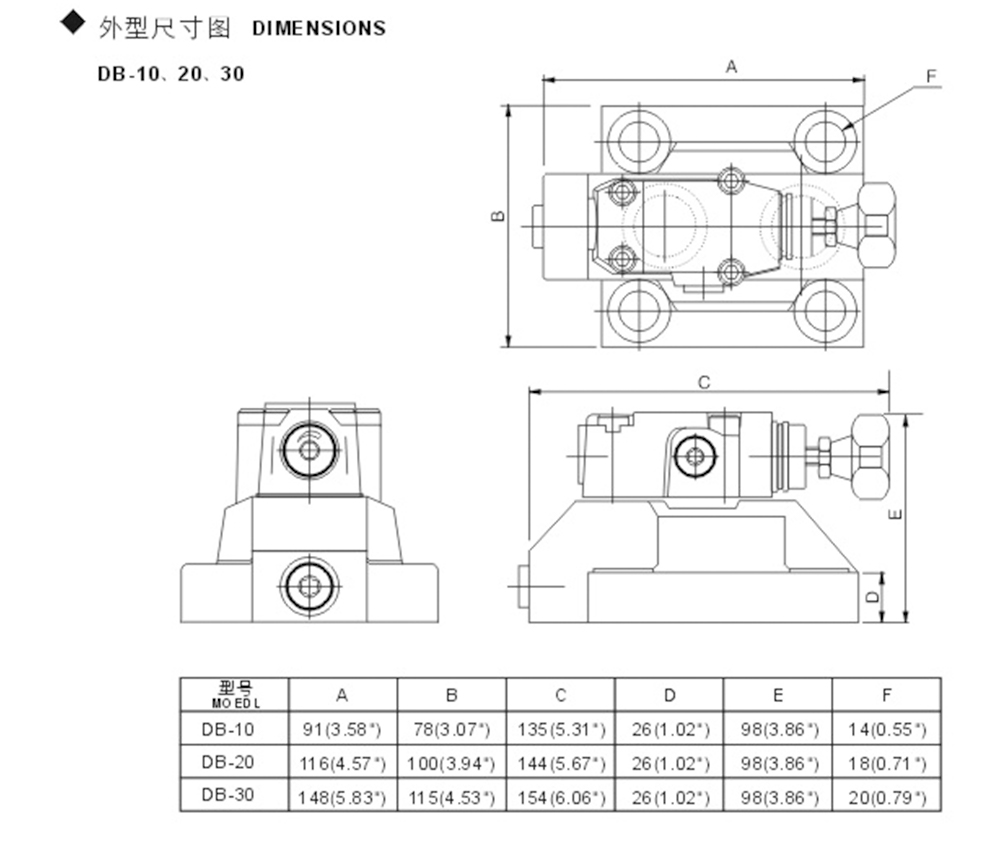

qhuljhic1787130135

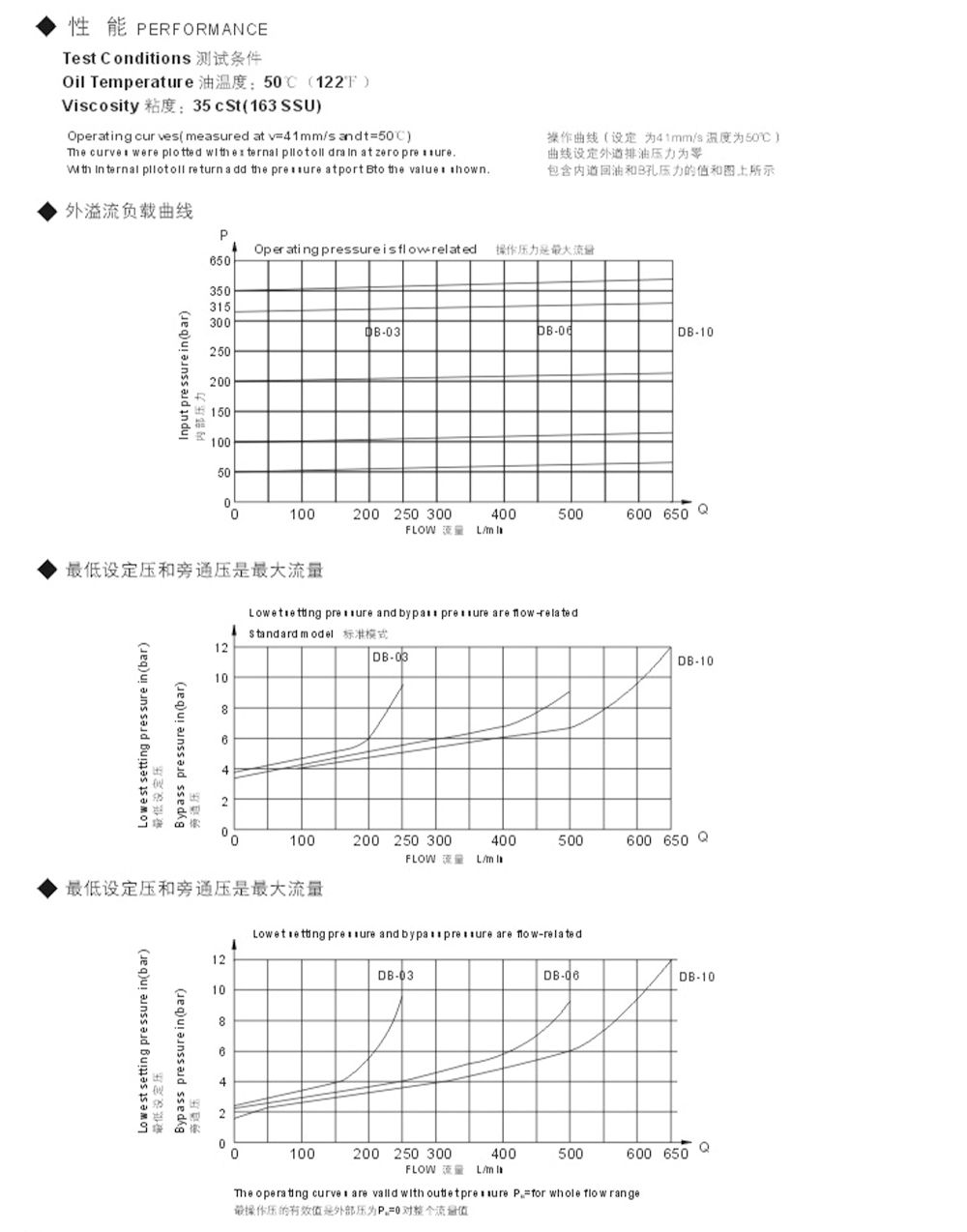

ilrercrg1787130141


OEM / ODM Customization

We provide OEM and ODM services for hydraulic relief valves to meet different application requirements.
·Pressure setting customization
·Subplate interface customization
·Port configuration customization
·Seal material selection
·Surface treatment options
·Logo marking and packaging customization
·Hydraulic system application support

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.



FAQ

1. What is a subplate relief valve used for?
A subplate relief valve is used to protect hydraulic systems by automatically releasing excess pressure when the preset pressure is reached.

2. What models are available for this series?
Representative models include DB-10, DB-20, and DB-30, covering different hydraulic system capacities.

3. What are the pressure and flow capabilities of this valve?
Based on Model DB-10, the valve provides a maximum operating pressure of 315 bar and a maximum flow capacity of 250 L/min (66.05 gpm).

4. What are the advantages of subplate mounting?
Subplate mounting allows easier installation, convenient maintenance, standardized connections, and simple integration into hydraulic manifold systems.

5. How can I choose the right Subplate Relief Valve model?
Selection should be based on the required operating pressure, flow capacity, mounting standard, and hydraulic circuit design. The appropriate Subplate Relief Valve model should be selected according to the actual application requirements.
