  • Electro-Hydraulic Proportional Pressure & Flow Control Valve
  • Electro-Hydraulic Proportional Pressure & Flow Control Valve
  • PRODUCT DETAILS
  • FAQ
Specific Applications

·Hydraulic power units and hydraulic stations
·CNC machines and machining equipment
·Industrial automation systems
·Injection molding and forming machinery
·Energy-saving hydraulic systems requiring variable control

Core Functions

Proportional Pressure and Flow Control
The valve uses input current signals to proportionally adjust hydraulic pressure and flow, enabling stepless control for different operating conditions.

Energy-Saving Hydraulic Operation
The valve provides the minimum working pressure and energy required by hydraulic components, helping reduce energy consumption and system operating costs.

Temperature Compensation Design
The integrated temperature compensation function helps reduce the influence of oil temperature changes and improves pressure and flow stability during operation.

Electro-Hydraulic Integrated Control
When combined with a power amplifier, the valve converts electrical signals into hydraulic control output, supporting automated hydraulic system applications.

Wide Flow Adjustment Range
The EFBG-03-125 model supports a maximum working pressure of 24.5 MPa, a maximum flow rate of 125 L/min, and a flow adjustment range of 1.0–125 L/min.

Technical Specifications
Model EFBG-03-125 EFBG-06-250 EFBG-10-500
Maximum Operating Pressure (MPa) 24.5  24.5  24.5
Maximum Flow Rate (L/min) 125  250  500
Flow Rate Adjustment Range (L/min) 1.0-125 2.5-250 5.0-500
Traffic Control Rated Current (mA) 680  580  700
Coil Resistance (Ω) 43.5  43.5  43.5
Pressure (MPa) 0.6  0.7  0.9
Hysteresis <7% <7% <7%
Repeatability 1% 1% 1%
Pressure Control Pressure Adjustment Range (MPa) C:1.4~14 H:1.4~21 C:1.5~14 H:1.5~21 C:1.6~14 H:1.6~21
Rated Current (mA) C:710 H:770 C:690 H:730 C:690 H:690
Coil Resistance (Ω) 10  10  10
Hysteresis <3% <3% <3%
Repeatability 1% 1% 1%
Weight(kg) 16  30  60

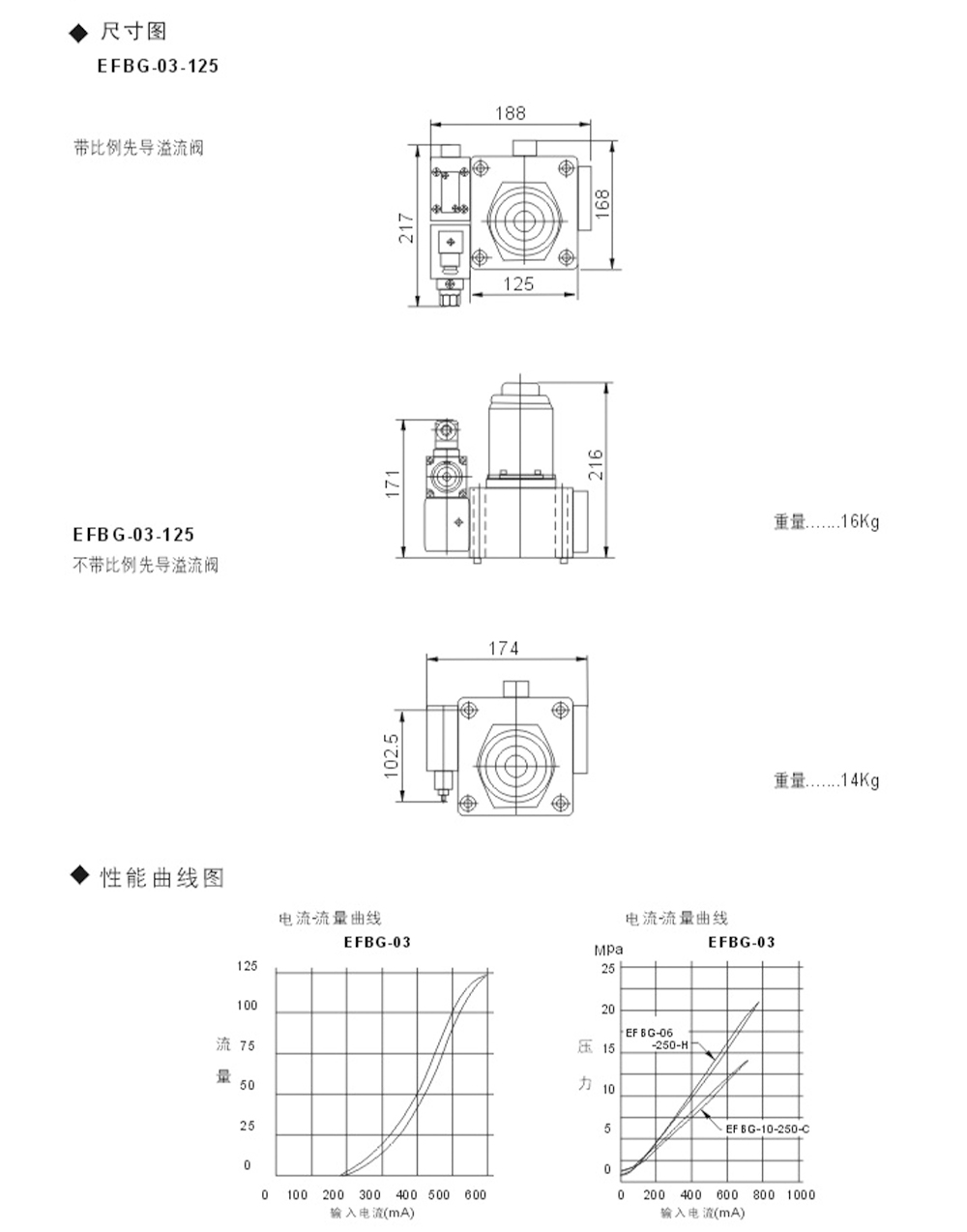

yaynnsmp1787205330

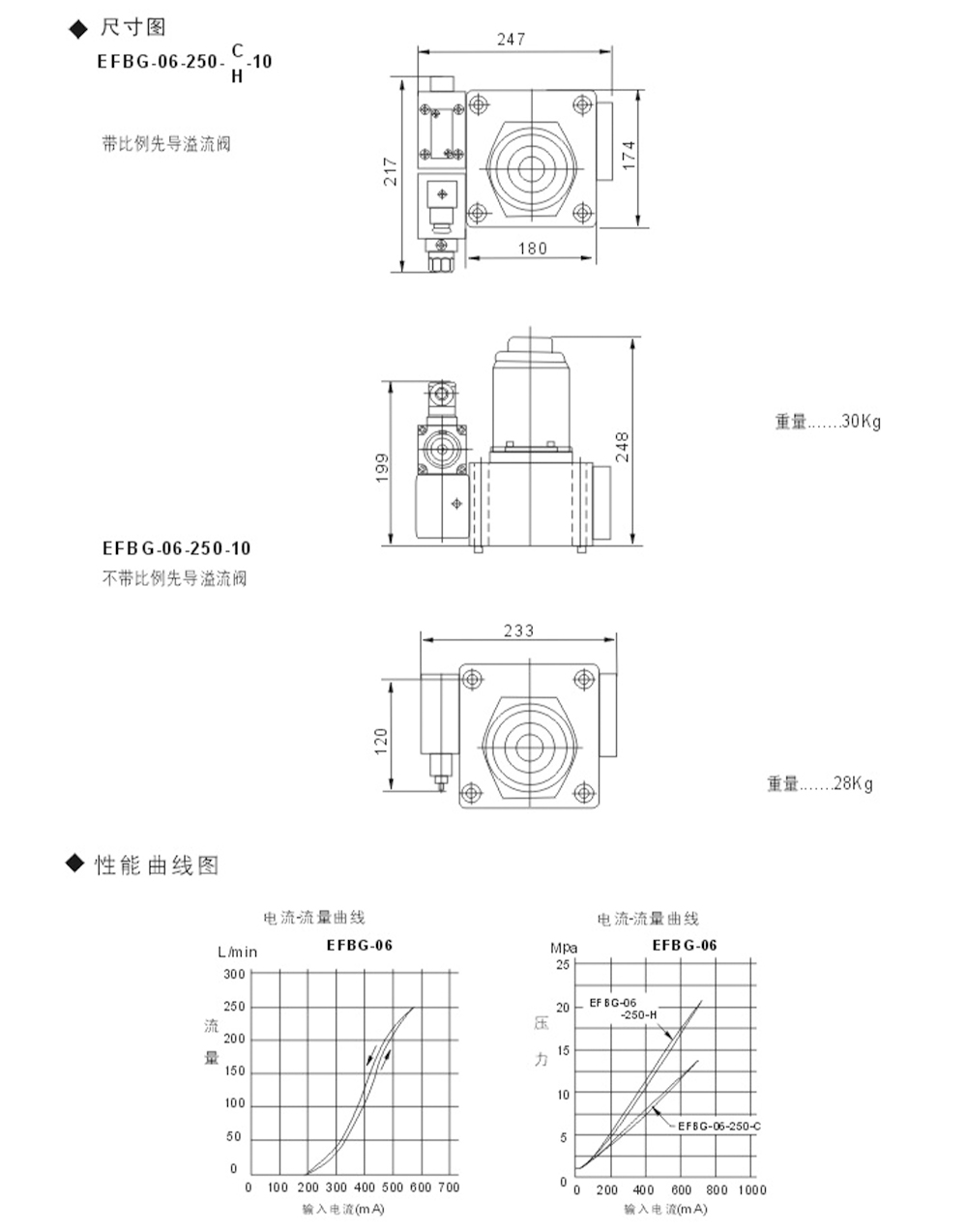

zrgwlrub1787205335

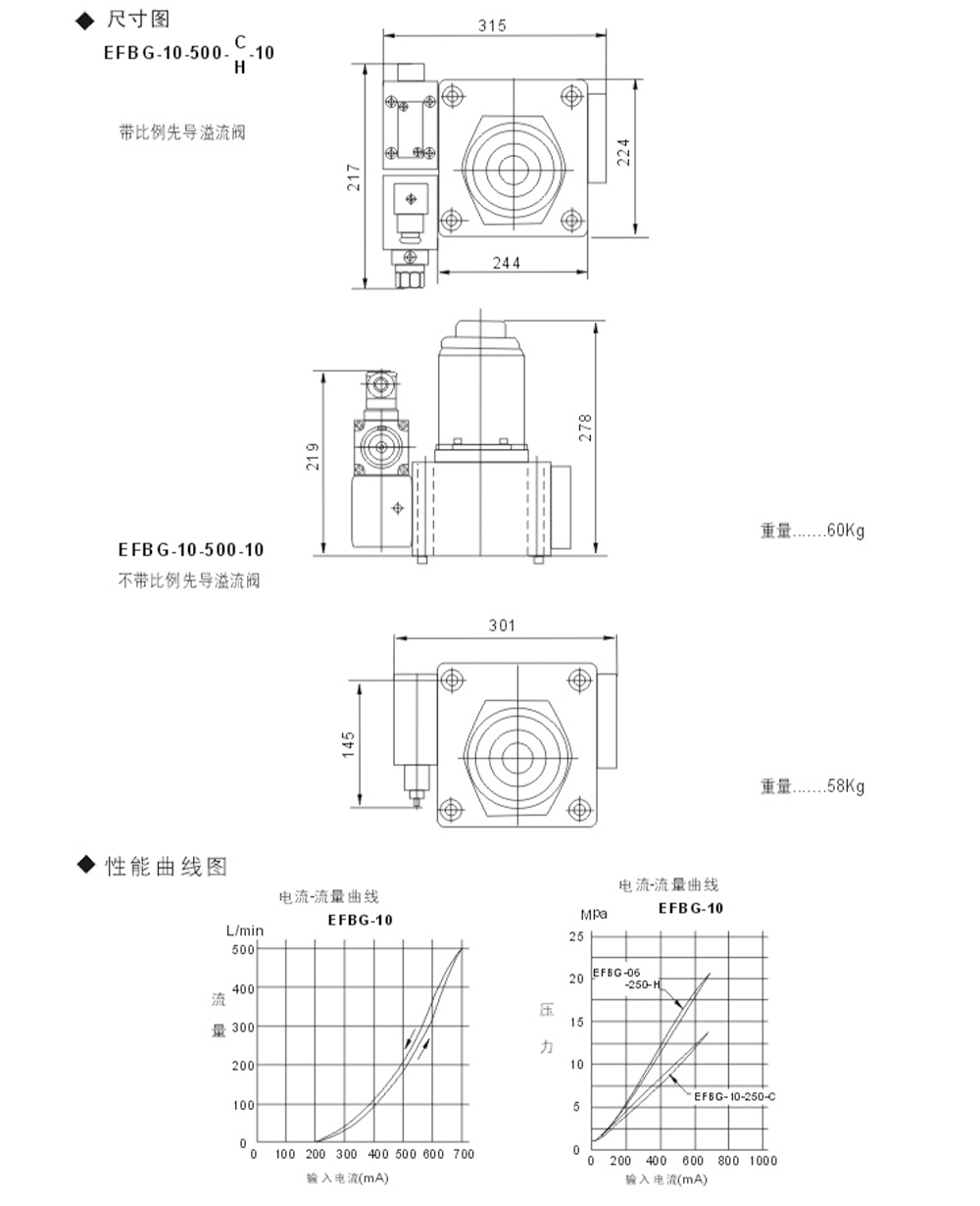

bcffqooe1787205339


OEM / ODM Customization

We provide OEM and ODM services for hydraulic equipment manufacturers, distributors, and system integrators, including:

·Customized pressure and flow control requirements
·Electrical input and amplifier compatibility adjustment
·Valve configuration optimization according to hydraulic system design
·Product labeling and packaging support
·Production based on customer drawings or technical specifications

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is an Electro-Hydraulic Proportional Pressure & Flow Control Valve used for?
An Electro-Hydraulic Proportional Pressure & Flow Control Valve is used to continuously control hydraulic pressure and flow through electrical signals, helping improve system efficiency and control accuracy.

2. What are the advantages of proportional pressure and flow control technology?
The proportional design enables stepless adjustment, energy-saving operation, reduced noise, and more flexible hydraulic system control compared with fixed control valves.

3. Does this valve require a power amplifier?
Yes. The valve is designed to work with a power amplifier to achieve electro-hydraulic proportional control and convert electrical input signals into hydraulic output.

4. What factors should be considered when selecting this valve?
Important factors include working pressure, required flow range, control signal, hydraulic circuit design, oil temperature conditions, and equipment application requirements.

5. How can I select the right Electro-Hydraulic Proportional Pressure & Flow Control Valve?
Provide your hydraulic system parameters, including pressure requirements, flow range, control method, and application conditions. Our technical team can help recommend a suitable valve model and configuration.
