Specific Applications

·Hydraulic power units and hydraulic stations
·Industrial automation equipment
·CNC machines and machining systems
·Injection molding and forming machinery
·Hydraulic systems requiring precise pressure control

Core Functions

Proportional Pressure Adjustment
The valve uses proportional electrical control signals to adjust hydraulic pressure continuously, allowing flexible pressure control according to system requirements.

Stable Pressure Regulation
The pilot-operated structure provides precise and stable pressure control, helping maintain consistent hydraulic system performance during operation.

Low Noise Hydraulic Operation
The valve combines proportional pressure control and low-noise relief valve technology to reduce operating noise and improve working conditions in industrial environments.

Electro-Hydraulic Integrated Control
When used with a power amplifier, the valve converts electrical input signals into hydraulic pressure control, simplifying system automation and improving control response.

Smooth Variable Control
The proportional design enables stepless pressure adjustment, making it suitable for hydraulic applications requiring gradual and accurate pressure changes.

Technical Specifications
Model Number Maximum Operating Pressure
(Mpa)
Maximum Flow Rate
(L/min)
Minimum Flow Rate
(L/min)
Pressure Rating
(MPa)
Rated Current
(mA)

Line Diagram Resistance
(Q)
Hysteresis Repeatability Weight
(kg)

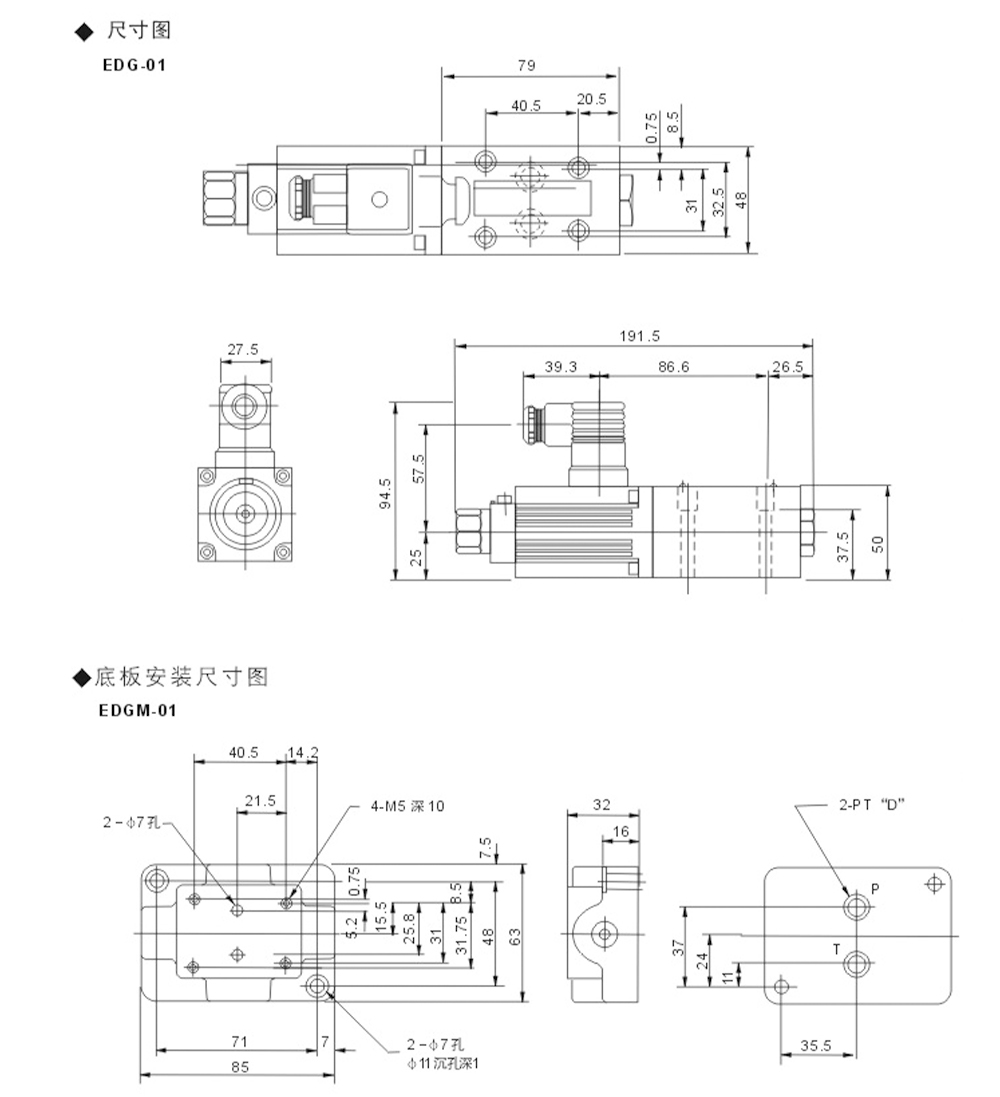

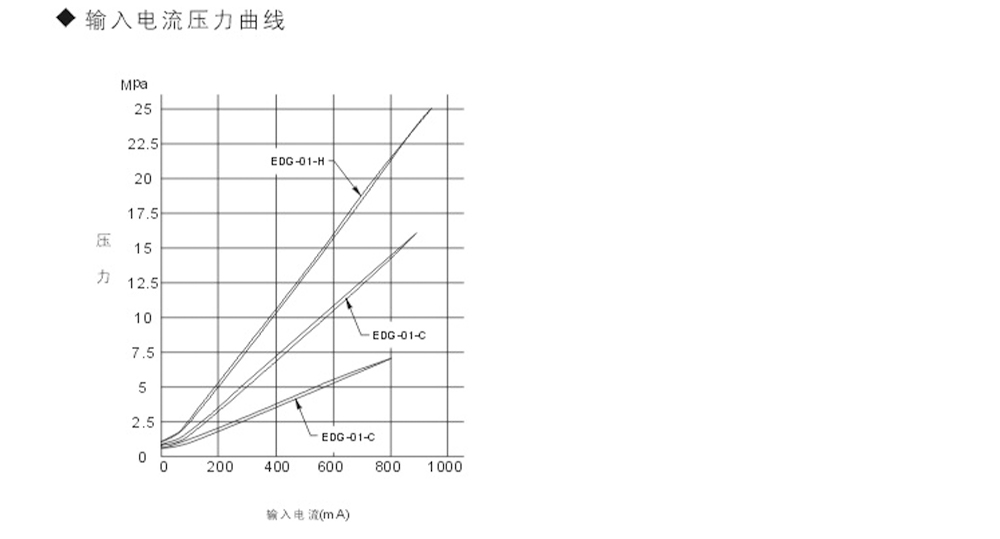

EDG-01-*-* 24.5  0.3  B:0.5~7.0
C:1.0~16
H:1.2~24.5
B:800
C:900
H:950
10  Less than 3% 1%

yfdtvewm1787203665

ntrqtrwl1787203670

Model Number Maximum Operating Pressure
(Mpa)
Maximum Flow Rate
(L/min)
Minimum Flow Rate
(L/min)
Pressure Rating
(MPa)
Rated Current
(mA)
Line Diagram Resistance
(Q)
Hysteresis Repeatability Weight
(kg)
EBG-03 24.5  100  B:0.5-7.0
C:1.0-16
H:1.2-24.5
C:700 H:820 10  <2% 1% 5.6
EBG-06 200  C:750H:800 10  <2% 1% 6.3

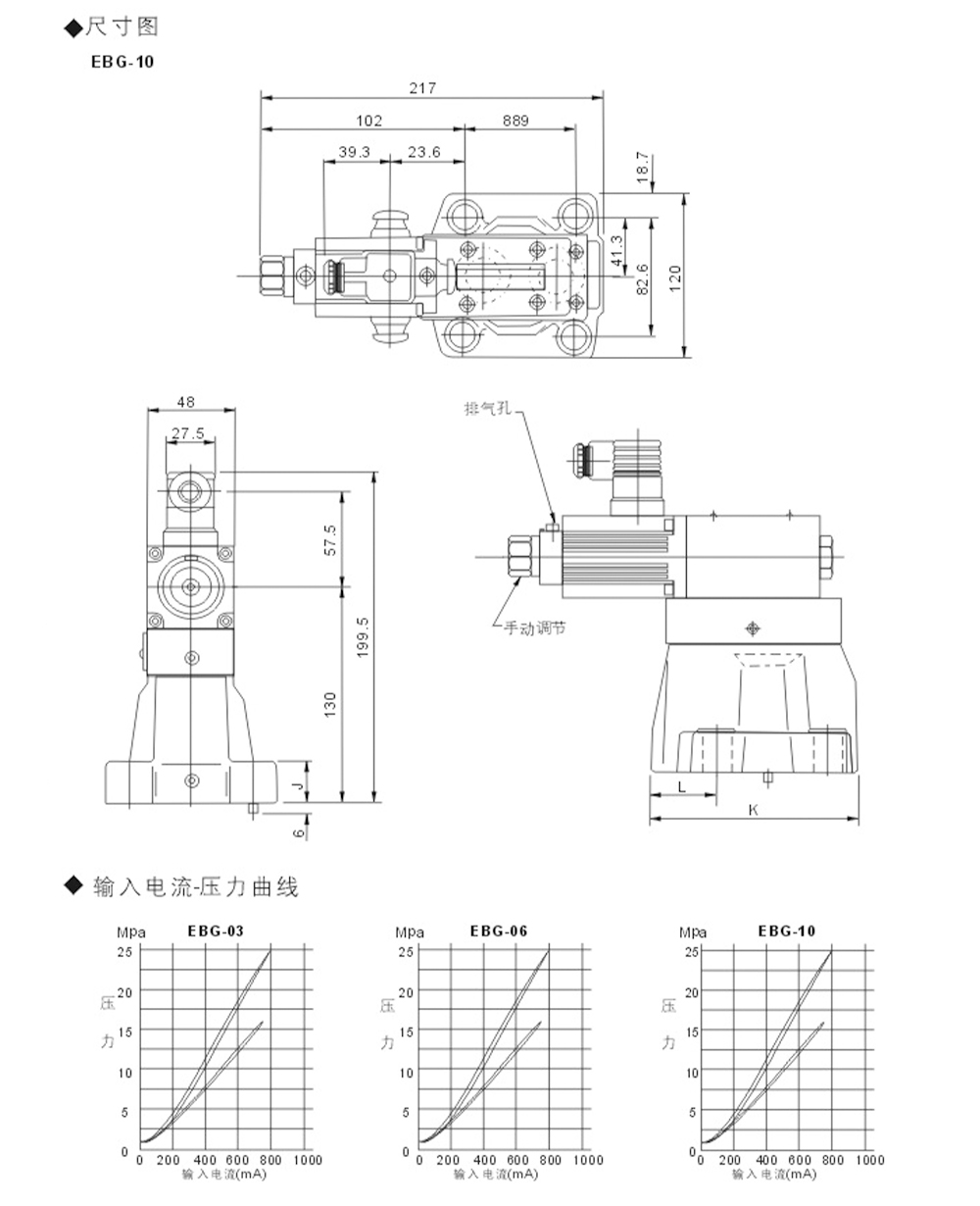

EBG-10 400  C:730H:780 10  <2% 1% 10

xbmgqhbm1787203746

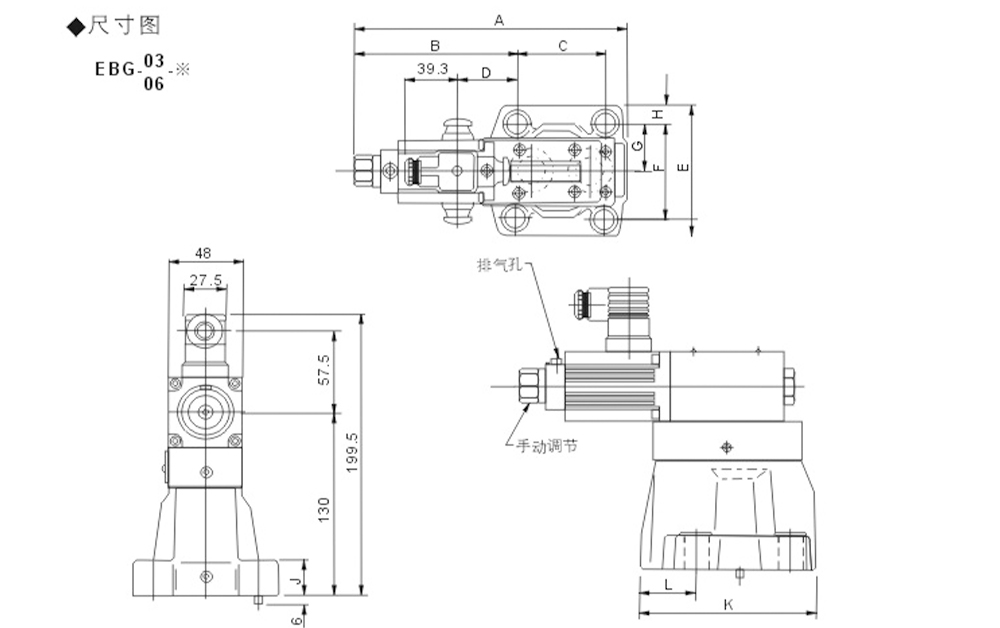

Model A B C D E F G H J K L N
EBG-03 198.5  118.6  53.8  40.2  79  53.8  26.9  11.1  21.5  106  26.1  13.5  21
EBG-06 206.5  120.5  66.7  42.1  99  70  35  14  26  125  36  17.5  26

gqvqfhmn1787203792


OEM / ODM Customization

We provide OEM and ODM services for hydraulic equipment manufacturers, distributors, and system integrators, including:

·Customized pressure control range
·Electrical input and amplifier compatibility adjustment
·Valve configuration according to hydraulic system requirements
·Product labeling and packaging support
·Production based on customer drawings or technical specifications

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is an Electro-Hydraulic Proportional Pilot Relief Valve used for?
An Electro-Hydraulic Proportional Pilot Relief Valve is used to control hydraulic pressure through electrical signals, providing accurate and adjustable pressure regulation for industrial hydraulic systems.

2. What are the advantages of proportional pilot relief valve technology?
The proportional design provides stepless pressure adjustment, stable pressure control, and better integration with automated hydraulic systems compared with traditional pressure control valves.

3. Does this valve require additional control components?
Yes. The valve is designed to work with a power amplifier to achieve electro-hydraulic proportional control.

4. What factors should be considered when selecting this valve?
Important factors include required pressure range, flow rate, electrical control signal, hydraulic circuit design, and application requirements.

5. How can I select the right Electro-Hydraulic Proportional Pilot Relief Valve?
Provide your hydraulic system parameters, including working pressure, flow requirements, control method, and equipment application. Our technical team can help recommend a suitable valve configuration.
