Specific Applications

·CNC machines and machining equipment
·Industrial automation systems
·Hydraulic power units
·Injection molding and forming machines
·Equipment requiring precise actuator control

Core Functions

Proportional Flow and Direction Control
The valve uses proportional solenoid control to adjust spool position according to input signals, allowing smoother control of hydraulic actuator direction and speed.

High Flow Hydraulic Performance
The five-chamber design provides high flow capacity for industrial hydraulic applications. The valve supports a maximum flow rate of 35 L/min.

Fast Response and Low Hysteresis
The polished internal components help reduce hysteresis and improve response performance, supporting applications requiring accurate hydraulic movement control.

Long Service Life Design
The hardened spool and sleeve structure improves wear resistance and supports long-term operation in industrial environments.

Flexible Electrical Integration
The valve adopts a standard ISO 4401 G03 interface and supports connectors compliant with EN 175301-803, making it easier to match different amplifiers and control systems.

Technical Specifications
Specification 02  03
Maximum Operating Pressure Oilporst P, A, B 31.5
Oilporst T 16
Maximum Flow Rate
(L/min)
17  50
Working Fluid Mineral oil phosphate-ester
Fluid temp.(℃) -20~70
Viscosity(m㎡/s) 2.8~100
Hysteresis{%) <5
Linearity(%) <20
Repeatability(%) <2
Coil Resistance(Ω) 19.5
Weight(kg) Two-way valve 1.9  2.6
Three-way valve 3.8  4.5

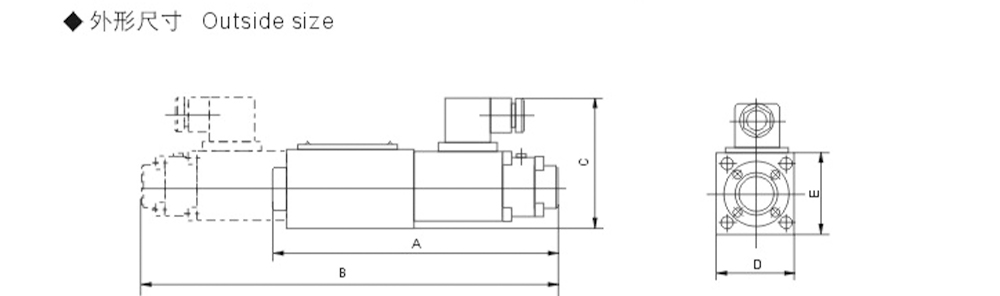

wvokmgvy1787203123

Model A B C D E
BFW-02 172  260  78  48  49
BFW-03 220  320  100  70  70

OEM / ODM Customization

We provide OEM and ODM services for hydraulic equipment manufacturers, distributors, and system integrators, including:

·Customized solenoid specifications and electrical requirements
·Valve configuration adjustment according to hydraulic system design
·Connector and control compatibility customization
·Product labeling and packaging solutions
·Production based on customer drawings or technical specifications

Purchasing Information

Item

Details

MOQ

Standard cartridge valves: 100 pcs/model; Custom manifold blocks: 30 pcs minimum. Small trial orders are accepted.

Lead Time

Stock valves: 2 weeks; Regular orders: 6–8 weeks; Custom products: about 8 weeks after drawing approval and deposit.

Payment Terms

30% T/T deposit, 70% balance before shipment. Sample orders require full payment. L/C is negotiable for long-term customers.

Trade Terms

FOB Ningbo by default. CIF quotations are available upon request.

Sample Policy

Stock samples are available. OEM/ODM samples can be produced based on drawings or samples.

OEM / ODM

Logo engraving, customized packaging, and product customization are supported.

Quality Assurance

Every valve is pressure-tested before shipment and covered by a 12-month warranty.

FAQ

1. What is a Proportional Solenoid Directional Control Valve used for?
A Proportional Solenoid Directional Control Valve is used to control hydraulic actuator direction and speed through proportional electrical signals, providing more precise movement control than standard solenoid valves.

2. What are the main advantages of a proportional directional control valve?
Key advantages include adjustable control, smooth actuator movement, fast response, and compatibility with electronic hydraulic control systems.

3. What pressure and flow requirements should be considered when selecting this valve?
Selection should consider system working pressure, required flow rate, hydraulic circuit design, control signal requirements, and actuator performance requirements.

4. What installation and electrical standards does this valve support?
The valve supports an ISO 4401 G03 mounting interface and EN 175301-803 compliant connectors for easier integration with hydraulic control systems.

5. How can I select the right Proportional Solenoid Directional Control Valve?
Provide your hydraulic system parameters, including pressure, flow rate, control requirements, and equipment application. Our technical team can help recommend a suitable valve configuration.
